Napier Lion

Napier Lion
lmnop88a · CC BY 2.0 · source
Name	Napier Lion

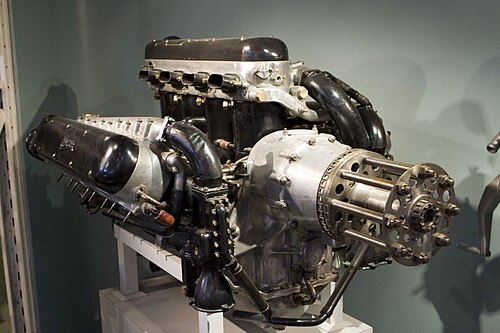

Caption	Napier Lion engine (1920s)
Type	W12 inline piston engine
Developer	D. Napier & Son
First run	1917
Produced	1918–1930s
Cylinders	12 (W or broad arrow layout)
Displacement	24.0 L (approx.)
Power	450–900 hp (variants)

Napier Lion The Napier Lion was a British high-performance aircraft and marine piston engine developed during World War I and influential through the interwar years. It combined compact packaging, high power-to-weight ratio and advanced engineering to power record-breaking air racing, seaplane and naval applications. Designers at D. Napier & Son created a distinctive broad-arrow W12 configuration that shaped several Royal Air Force types, racing floatplanes, and powerboats.

Development and design

The Lion originated at D. Napier & Son in response to Royal Naval Air Service requirements during World War I. Lead engineers adapted concepts from contemporary Sunbeam and Rolls-Royce practice to produce a 12-cylinder broad-arrow layout—three banks of four cylinders sharing a common crankcase—optimizing frontal area for streamlined Supermarine and Fairey installations. Early development benefited from collaboration with A. V. Roe designers and drew on metallurgical advances pioneered at Vickers factories. Cooling challenges were addressed using water jackets and centrifugal pumps similar to systems used by Hispano-Suiza and Liberty L-12 installations. The Lion incorporated high-strength crankshafts and aluminium alloy components influenced by Bristol Aeroplane Company metallurgy. Fuel system and carburation evolved alongside innovations from Shell Oil and Royal Aircraft Factory testing programs.

Variants and technical specifications

Multiple Lion variants ranged in compression, supercharging and bore/stroke changes. Notable series included the Lion I, II and V, and later supercharged Lion VI and VII derivatives developed to meet Air Ministry performance targets. Typical specifications featured a bore and stroke producing roughly 24 L displacement, overhead camshafts per bank, twin magnetos from Lucas and reduction gearing options for marine propellers used by John I. Thornycroft & Company. Power outputs varied from about 450 hp in early marks to over 900 hp in later supercharged racing trims. Technical refinements drew upon research at National Physical Laboratory and trial installations on prototypes by Handley Page, Hawker, and de Havilland.

Applications and installations

The Lion powered a wide array of aircraft and marine craft. In aviation it saw installation in Supermarine S.4, Supermarine S.5, and Supermarine S.6 Schneider Trophy racers, the Fairey Flycatcher, Hawker Horsley, Handley Page Hyderabad, and early de Havilland DH.50 transports. Naval and marine installations included high-speed launches and racing powerboats built by John I. Thornycroft & Company, Power Boats Ltd, and private entries for Harmsworth Trophy contests. Airship and prototype armoured car trials by companies such as Leyland Motors and Armstrong Whitworth also used Lion variants. Civil uses extended to record-breaking flying boats operated by Imperial Airways and private racing commissions from magnates aligned with British Power Boat Company.

Operational history

First run in 1917, the Lion rapidly entered Royal Naval Air Service and Royal Air Force service in post-war years, equipping reconnaissance, bomber and fighter prototypes. Its compact design facilitated streamlined nacelles for Schneider Trophy campaigns organized by the Royal Aero Club and supported interwar colonial policing sorties by RAF Middle East Command. Marine installations saw success in Harmsworth Trophy and coastal patrol launches for the Royal Navy during peacetime trials. Maintenance doctrine and overhaul cycles were influenced by practices at No. 1 Aircraft Depot and workshops associated with Armstrong Siddeley workshops, while export customers included operators in Australia, New Zealand, India, and South Africa.

Performance and records

The Lion contributed to numerous speed and endurance records. Supercharged Lion engines powered Supermarine racers to victories in the Schneider Trophy series and set seaplane speed benchmarks. Marine installations recorded lap records on circuits contested for the Harmsworth Trophy. Aviation records for payload and altitude in light bombers and transports were set by Lion-equipped types during the 1920s; these achievements were publicized by outlets aligned with Royal Aero Club and Flight International. Specific record attempts involved pilots and teams associated with Sir Henry Segrave, John Alcock, and Duncan Campbell in marine contexts, and engineering support from Frank Whittle-era contemporaries in later analytical histories.

Production and manufacturers

Production was led by D. Napier & Son at facilities expanded after World War I, with licensed construction and components supplied by firms including Leyland Motors, Armstrong Whitworth, and Petters for pistons and bearings. Subcontracting networks involved specialist foundries such as Birmingham Small Arms Company and machine shops in the Midlands. Export and assembly partnerships extended to companies in Canada and Australia for local maintenance depots. Production runs peaked in the early 1920s before being curtailed as Rolls-Royce and Bristol alternatives and emerging air-cooled radial designs displaced inline water-cooled units.

Preservation and surviving examples

Surviving Lion engines are preserved in museums and private collections associated with Science Museum, London, National Museum of Flight, Fleet Air Arm Museum, and several maritime museums, including exhibits at Brooklands Museum and Imperial War Museum Duxford. Restored Lions power airworthy or taxiable replicas of de Havilland and Supermarine types at airshows and regattas, maintained by specialist groups linked to Aircraft Restoration Company and volunteer teams from Historic Aircraft Association. Conservation programs coordinate with archives at Royal Aeronautical Society and technical drawings are held in collections formerly belonging to D. Napier & Son and the National Archives.
