Supermarine S.5

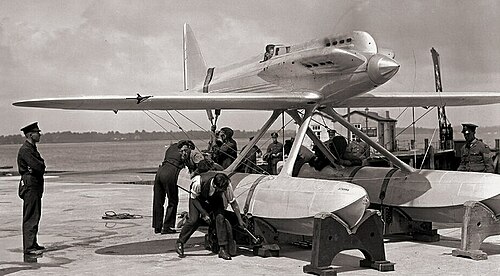

Supermarine S.5
Unknown authorUnknown author · Public domain · source
Name	Supermarine S.5
Role	Racing seaplane
Manufacturer	Supermarine
Designer	R. J. Mitchell
First flight	1927
Primary user	Royal Air Force
Produced	1927–1928

Supermarine S.5 The Supermarine S.5 was a British single-seat racing seaplane developed in the 1920s to compete for the Schneider Trophy. Conceived and produced by Supermarine Aviation Works under the leadership of designer R. J. Mitchell, the S.5 combined aerodynamic innovation with powerful Rolls-Royce propulsion to challenge contemporary designs from Italy, United States, and France. The type helped re-establish British prominence in international air racing and influenced later military designs.

Development and design

Development of the S.5 arose after defeats by Savoia-Marchetti and SIAI entries in early Schneider Trophy contests, prompting Supermarine Aviation Works and engineer R. J. Mitchell to create a purpose-built racer. Funding and interest involved figures and institutions such as Air Ministry officials and patrons within the Royal Air Force, while technological exchange with Napier & Son and Rolls-Royce Limited influenced powerplant selection. The design brief emphasized reduced drag, improved structural integrity, and high-speed floatplane performance for contests hosted near Venice and Naples.

Mitchell applied lessons from earlier designs like the Supermarine S.4 and contemporary forms by Macchi and Short Brothers, adopting a streamlined single-float layout with stabilizing outrigger floats inspired by Felixstowe and Sopwith floatplane practice. Construction used novel materials and techniques promoted by industrial firms including Vickers suppliers and subcontractors in Gloucestershire, integrating laminated wood and metal fastenings to marry stiffness with low weight.

Operational history

The S.5 first flew in 1927 and was entered into the Schneider Trophy contest that year, where it competed against aircraft from Italy (notably Macchi M.52 series) and entrants backed by the National Advisory Committee for Aeronautics. Pilots drawn from RAF and civilian racing circles, including Flying Officer, fielded the S.5 in timed circuit events over maritime courses near Venice and Naples. The type secured victory for Great Britain in 1927, marking a critical reversal after earlier international setbacks.

Following contest success, the S.5s were evaluated by Royal Air Force test pilots and influenced subsequent Supermarine racers that contested the 1929 and 1931 Schneider races. Several airframes underwent rebuilds and modifications under direction of Mitchell and Supermarine engineers, interacting with institutions such as Royal Aircraft Establishment for aerodynamic refinements and with Rolls-Royce for engine adjustments. Operational use remained limited to racing and demonstration flying, with one airframe lost in accidents during intensive high-speed trials.

Technical description

The S.5 was a cantilever monoplane hull floatplane featuring a single central float and two stabilizing wingtip floats, a departure from biplane floatplanes of earlier World War I legacy. The fuselage adapted boat-hull hydrodynamics influenced by designs trialed at Aberporth and evaluated by naval committees. The airframe combined wooden wing structures with metal fittings supplied by Vickers subcontractors and used stressed-skin principles that foreshadowed later Supermarine Spitfire practice.

Power came from a high-performance liquid-cooled Rolls-Royce piston engine driving a fixed-pitch propeller, with cooling systems and cowling geometry optimized through wind tunnel testing at the Royal Aircraft Establishment and industrial facilities in Farnborough. Control surfaces employed balanced ailerons and rudder arrangements developed in consultation with test pilots from Aeroplane Experimental Unit. Fuel system and buoyancy arrangements addressed range and safety needs per Air Ministry sport aviation regulations.

Variants and modifications

Three primary S.5 airframes were constructed; iterative changes focused on engine tuning, float design, and aerodynamic fairings. Modifications included altered cowlings and streamlining revisions inspired by wind tunnel data from National Physical Laboratory and input from R. J. Mitchell’s design office. One airframe received revised floatation gear and strengthened mounts after handling trials arranged with Fairey Aviation workshops, while another was retrofitted with updated propeller pitch settings developed in partnership with de Havilland propeller specialists.

These changes informed the subsequent Supermarine S.6 series, which incorporated larger displacement Rolls-Royce engines and more extensive metal construction. The S.5’s iterative development set a pattern of rapid prototype modification similar to programs run by Italian Air Ministry teams and US Navy racers of the same era.

Performance and records

In competition trim the S.5 achieved top speeds that placed it among the fastest seaplanes of its day, beating contemporary Macchi and Savoia rivals during the 1927 Schneider Trophy contest. The type established new national speed marks and contributed to British prestige in international aviation meets hosted by bodies like the Royal Aero Club and Fédération Aéronautique Internationale. Pilots operating the S.5 recorded peak speeds during timed laps over maritime courses near Naples and Venice, with performance cited by Air Ministry reports and race chronologies.

The S.5’s operational limitations—short endurance and restricted directional control at low speed—nonetheless provided critical empirical data that enabled the S.6 and later Supermarine designs to capture the 1931 Schneider Trophy and influence pre-war fighter development.

Surviving aircraft and legacy

No complete S.5 airframe survives in public museum collections, though components and archival documentation are held by institutions such as Royal Air Force Museum, Science Museum, London, and corporate archives of Rolls-Royce. Drawings, photographs, and Mitchell’s notes are preserved in collections associated with Southampton City Council and University of Southampton special holdings, informing restoration and replica projects undertaken by private enthusiasts and academic historians.

The S.5’s legacy is primarily technological and cultural: it helped refine high-speed seaplane aerodynamics, influenced the lineage that led to the Spitfire, and cemented R. J. Mitchell’s reputation. The aircraft is commemorated in exhibitions about the Schneider Trophy, British aviation milestones, and in scholarship by historians associated with Imperial War Museums and National Maritime Museum. Category:1920s British aircraft
