Nakajima A1N

Nakajima A1N
Unknown authorUnknown author · Public domain · source
Name	A1N

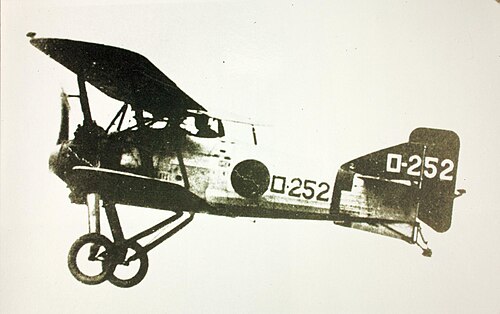

Caption	Nakajima A1N prototype
Type	Carrier-based fighter
Manufacturer	Nakajima Aircraft Company
First flight	1929
Introduced	1929
Retired	1936
Primary user	Imperial Japanese Navy
Number built	~150

Nakajima A1N The Nakajima A1N was a carrier-based biplane fighter used by the Imperial Japanese Navy during the late 1920s and early 1930s. Built under license from the Gloster Gamecock design, the A1N served aboard aircraft carriers such as Hōshō and in operations connected with the Second Sino-Japanese War. It played a role in naval aviation development alongside contemporaries like the Mitsubishi B1M and influenced later designs by Nakajima Aircraft Company.

Design and Development

Nakajima obtained a license to produce the British Gloster Aircraft Company's Gamecock airframe for the Imperial Japanese Navy requirement for a carrier fighter, joining a lineage that included the Gloster Grebe and Gloster Sparrowhawk. The company, led by engineers influenced by figures such as Chikuhei Nakajima and in the corporate context of the Nippon Aircraft Manufacturing" era, adapted the Gamecock's unequal-span biplane layout, welded steel tube fuselage, and wooden wings to Japanese production standards. Powerplant choices reflected domestic and foreign engine development, with the A1N typically fitted with the license-built Bristol Jupiter radial derivative produced under Japanese arrangements.

Structural modifications addressed carrier operation needs developed in dialogue with Imperial Japanese Navy Air Service requirements, including arrestor hook trials influenced by carrier operations on Hōshō. Nakajima's adaptations included revised empennage surfaces and strengthened undercarriage to cope with deck landings tested at Mutsuki-class destroyer trials and during deployments near bases such as Kure Naval District. The design work coincided with contemporaneous developments in naval aviation elsewhere, including Royal Navy and United States Navy carrier practices, prompting comparative assessment of flotation gear, folding mechanisms, and armament arrangements.

Operational History

The A1N entered service with the Imperial Japanese Navy in 1929 and was deployed aboard carriers and shore units during a period of expanding Japanese maritime operations. Squadrons equipped with the type operated from carriers like Hōshō and participated in patrols and fleet exercises alongside reconnaissance aircraft such as the Mitsubishi 2MR and torpedo bombers like the Nakajima B3N. The A1N saw combat in the early stages of the Second Sino-Japanese War, engaging Chinese National Revolutionary Army aerial assets and defending seaplane tenders and capital ships.

A1N pilots included officers trained at Kasumigaura Naval Air Station and graduates of Naval Academy Etajima aviation programs who executed deck-landing procedures refined with guidance from Lieutenant Commander-level carrier flight training doctrines. In fleet maneuvers, the A1N was paired in formations with types such as the Kawasaki Type 88 and later compared with Mitsubishi A5M trials. Operational limitations—such as range and increasing obsolescence against monoplanes fielded by rivals like the Soviet Air Force and later Chinese acquisitions—led to its replacement by more modern fighters in the mid-1930s. Nevertheless, the A1N contributed to doctrine development that informed carrier fighter tactics used in engagements leading up to the Pacific War.

Variants

- A1N1: Initial license-built production version based closely on the Gloster Gamecock specifications, powered by Japanese-built Bristol Jupiter variants and armed with synchronized machine guns. - A1N2: Improved production batch featuring structural reinforcements, modified tail surfaces, and equipment changes to improve carrier suitability; iterative changes mirrored enhancements in Royal Navy carrier practice. - Prototype/Gamecock conversions: Early prototypes and pre-production conversions retained more of the original Gloster fittings and were used for evaluation by Imperial Japanese Navy Air Service personnel.

Operators

- Imperial Japanese Navy — primary operator; deployed on carriers including Hōshō and shore units from naval districts such as Kure Naval District and Yokosuka Naval District. - Coastal naval aviation units associated with the Combined Fleet conducted trials and patrols during peacetime fleet exercises.

Specifications

General characteristics - Crew: 1 (pilot trained at Kasumigaura Naval Air Station) - Length: ~7.65 m (25.1 ft) - Wingspan: ~11.15 m (36.6 ft) - Height: ~3.05 m (10.0 ft) - Powerplant: 1 × license-built Bristol Jupiter radial engine, ~420–480 hp depending on mark

Performance - Maximum speed: ~240 km/h (150 mph) at sea level - Range: ~700 km (435 mi) ferry; combat radius reduced for carrier operations typical of Imperial Japanese Navy doctrine - Service ceiling: ~8,500 m (27,900 ft)

Armament - Guns: 2 × synchronized machine guns (Japanese-built versions of Vickers pattern armament) - Hardpoints: none routinely fitted; limited provision for light bombs for shore-attack trials during Second Sino-Japanese War operations

Surviving Aircraft and Replicas

No original A1N airframes are known to survive intact in museum collections; a handful of wrecks and parts recovered from interwar crash sites have been studied by historians at institutions such as the National Museum of Nature and Science (Tokyo) and aviation archives associated with Yokohama Archives of History. Replicas and full-scale reproductions have been constructed by enthusiast groups and are displayed at airshows and museums focused on Japanese aviation history, where they are used to interpret carrier aviation development for visitors tracing links to later types including the Mitsubishi A6M and Nakajima B5N.
