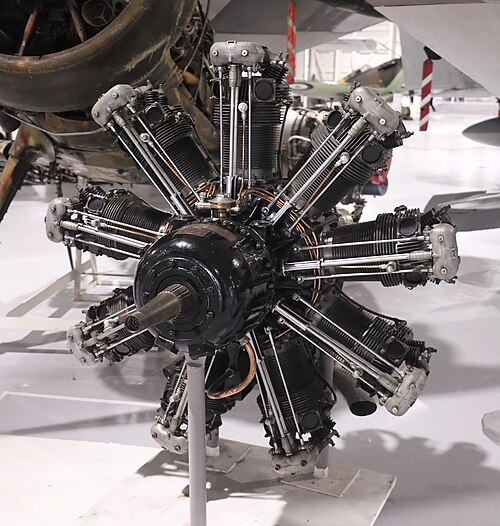

Nimbus227 · CC BY-SA 4.0 · source
Name	Bristol Jupiter
Type	nine-cylinder air-cooled radial
First run	1918 prototype
Designer	Roy Fedden
Manufacturer	Bristol Aeroplane Company
Applications	Airco DH.10 Amiens, Avro 504N, Fairey Flycatcher, Hawker Hart
Power	400–600 hp (various marks)

Bristol Jupiter

The Bristol Jupiter was a nine-cylinder air-cooled radial aircraft engine developed in the immediate post-World War I era by the Bristol Aeroplane Company under chief designer Roy Fedden. It became one of the most significant interwar powerplants, powering a wide range of Royal Air Force and international types and influencing radial engine practice at Société Nationale de Construction Aéronautique du Nord, Pratt & Whitney, and other manufacturers. The Jupiter combined advances in metallurgy, supercharger design, and valve gear that produced reliable performance for civil and military aviation during the 1920s and 1930s.

Development and Design

Development began with the experimental Bristol-built 1918 engines to meet post-Armistice of 11 November 1918 aviation needs. Under Fedden the design emphasized an aluminum crankcase, forged steel crankshaft, and individually cast cylinders with integral cooling fins derived from earlier Bristol Jupiter IV experiments. Early design work incorporated improvements influenced by trials with the Le Rhône and Salmson rotary and radial engines; lessons learned during the Battle of the Somme air operations informed considerations of durability and field maintenance. The adoption of a geared supercharger introduced higher altitude capability, addressing requirements set by Royal Aircraft Establishment flight testing and competing designs from Hispano-Suiza and Rolls-Royce.

Design refinements included wet-sump lubrication, dual ignition magnetos from Lucas Industries and detachable cylinder heads for accessibility. The engine used a single-stage single-speed centrifugal supercharger in later marks to maintain power at higher altitudes sought by Air Ministry specifications. Cooling fin geometry and valve timing were iteratively improved through bench testing at Filton and service trials with No. XX Squadron RAF units.

Variants

The Jupiter family spawned numerous marks and licensed derivatives. Major Bristol-produced variants addressed compression ratio, supercharging and gearing changes to meet demands from Airco, Avro, and Handley Page. Licensed versions were built by Gnome et Rhône in France, Wright Aeronautical and Pratt & Whitney in United States, Nakajima in Japan, and Fiat in Italy, resulting in models with local designation changes and adaptations to metric fasteners and local fuels. Notable licensed derivatives included the Gnome-Rhône 9A series, Wright's adaptations used in early Boeing transports, and Nakajima implementations for Imperial Japanese Navy reconnaissance types. Experimental sub-variants tested two-speed superchargers and different reduction gear ratios for naval and long-range reconnaissance use.

Operational History

The engine entered service in the early 1920s powering aircraft such as the Airco DH.10 Amiens conversions, the Avro 504N trainer, and contemporary Fairey Flycatcher naval fighter. It saw extensive RAF use across biplane types including the Hawker Hart family and played roles in colonial policing and showpiece long-distance flights that featured Imperial Airways and Royal Air Force squadrons. Internationally, the engine equipped civil transports operated by airlines like KLM on European routes and powered military types in France, Italy, Japan, Belgium, and Portugal.

The Jupiter proved reliable in harsh climates during operations in Iraq and North Africa—the engine’s air cooling reduced vulnerability compared to liquid-cooled rivals like Rolls-Royce Eagle derivatives. It also supported pioneering altitude and endurance records attempted by crews associated with Royal Aero Club sponsorship. During the 1930s many Jupiters were gradually replaced by higher-power types such as the Bristol Pegasus and Pratt & Whitney Wasp families, but licensed production and overhaul facilities kept variants in service into the late 1930s and, in some civil applications, into the early World War II period.

Technical Specifications

Typical specifications for a mid-period mark included nine air-cooled cylinders in single-row radial arrangement, displacement around 28–30 litres, and power ratings between 400 and 600 horsepower depending on compression ratio and supercharger configuration. The engine featured an aluminum crankcase, forged steel crankshaft with multiple main bearings, and detachable alloy cylinder heads with individual valve seats. Ignition was provided by twin magnetos with dual spark plugs per cylinder supplied by Lucas Industries, and carburetion was by a float-type unit with mixture control suitable for altitude compensation. Dry weight varied by mark and accessories but was typically in the range of 600–800 pounds. Propeller drive used direct-drive or reduction gearing in some marks to match contemporary wooden and early metal propellers used by Handley Page and Fairey types.

Manufacturing and Licensing

Bristol manufactured engines at its Filton works and contracted production to firms including Weybridge suppliers and component manufacturers in the west of England. Licensing agreements proliferated: Gnome et Rhône produced large numbers for the French Air Force, Wright Aeronautical produced licensed units in the United States for civil customers, and Nakajima manufactured Jupiters under license for Imperial Japanese Army Air Service and Imperial Japanese Navy Air Service projects. These agreements often included technology transfer clauses, training for local technicians, and supply of detailed blueprints from Bristol Aeroplane Company engineers.

Commercial overhaul and spares networks developed around Royal Air Force depots and civilian repair shops in Berlin, Lisbon, and Amsterdam, supporting long-term operations and adaptations to local fuels and operating conditions.

Legacy and Influence

The Jupiter’s combination of reliability, ease of maintenance, and scalable power made it a benchmark for radial engine design and a direct influence on later Bristol engines like the Pegasus and indirectly on Pratt & Whitney development paths. The licensing spread advanced radial technology across Europe, the United States, and Asia, accelerating skill transfer to firms such as Gnome et Rhône and Nakajima that later became major engine manufacturers. Its operational record informed airframe-engine integration practices at manufacturers including Hawker, Handley Page, and Fairey, and lessons from Jupiter service influenced Air Ministry procurement strategies leading up to World War II. The engine remains a subject of preservation interest among museums associated with Science Museum, London and Royal Air Force Museum collections and in heritage flying with restoration groups at Duxford and other historic aviation sites.
