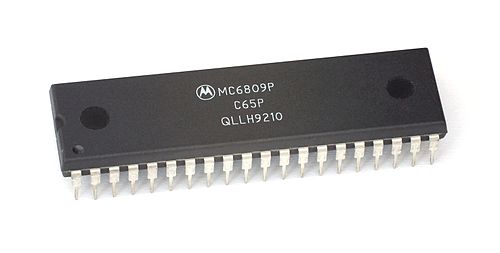

Motorola 6809

Motorola 6809
Konstantin Lanzet · CC BY-SA 3.0 · source
Name	Motorola 6809
Type	8-bit microprocessor with 16-bit address bus
Designer	Motorola Semiconductor
Introduced	1978
Clock	1–2 MHz (typical), up to 3 MHz (later)
Data width	8-bit
Address width	16-bit
Architecture	CISC
Transistors	~7,500

Motorola 6809 The Motorola 6809 is an 8-bit microprocessor introduced by Motorola Semiconductor in 1978, notable for advanced features that influenced later Intel and Hitachi designs. It combined high-level language support, rich addressing modes, and orthogonal instruction encoding, making it popular in embedded systems and personal computers of the late 1970s and early 1980s. The CPU found use in diverse products from Sirius Systems Technology peripherals to TRS-80 and arcade hardware, and it inspired compatible designs and academic study in computer architecture.

Overview and Development

Development of the 6809 was led within Motorola as a successor to the earlier Motorola 6800 family, produced during an era of rapid microprocessor innovation that included competitors such as Intel 8080, MOS Technology 6502, Zilog Z80, and National Semiconductor chips. Design goals emphasized orthogonality, improved index and stack handling, and support for high-level languages such as C (programming language), Pascal (programming language), and FORTRAN. The project intersected with semiconductor manufacturing advances at facilities akin to those run by Texas Instruments and Fairchild Semiconductor, and it reflected industry trends seen in products from Western Digital and Advanced Micro Devices. Release coincided with important computing milestones like the launch of the Apple II, the rise of Commodore systems, and the expansion of microcomputers into business and consumer markets.

Architecture and Microarchitecture

The 6809 implements an 8-bit data path with a 16-bit address bus, featuring general-purpose registers and two 16-bit index registers inspired by prior designs from Motorola and contemporaries like Hewlett-Packard. Architectural highlights include two stack pointers, two accumulators that can be concatenated into a 16-bit register, and a dedicated direct page register facilitating zero-page-like addressing reminiscent of the MOS Technology 6502's zero page. Microarchitectural techniques in the 6809 echoed approaches used by Intel, Zilog, and Motorola teams to balance transistor budget, clocking, and instruction timing. The chip employed a single-chip NMOS process similar to those used at Intel Corporation fabs and rival foundries, with microcode and bus arbitration strategies comparable to designs from Fairchild Semiconductor and RCA.

Instruction Set and Addressing Modes

The 6809's instruction set is notable for orthogonality and rich addressing modes that supported register, immediate, direct, indexed, and extended accesses; this repertoire invited comparisons to instruction encodings from Zilog Z80 and influenced assemblers used on systems like TRS-80 Color Computer. Complex addressing included auto-increment/decrement, indirect indexing, and indexed offsets, paralleling features found in the instruction sets of PDP-11 minicomputers and influencing later microcontrollers from Hitachi and Motorola's own 68000 series. Instructions were designed for structured programming and efficient compiled code for languages like BASIC, C (programming language), and FORTRAN (programming language), and debuggers and assemblers from vendors such as Microsoft and Atari incorporated support for 6809 assembly syntax and directives.

Peripherals and System Integration

Systems built around the 6809 often paired it with peripheral ICs and support chips from vendors such as Motorola Semiconductor itself, Western Digital, Intel, and Mostek. Common integrations included programmable peripheral interfaces comparable to Intel 8255-style devices, UARTs for serial I/O akin to National Semiconductor offerings, and DMA controllers and timers used in platforms from Sega and Atari. Memory management in 6809 systems sometimes used bank switching techniques employed by contemporaries like Commodore and Apple Computer to overcome 16-bit address limits, and system designs interfaced with storage hardware from companies such as Shugart Associates and Seagate.

Performance, Variants, and Clones

Relative performance placed the 6809 ahead of many 8-bit contemporaries on code density and compiled-language efficiency, though raw clocked throughput was comparable to chips such as the MOS Technology 6502 and Zilog Z80. Variants and derivatives included NMOS and CMOS implementations produced by Motorola and second-source manufacturers in regions influenced by firms like Rockwell Semiconductor and RCA. Compatible and clone processors appeared in international markets, with designs influenced by the 6809 showing up in products from Hitachi, NEC, and smaller semiconductor houses. Academic and commercial benchmarking compared the 6809 to microprocessors from Intel, Zilog, MOS Technology, and Motorola’s own 68000 lineage, and comparisons featured in trade publications distributed by firms like Byte Magazine and Electronic Design.

Applications and Use in Computing History

The 6809 served in a wide array of applications: home computers such as models from Tandy Corporation and third-party manufacturers, gaming and arcade systems produced by Sega and Namco, telecommunications equipment from vendors like Northern Telecom, and embedded control in industrial systems by companies including GE and Siemens. Academic use included teaching in university courses alongside machines from DEC and IBM, and the architecture influenced later microprocessor curricula and textbooks published by authors associated with MIT Press and Addison-Wesley. The chip's design principles resonated in subsequent architectures from Motorola and competitors, leaving a legacy visible in later families such as the Motorola 68000 and in the instruction-set design of processors produced by Hitachi and NEC.
