Lockheed LC-130

Lockheed LC-130
Mike Freer - Touchdown-aviation · GFDL 1.2 · source
Name	Lockheed LC-130

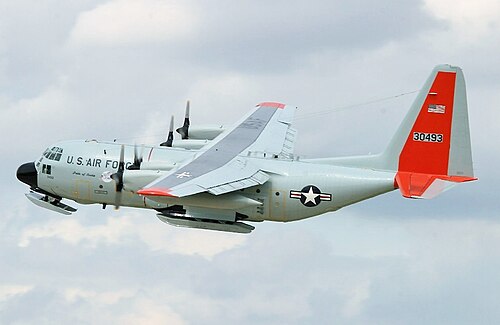

Caption	LC-130 ski-equipped Hercules variant
Type	Ski-equipped transport aircraft
Manufacturer	Lockheed
First flight	1956 (prototype C-130)
Introduced	1956 (civil/military service)
Status	Active with select operators

Lockheed LC-130. The Lockheed LC-130 is a ski-equipped derivative of the Lockheed C-130 Hercules developed for polar operations and logistics. Designed to operate from snow and ice, the LC-130 has supported scientific, exploratory, and military missions across Antarctica, the Arctic, and remote polar stations, enabling resupply, personnel transport, and search-and-rescue with unique ski-landing capability.

Design and Development

The LC-130 traces to the Lockheed C-130 Hercules family conceived in the early 1950s by Willis Hawkins and Kelly Johnson at Lockheed to meet a requirement from the United States Air Force for a tactical airlifter. Modifications undertaken by Lockheed and subcontractors included addition of retractable skis, strengthened landing gear, corrosion protection for polar climates, and auxiliary fuel systems influenced by developments in aerial refueling and long-range logistics. Structural adaptations drew on knowledge from prior ski-equipped aircraft projects and lessons from Operation Deep Freeze operations. Prototypes and conversions were completed at facilities associated with Burbank, California, Marietta, Georgia, and Palmdale, California production lines, integrating turboprop engines such as the Allison T56 series to provide power for cold-start and short-field performance.

Operational History

LC-130s entered service supporting Operation Deep Freeze logistics to McMurdo Station, Amundsen–Scott South Pole Station, and remote field camps during the International Geophysical Year aftermath and ongoing Antarctic programs. The type became integral to programs run by the United States Antarctic Program, National Science Foundation, and allied national programs from New Zealand and Norway bases. LC-130 operations extended to Arctic deployments supporting missions in Greenland, Svalbard, and Canadian Arctic research facilitated by coordination with Royal Canadian Air Force and Arctic science institutions. The aircraft has participated in polar search-and-rescue, aeromedical evacuation, and support for scientific campaigns such as glaciology and seismology fieldwork, often operating from ice runways prepared on glaciers and frozen sea ice near stations like Rothera Research Station and Palmer Station.

Variants

Multiple LC-130 conversions and upgrades exist across the Hercules family lineage. Early ski-equipped conversions derived from the Lockheed C-130A Hercules and Lockheed C-130E Hercules airframes incorporated retractable skis and environment-specific avionics. Subsequent remanufactures paralleled the Lockheed C-130H Hercules standard, featuring updated avionics suites, strengthened wing structures, and improved T56 engine variants. Specialized mission equipment packages enabled scientific support, including internal cargo handling systems shared with C-130J Super Hercules modernization concepts. Internationally, modified Hercules derivatives addressed polar roles within allied fleets and civil research organizations.

Specifications

Typical ski-equipped LC-130 specifications vary by base airframe and upgrade package; representative figures based on C-130H derivatives include: - Crew: flight crew plus loadmasters drawn from United States Air Force and contractor organizations. - Powerplant: four Allison T56 turboprop engines. - Maximum payload and range: configured for heavy cargo and extended-range ferry operations with auxiliary tanks supporting transpolar legs to stations such as McMurdo Station. - Landing gear: reinforced with retractable skis to operate on compacted snow and ice runways used at Antarctic research stations. - Avionics: mission radios and navigation suites adapted for polar navigation referencing systems employed by National Oceanic and Atmospheric Administration and military polar operations.

Operators and Bases

Primary operators historically include the 109th Airlift Wing of the New York Air National Guard and United States Air Force components assigned to Antarctic logistics missions, supported by civilian contractors under National Science Foundation contracts. International cooperative operations have involved logistics coordination with New Zealand Defence Force through Christchurch, as well as collaborative support to British Antarctic Survey facilities like Rothera Research Station. Home bases and forward operating points have included airfields at Pittsburgh International Airport for maintenance and polar staging at Christchurch International Airport, McMurdo Station's Phoenix Airfield, and temporary ice runways established in coordination with station operators and scientific program managers.

Incidents and Accidents

LC-130 operations in extreme environments have led to a number of notable incidents, including runway excursions and damage from sudden climate events while operating on ice runways near McMurdo Station and remote Antarctic camps. Recovery and repair efforts often involved complex salvage operations and international assistance from programs such as Operation Deep Freeze and logistics coordination with Antarctic treaty consultative parties including New Zealand and United Kingdom field teams. These incidents informed subsequent airframe modifications, winterization procedures, and operational safety practices adopted by polar aviation authorities and research program administrators.
