| Ivy Bridge (microarchitecture) | |
|---|---|

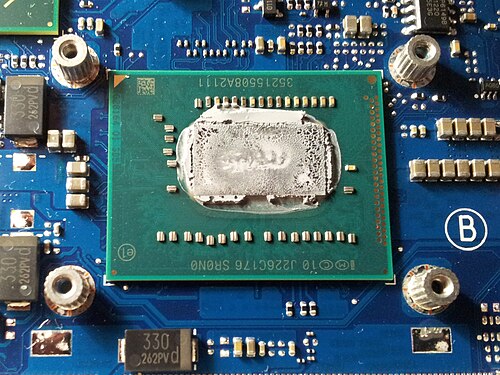

.jpg) Köf3 · CC BY-SA 3.0 · source | |
| Name | Ivy Bridge |
| Designer | Intel Corporation |
| Architecture | x86-64 |
| Microarchitecture | Ivy Bridge |
| Released | 2012 |
| Process | 22 nm |
| Predecessor | Sandy Bridge |
| Successor | Haswell |
Ivy Bridge (microarchitecture) Ivy Bridge is a 2012 Intel Corporation microarchitecture implementing the x86-64 instruction set, positioned as the die-shrink and optimization of Sandy Bridge and forming the basis for client, mobile, and server microprocessor products. It introduced a 22 nm semiconductor process, updated graphics, and power-management features while maintaining compatibility with platforms compatible with earlier Sandy Bridge families. Ivy Bridge served in consumer personal computers, enterprise servers, and mobile devices, influencing designs from major OEMs such as Dell, HP Inc., and Apple Inc..
Design and Architecture
Ivy Bridge preserved core pipeline topology from Sandy Bridge while integrating enhancements to the Intel 64 execution engine and x86 decode stages to support improved instruction throughput. The design expanded the integrated graphics execution units derived from the Intel HD Graphics line and introduced hardware changes to the Intel Quick Sync Video media engine, benefiting applications developed by studios and companies using Adobe Systems tools and Autodesk software. The architecture featured increased use of tri-gate transistor arrangements, coherent cache hierarchies with unified L3 cache shared among cores, and refinements to the branch prediction structures employed in prior designs used by Microsoft-targeted workloads and Red Hat-based Linux distributions. Ivy Bridge maintained socket compatibility with platforms designed for LGA 1155 and supported memory controllers aligned with DDR3 SDRAM specifications adopted by vendors like Kingston Technology and Crucial.
Manufacturing and Process Technology
Ivy Bridge marked Intel’s transition from planar to 3D transistor geometry via FinFET-style tri-gate transistor technology implemented on a 22 nm silicon node fabricated in fabs owned by Intel Corporation in locations including the Intel D1X facility near Hillsboro, Oregon and production centers in Ireland and Israel. The 22 nm process involved aggressive photolithography and immersion techniques similar to those used at TSMC and Samsung Electronics for other nodes in the industry, influencing supply chain partners including ASML Holding for lithography equipment. This process shrink reduced gate leakage relative to 32 nm nodes, affecting yield profiles and binning strategies adopted by partners such as Foxconn and Quanta Computer.
Processor Models and Product Lines
Ivy Bridge was offered across multiple market segments under model families including desktop Core i3/Core i5/Core i7, mobile Intel Core M-adjacent SKUs, and server-grade Xeon parts marketed to enterprises like Amazon Web Services and IBM for cloud and data-center deployments. Consumer notebooks from Lenovo and Acer integrated ULV Ivy Bridge chips, while all-in-one systems from Apple Inc. and desktop platforms from Dell used higher-TDP variants. OEMs and channel partners employed Ivy Bridge derivatives in branded product lines such as MacBook Pro (Retina, 2012), various ThinkPad models, and workstation offerings by Hewlett-Packard with ISV certification from Autodesk and Dassault Systèmes.
Performance and Power Efficiency
Ivy Bridge delivered modest single-thread and multi-thread performance improvements over Sandy Bridge through higher clock ceilings and microarchitectural tweaks, influencing benchmark results reported by outlets such as AnandTech and Tom's Hardware. Integrated graphics performance saw larger relative gains due to increased execution units and updated shaders, impacting media playback and gaming support for titles published by Electronic Arts and Valve when run on systems from ASUS and MSI. Power efficiency improved via reduced leakage and enhanced idle states, benefiting battery life in ultraportable products competing with ARM Holdings-based platforms and informing design choices for thin-and-light laptops produced by Samsung Electronics and Lenovo.
Security Features and Vulnerabilities
Ivy Bridge incorporated microarchitectural mitigations and features relevant to Intel's platform security roadmap, including support for privileged instruction controls and improved Trusted Execution Technology interfaces used by vendors such as VMware and Citrix Systems. Subsequent years revealed classes of speculative execution vulnerabilities affecting Ivy Bridge-family CPUs similar to issues reported across x86-64 ecosystems, prompting microcode updates coordinated with partners like Red Hat and firmware updates from motherboard manufacturers including ASRock and Gigabyte Technology. Mitigations for such vulnerabilities balanced performance impact against security, influencing enterprise patch adoption at organizations like NASA and Bank of America.
Market Reception and Legacy
Ivy Bridge was generally received as a pragmatic, energy-efficient generational update, praised in reviews by outlets such as PCWorld and CNET for improved graphics and reduced power draw while criticized by some industry analysts at firms like Gartner and IDC for limited IPC growth relative to prior generations. Its die-shrink strategy informed Intel’s subsequent roadmap culminating in Haswell (microarchitecture) and influenced competition with AMD's Bulldozer and later Zen families. Legacy outcomes include long-term deployment in corporate fleets managed by Microsoft Corporation’s enterprise customers and continued use in embedded applications by companies such as Siemens and GE.
