GG1

GG1

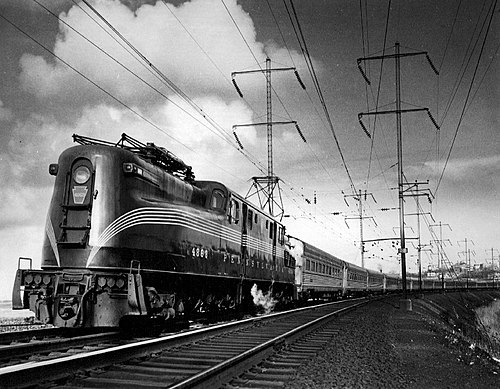

Association of American Railroads (railroad trade organization)-photo is from th · Public domain · source
Name	GG1
Powertype	Electric
Builder	General Electric
Builddate	1934–1943
Totalproduction	139
Wheeldiameter	40 in (1,016 mm)
Wheelarrangement	2-C+C-2 (Whyte notation)
Length	79 ft 6 in (24.2 m)
Locoweight	477,000 lb (216,000 kg)
Electricsystem	11 kV 25 Hz AC Overhead line
Collectionmethod	Pantograph
Poweroutput	4,620 hp (3,447 kW)
Operator	Pennsylvania Railroad, Penn Central Transportation Company, Conrail, Amtrak
Retiredate	1983 (last in revenue service)

GG1

The GG1 was a class of electric locomotive developed for the Pennsylvania Railroad and later operated by Penn Central Transportation Company, Conrail, and Amtrak. Designed in the 1930s, the type became an iconic presence on the Northeast Corridor, hauling passenger trains and freight trains between major terminals such as Penn Station (New York City), Union Station (Washington, D.C.), and 30th Street Station. Its long service life connected the GG1 with infrastructure projects like the Electrification of the Pennsylvania Railroad and events including the expansion of Northeast Corridor (Amtrak) electrification.

Design and Construction

The GG1 emerged from a collaboration among General Electric, Westinghouse Electric Corporation, and the Pennsylvania Railroad engineering staff, following earlier experiments with prototypes such as the P5a and R1. Original styling work involved industrial designer Raymond Loewy, who influenced the locomotive's welded body and streamlined appearance seen on contemporaries like the Hudson (locomotive) and the GG1 electric locomotive conceptual designs. Construction took place at General Electric's Erie works and assembly at Philadelphia's PRR Altoona Works and other manufacturing facilities affiliated with Baldwin Locomotive Works for components. The GG1's riveted heritage gave way to welded fabrication influenced by developments from World War I shipbuilding and later by standards adopted at American Locomotive Company plants.

The wheel arrangement and frame followed practices established by Class EM1 and Class EP electrics, while traction motors and control equipment came from Westinghouse and General Electric inventories used on Interborough Rapid Transit and New York City Subway rolling stock. The design incorporated bogies patterned on Pennsylvania Railroad GG predecessors, adapting suspension and articulation similar to British Rail electric designs imported through technical exchanges with companies like English Electric.

Technical Specifications

Powered by 11 kV 25 Hz AC from overhead lines, current collection was via dual pantographs compatible with catenary installations on the Northeast Corridor and Keystone Corridor. The GG1 used twelve 385 hp traction motors arranged to provide a combined output around 4,620 hp, employing transformers and rectifier technology developed in collaboration with Westinghouse Electric Corporation and General Electric Company. Braking systems incorporated both air brakes standardized by Westinghouse Brake & Signal Company and dynamic braking elements influenced by experiments with General Motors Electro-Motive Division diesel-electric units.

Mechanical features included a 2-C+C-2 wheel arrangement providing stability at high speeds and reduced track wear, using bogies with swing hangers similar to designs by ALCO and Baldwin. The GG1's body used a continuous welded shell with a low center of gravity and an articulated frame for curve negotiation on routes serving Grand Central Terminal approaches and approaches to Baltimore Penn Station. Electrical control systems permitted multiple-unit operation compatible with later classes used by Amtrak and Conrail.

Service History

Introduced in revenue service during the late 1930s, the fleet operated flagship PRR trains such as the Broadway Limited, Congressional Limited, and Federal Express between New York City, Philadelphia, Baltimore, and Washington, D.C.. During World War II, GG1 units supported increased traffic on the Northeast Corridor and wartime movement to ports like South Amboy and Newark yards, interacting with Army Transportation Corps logistics. Postwar, the locomotives continued under Penn Central Transportation Company after the 1968 merger, enduring the 1970s reorganizations that produced Conrail and the creation of Amtrak in 1971.

Over their operational life, many GG1s received upgrades such as improved insulation, rebuilt transformers from General Electric shops, and modernized control gear influenced by research at Massachusetts Institute of Technology and standards from the Association of American Railroads. Accidents and incidents involved collisions at locations including Harrisburg, Pennsylvania and mechanical failures investigated by the National Transportation Safety Board. Final revenue service ended in 1983 when electrification fleet renewals and procurement of classes like the AEM-7 replaced them.

Preservation and Legacy

Several examples were preserved by institutions including the Smithsonian Institution, Railroad Museum of Pennsylvania, National Railroad Museum, B&O Railroad Museum, Baltimore and Ohio Railroad Museum, and municipal collections such as the Philadelphia Museum of Art display programs. Restoration projects involved volunteer groups affiliated with National Railway Historical Society chapters and preservation workshops at sites like Steamtown National Historic Site. Surviving units, such as those displayed near 30th Street Station and at Union Station (Washington, D.C.), underwent cosmetic and mechanical stabilization with consultancy from former PRR engineers and firms like Alstom and Siemens on heritage work.

The GG1 influenced later electric locomotive procurement policies at Amtrak and informed international visitors from British Rail and Deutsche Bahn during exchange visits. Its welded-body construction and powertrain layout appeared in subsequent designs such as early electric locomotives by ASEA and MÁV adaptations, leaving a technical legacy recognized by awards from organizations like the Railway & Locomotive Historical Society.

Cultural Impact and Media Appearances

The locomotive became a cultural icon featured in period photography collections at the Library of Congress, in paintings by Edward Hopper-era commentators, and on postage commemoratives by the United States Postal Service. GG1 units appeared in films and television series set in the mid-20th century, including productions filmed in New York City and Washington, D.C. locations, and were photographed for advertisements by General Electric and Pennsylvania Railroad marketing campaigns. Model manufacturers such as Lionel Corporation, Bachmann, and MTH Electric Trains produced scale replicas for collectors and museums, while enthusiasts from clubs like the Model Railroad Club of New York and publications such as Railfan & Railroad chronicled restoration efforts.

Preservation celebrations and centennial exhibitions involved partners like the National Trust for Historic Preservation and academic programs at University of Pennsylvania and Princeton University examining industrial design legacies. The GG1's silhouette remains recognizable in memorabilia sold through venues including Independence Hall museum shops and in digital archives maintained by the Hagley Museum and Library.

Category:Electric locomotives of the United States Category:Pennsylvania Railroad locomotives
