AEM-7

AEM-7
Roger Puta · Public domain · source
Name	AEM-7
Powertype	Electric

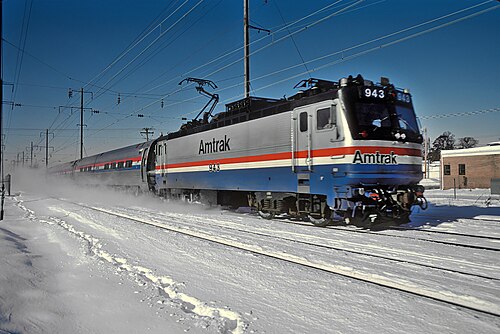

Caption	AEM-7 at Washington Union Station
Builder	General Electric / ASEA
Builddate	1978–1988
Totalproduction	54
Length	18.5 m
Electricsystem	12.5 kV 25 Hz AC / 11 kV 25 Hz AC
Transmission	AC to DC
Maxspeed	125 mph
Tractiveeffort	57,000 lbf
Operator	Amtrak, MARC, NJ Transit
Disposition	Retired, preserved

AEM-7 is a class of electric passenger locomotives introduced in the late 1970s for high-speed intercity service on Northeastern United States electrified routes. Designed through a collaboration between General Electric and Swedish manufacturer ASEA, the fleet became a mainstay for operators including Amtrak, NJ Transit, and MARC on corridors linking New York City, Philadelphia, Washington, D.C., and Boston. Noted for reliability and compatibility with multiple electrification standards, the class influenced later procurements such as the Siemens ACS-64 and rolling stock modernization programs.

Design and Specifications

The locomotives were developed with a Bo′Bo′ wheel arrangement drawing on technology from ASEA’s work for Swedish State Railways and designs used on SJ Rc locomotives, while General Electric adapted traction equipment familiar from GE Transportation projects. Electrical systems supported 11 kV and 12.5 kV 25 Hz AC catenary common on Pennsylvania Railroad and New York, New Haven and Hartford Railroad legacy routes, with onboard transformers and rectifiers derived from industrial practice at BBC (Brown, Boveri & Cie). The carbody and cab ergonomics reflected contemporary standards seen on Amtrak rolling stock such as E60 units and were approved under Federal regulations enforced by the Federal Railroad Administration. Brake systems integrated pneumatic components similar to those used by Electro-Motive Division fleets, and auxiliary systems paralleled equipment on Metropolitan Transportation Authority and Southeastern Pennsylvania Transportation Authority vehicles.

Development and Procurement

Procurement originated after studies by Amtrak and infrastructure stakeholders including Conrail and the Pennsylvania Department of Transportation evaluating options to replace aging GG1 locomotives. A consortium proposal from General Electric and ASEA was selected following competitive bids from manufacturers like Boeing Vertol and EMD. Production contracts were negotiated with input from unions represented by the Brotherhood of Locomotive Engineers and standards organizations such as the American Railway Engineering Association. Initial acceptance testing involved runs on trackage owned by Penn Central and later certification processes with the National Railroad Passenger Corporation.

Service History

Entering service on Northeast Corridor routes, the locomotives hauled long-distance trains including services comparable to the Acela Express predecessors and corridor expresses linking Washington Union Station, Philadelphia 30th Street Station, and New Haven Union Station. Fleets were also leased to commuter agencies such as New Jersey Transit for electrified commuter lines and MARC for the Penn Line. Over decades they operated alongside equipment from Bombardier Transportation and Siemens and were maintained at facilities associated with Amtrak Maintenance Services and state-owned shops. Incidents during service prompted investigations by the National Transportation Safety Board in coordination with rail police from jurisdictions including Amtrak Police Department.

Technical Variants and Modifications

Throughout their operational life units received retrofits including updated rectifiers, cooling systems, and microprocessor controls influenced by advances seen in Microelectronics used by Siemens AG and Alstom. Some locomotives were modified for higher tractive effort to handle longer consists similar to those hauled by GE Genesis units, while others received cab refurbishments mirroring standards applied to NJ Transit fleets. Upgrades also addressed compatibility with renewed signaling systems including Advanced Civil Speed Enforcement System prototypes and wayside interfaces used on corridors undergoing improvements funded by the Federal Transit Administration and state transportation agencies.

Performance and Operations

The class delivered high reliability and acceleration on electrified stretches, comparable in operational metrics to European mainline locomotives operated by SBB CFF FFS and DB Fernverkehr in their era. Their top speed of 125 mph met Federal corridor goals and permitted schedule improvements on intercity runs, reducing trip times between hubs such as Baltimore Penn Station and New York Penn Station. Maintenance cycles were scheduled in coordination with asset managers at Amtrak, influencing procurement decisions for later fleets like the Siemens ACS-64 which replaced them on the Northeast Corridor.

Preservation and Disposition

After phased retirement in the 2000s and 2010s, several units entered preservation at institutions including the Railroad Museum of Pennsylvania and the Pennsylvania Trolley Museum, while others were acquired by private heritage operators and museums in the Northeast Corridor region. Deaccessioned examples were subject to disposal policies overseen by Amtrak and state agencies with some components recycled by firms such as Sims Metal Management. Preservation efforts involved coordination with volunteer organizations affiliated with the Railway & Locomotive Historical Society and the National Railroad Museum.
