Name	Enterprise

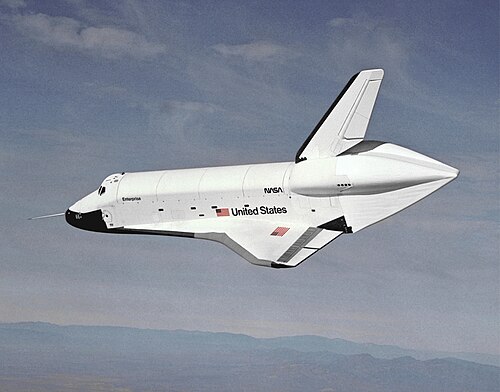

Caption	Enterprise in 1976 at the Rockwell assembly plant
Operator	NASA
Country	United States
Class	Space Shuttle prototype orbiter
Manufacturer	Rockwell International
First	1977
Fate	On display

Enterprise (orbiter)

Enterprise was the first orbiter built for the Space Shuttle program by NASA and Rockwell International to perform atmospheric flight tests and ground-based development prior to operational orbital missions. Constructed as a test article rather than a spaceflight-capable vehicle, the vehicle provided key aerodynamic, systems-integration, and operations data that influenced the design of the operational orbiters Columbia (OV-102), Challenger (OV-099), Discovery (OV-103), Atlantis (OV-104), and Endeavour (OV-105). Enterprise's test campaign included Approach and Landing Tests with the Shuttle Carrier Aircraft and contributed to early crew training for astronauts such as John Young and Robert Crippen.

Development and Design

Enterprise originated from decisions made during the 1970s procurement and development processes overseen by NASA and the United States Department of Transportation budget reviews that shaped the Space Transportation System. The orbiter was built by Rockwell International at facilities in Palmdale, California where contractors such as North American Rockwell (a predecessor), McDonnell Douglas suppliers, and small subcontractors produced structures, thermal protection mockups, and flight control surfaces. Intended as an atmospheric testbed, Enterprise lacked orbital-grade main engines such as the Space Shuttle Main Engine and did not have a functional Orbital Maneuvering System; instead, its internal structure incorporated ballast, test instrumentation, and simulated components to emulate mass distribution for approach and landing profiles. Program managers including John F. Yardley and systems engineers coordinated with the Johnson Space Center flight crews to validate aerodynamic models generated by the Langley Research Center and the Ames Research Center.

Enterprise's design leveraged lessons from research flight articles like the X-15 program and contemporary aerodynamic testbeds at Dryden Flight Research Facility (later Armstrong Flight Research Center). Structural features such as elevons, rudder/speed brake, and a drag chute assembly were exercised during drop tests from the Boeing 747 Shuttle Carrier Aircraft and towed tests at Edwards Air Force Base. The orbiter's thermal protection system comprised non-flight tiles and insulating blankets that mimicked the mass and heat-sink behavior of operational tiles used on Columbia (OV-102).

Specifications and Systems

Enterprise measured approximately 37.2 meters in length and 24.4 meters in wingspan, matching the dimensional envelope planned for operational orbiters to ensure fidelity with Kennedy Space Center launch and Vehicle Assembly Building processing. The vehicle featured a flight deck and middeck mockup consistent with crew requirements at the Johnson Space Center for training astronauts on approach, landing, and emergency egress. Flight control actuators, landing gear, and hydraulic systems were representative of the production fleet, while propulsion components such as the Space Shuttle Main Engine bells and RS-25 plumbing were absent or simulated. Avionics suites incorporated instrumentation compatible with range safety and telemetry systems used at Edwards Air Force Base and California Air National Guard units during ferry operations.

Onboard systems for environmental control, life support mockups, and cockpit displays paralleled configurations used by earlier crews at Flight Crew Operations Directorate simulations. Safety features included a functional drag chute and multi-wheel bogie landing gear similar to those later flown on Columbia (OV-102). Enterprise's structural test instrumentation provided strain, acceleration, and pressure data that informed fatigue life predictions and maintenance practices adopted at Kennedy Space Center and by United Space Alliance contractors during operational flights.

Test Flights and Flight History

Enterprise's major flight activity centered on the 1977 Approach and Landing Tests (ALT) program conducted at Edwards Air Force Base and involving captive and free-flight operations with the Boeing 747 Shuttle Carrier Aircraft. Crewed by pilots including Fred Haise and Gordon Fullerton, captive-active flights validated aerodynamics, flight controls, and tow-release procedures, while free flights demonstrated unpowered glides and landings. Earlier ground tests included tow tests at Rockwell plant facilities and taxi tests at Palmdale Regional Airport to verify landing gear dynamics and braking systems.

During ferry operations, Enterprise was mated to the Shuttle Carrier Aircraft for cross-country transportation flights to the Kennedy Space Center and back to Edwards Air Force Base, exposing the combination to atmospheric environments assessed by National Transportation Safety Board-style analyses and range operations protocols. Although never launched on a mission to Low Earth Orbit, Enterprise supported astronaut egress drills, ground-handling procedures, and launch pad integration rehearsals at Kennedy Space Center that influenced countdown and safety workflows used during missions such as STS-1 and later shuttle flights.

Operational Evaluation and Legacy

Enterprise's test campaign validated aerodynamic databases developed by Langley Research Center and Ames Research Center and reduced risk for the initial operational orbiter flights, directly impacting the success of STS-1 and subsequent missions conducted by crews including John Young, Robert Crippen, Sally Ride, and Chris Hadfield. Data from Enterprise informed revisions to thermal protection tile inspection criteria, approach and landing training curricula at the Johnson Space Center, and structural reinforcement details implemented by Rockwell International and later maintenance contractors. The orbiter further served as a platform for public relations and congressional briefings tied to budget decisions overseen by committees such as the House Committee on Science and Astronautics.

Enterprise's legacy extends into preservation, museum exhibition practices, and the cultural memory of the Space Shuttle program, influencing restoration projects for other orbiters and the treatment of aerospace artifacts by institutions including the Smithsonian Institution and regional museums.

Preservation and Display

After completion of ALT, Enterprise toured the United States and Europe for public display, visiting venues such as the Paris Air Show and exhibitions in cities with ties to aerospace heritage like Washington, D.C. and New York City. Permanent preservation efforts placed Enterprise at institutions including the National Air and Space Museum affiliate venues and later at the Intrepid Sea, Air & Space Museum in New York City where it provided educational outreach and historic interpretation. Subsequent relocations involved transport logistics coordinated with the National Aeronautics and Space Administration and host museums, with conservation teams addressing composite materials, thermal tile mockups, and environmental control to mitigate degradation.

Enterprise remains an important artifact for scholars, curators, and the public, offering tangible connections to the developmental era of the Space Shuttle program and its influence on later spacecraft such as SpaceX Dragon and Boeing Starliner development philosophies. Category:Space Shuttle orbiters
