ESP8266

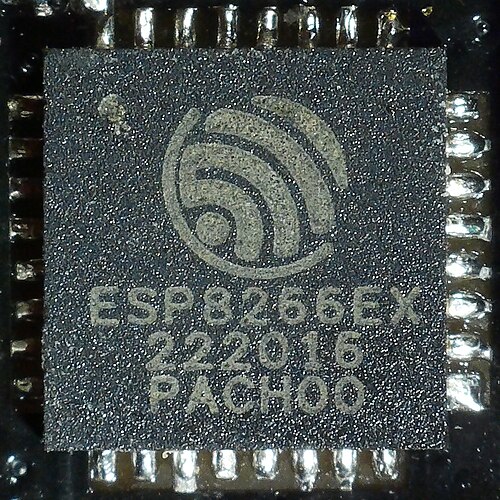

ESP8266
Laserlicht · CC BY-SA 4.0 · source
Name	ESP8266
Developer	Espressif Systems
Release	2014
Architecture	Tensilica Xtensa LX106
Clock speed	80/160 MHz
Memory	32 KiB instruction, 32 KiB data, external flash
Wireless	802.11 b/g/n (2.4 GHz)
Gpio	up to 17
Power	3.3 V

ESP8266 is a low-cost Wi‑Fi microcontroller module developed by Espressif Systems introduced in 2014. It combines a Tensilica Xtensa LX106 core with integrated 802.11 b/g/n radio, enabling embedded developers to add wireless connectivity to devices popularized by communities around Arduino (platform), Raspberry Pi, and Maker Faire. The module's affordability and versatility spurred rapid adoption across hobbyist, academic, and commercial projects influenced by events such as the growth of Internet of Things ecosystems and conferences like CES.

Overview

The device emerged from Espressif's product line alongside later chips such as the ESP32, with design goals aligned to provide compact wireless capability in modules like the ESP-01 and development boards like the NodeMCU. Early coverage in maker forums and publications associated with Hackaday and Adafruit Industries accelerated community-driven firmware development and documentation. Its presence affected vendor ecosystems including Amazon (company), Alibaba Group supply chains, and educational initiatives at institutions like Massachusetts Institute of Technology makerspaces.

Hardware

At its core the module uses a single-core Tensilica Xtensa LX106 processor offering selectable clock rates (typically 80 or 160 MHz) and limited on-chip RAM; typical modules pair the SoC with external SPI flash memory from suppliers such as Winbond or GigaDevice. GPIO count varies by package: modules expose digital I/O, ADC, UART, SPI, and I²C interfaces enabling peripherals from manufacturers like Bosch and Texas Instruments. Antenna options range from PCB trace antennas to ceramic chip antennas manufactured by firms including Taoglas; certified variants comply with regulatory regimes such as those overseen by Federal Communications Commission and European Telecommunications Standards Institute approvals. Power design considerations echo designs from embedded platforms like Arduino Uno for level shifting and 3.3 V regulation to accommodate the radio's current spikes.

Software and Development

Developer tooling matured around SDKs provided by Espressif and third-party ecosystems. Official SDKs—akin to vendor offerings from ARM or Microchip Technology—support C-language development, while community projects created high-level environments such as the NodeMCU firmware implemented in Lua (programming language) and Arduino core compatibility enabling sketches familiar to Arduino (platform) users. Toolchains often involve the GNU toolchain promoted by Free Software Foundation and IDEs used in embedded contexts like Eclipse or PlatformIO. Bootloaders and flashing utilities integrate with USB-serial bridges from companies like FTDI and Silicon Labs. Package managers and repositories maintained by organizations such as GitHub host numerous driver libraries and examples contributed by developers from Google Summer of Code–related projects and university labs.

Networking and Protocols

The radio supports 802.11 b/g/n in the 2.4 GHz band and implements TCP/IP stacks comparable to implementations used by Linux kernel network subsystems and lightweight stacks like lwIP used in embedded systems. Protocol support includes DHCP, DNS, HTTP, HTTPS (with TLS libraries adapted from projects like mbed TLS), MQTT implementations akin to those used in IBM and Eclipse Foundation projects, and WebSocket support leveraged in dashboards similar to Grafana or Kibana. Wi‑Fi provisioning techniques and interoperability considerations relate to standards and mechanisms discussed at venues such as the IETF meetings and in industry fora including Wi-Fi Alliance.

Applications and Projects

ESP8266 found use in smart home implementations connecting to ecosystems by Amazon (company) Alexa and Google Assistant, in telemetry nodes for environmental monitoring used by researchers at institutions like Stanford University and Imperial College London, and in rapid prototyping at startups showcased at SXSW and Maker Faire. Community projects range from mesh networking experiments inspired by OpenWrt firmware modding to automation controllers interfacing with sensors produced by Honeywell and Sensirion. Educational kits produced by companies like Adafruit Industries and SparkFun Electronics integrate the module to teach embedded programming often alongside textbooks and courses from Coursera and edX.

Security and Limitations

Security concerns include firmware update mechanisms, TLS implementation completeness, and vulnerabilities arising from default configurations noted in advisories disseminated through channels like CERT and security researchers associated with conferences such as Black Hat. Limitations derive from constrained RAM and flash compared with more capable microcontrollers, prompting tradeoffs when implementing large TLS certificates or complex protocol stacks—considerations similar to those in designs using older ARM (company) Cortex-M0 parts. Regulatory and coexistence issues in crowded 2.4 GHz spectrum echo challenges discussed by ITU and IEEE. Practical mitigations include over-the-air update schemes, minimal privileged services, and gateway architectures that offload heavy processing to devices running Linux on platforms like Raspberry Pi or cloud services hosted by Microsoft Azure and Amazon Web Services.
