Arduino Uno

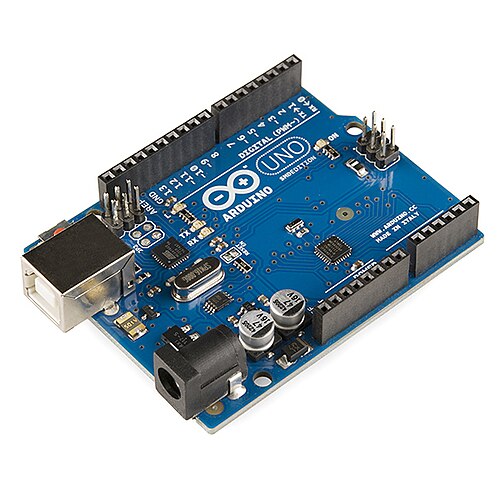

Arduino Uno
SparkFun Electronics from Boulder, USA · CC BY 2.0 · source
Name	Arduino Uno
Developer	Arduino
Type	Microcontroller board
Released	2010
Cpu	ATmega328P
Memory	2 KB SRAM
Storage	32 KB flash
Os	None

Arduino Uno is an open-source microcontroller board widely used in hobbyist, educational, and prototyping contexts. It integrates a microcontroller, digital and analog I/O, and standard communication interfaces, enabling interaction with sensors, actuators, and host computers. The platform connects communities around Massimo Banzi, David Cuartielles, Tom Igoe, Gianluca Martino, and organizations such as Arduino (company) and has influenced makers associated with Maker Faire, Hackaday, Raspberry Pi, MIT Media Lab, and Creative Commons.

Overview

The Uno centers on an Atmel ATmega328P microcontroller and exposes 14 digital I/O pins, 6 analog inputs, a power jack, a USB-B connector, and an ICSP header for in-circuit programming, used by educators at Windsor Girls' School, researchers at Harvard University, engineers at SparkFun Electronics, and designers at Adafruit Industries. Its simplified form factor and shield-compatible headers echo standards from RS-232-era hardware and parallel development from projects like Netduino and BeagleBoard. The Uno’s open-source licensing model references practices from Open Source Initiative, Creative Commons, and hardware projects associated with Arduino (project).

History and Development

Development began amid collaborations between co-founders associated with Interaction Design Institute Ivrea and early supporters tied to NYU Tisch School of the Arts and Istanbul Bilgi University. The Uno emerged as a successor to earlier boards in response to community needs highlighted at events like Maker Faire Bay Area and by contributors who published designs through GitHub, Thingiverse, and forums such as Arduino Forum. Manufacturing partnerships evolved with firms linked to Smart Projects S.r.l. and disputes involving Gianluca Martino influenced organizational splits that involved legal frameworks referenced in Italian law and corporate actions by Arduino LLC and Arduino SRL.

Hardware Specifications

Core components include the ATmega328P microcontroller, a USB-to-Serial converter historically implemented with the ATmega16U2 or FTDI devices, a 16 MHz quartz crystal, a voltage regulator similar to units from STMicroelectronics and Texas Instruments, and a resettable polyfuse reminiscent of protections used by Schottky diode applications. Power can be supplied via a 7–12V DC jack, through USB connected to hosts like Windows, macOS, and Linux systems, or from external supplies used in projects with batteries from Panasonic or Duracell. The board’s I/O supports protocols including SPI, I2C (Two-Wire Interface), and UART, enabling interoperability with modules such as HC-SR04, MPU-6050, WS2812B, and nRF24L01.

Software and Programming

Programming uses the Arduino Integrated Development Environment originally inspired by tools from Processing and Wiring, built on languages standardized by ISO/IEC specifications and toolchains like GCC for AVR. The IDE communicates via a bootloader using the STK500 protocol and can be replaced by alternatives such as PlatformIO, Atmel Studio, and command-line utilities used in Continuous integration pipelines at organizations like Travis CI and Jenkins. Libraries distributed through the Arduino Library Manager provide interfaces for hardware from Adafruit, SparkFun, and sensor manufacturers such as Bosch Sensortec and Texas Instruments, while educational curricula at institutions like Massachusetts Institute of Technology and Stanford University integrate Uno-based assignments.

Revisions and Variants

Revisions have altered the USB interface, mounting, and power circuitry across official and third-party boards; examples include clones and compatibles produced by Seeed Studio, Elegoo, DFRobot, and community variants influenced by designs from Open Hardware Summit contributors. Official derivative boards and form-factor adaptations relate to lines such as Arduino Mega, Arduino Nano, Arduino Leonardo, Arduino Due, and competing ecosystems exemplified by Teensy and Particle (company). Licensing and trademark disputes involved entities like Smart Projects and events such as hearings in Italian courts that affected branding and manufacturing.

Applications and Projects

The Uno appears in widespread applications from university labs at Imperial College London to art installations at Museum of Modern Art, robotics competitions like FIRST Robotics Competition and RoboCup, environmental sensing projects partnered with NASA initiatives, and DIY home automation discussed in communities such as Instructables and Make: magazine. Common project themes include wearable electronics showcased at SXSW, agricultural monitoring tied to FAO guidelines, interactive music interfaces influenced by work at IRCAM, and IoT prototypes integrating cloud platforms such as AWS and Microsoft Azure.

Reception and Impact

Critics and commentators at outlets like Wired, The New York Times, The Guardian, and IEEE Spectrum have credited the Uno with democratizing access to embedded systems, while scholars at University of Cambridge and University of Oxford have analyzed its role in pedagogy and innovation ecosystems. The board’s influence extends into standards discussions at IEEE and open-hardware advocacy at Open Source Hardware Association, and it continues to shape maker culture evidenced at Hackerspace chapters worldwide and institutional curricula at Coursera and edX.
