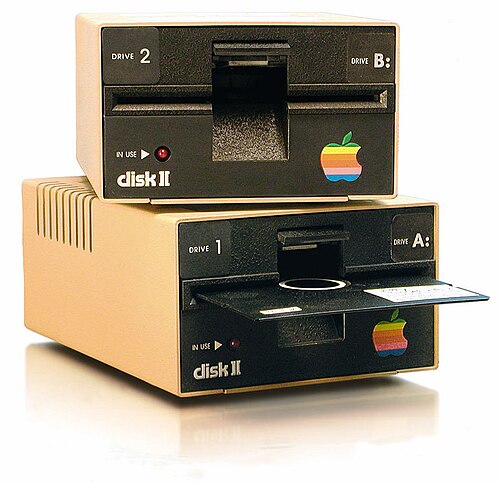

Disk II

Disk II
CC BY-SA 3.0 · source
Name	Disk II
Developer	Apple Computer, Inc.
Type	Floppy disk subsystem
Introduced	1978
Media	5.25-inch floppy disk
Capacity	140 KB (single-sided)
Interface	Apple II expansion interface
Cpu	MOS Technology 6502 (host system)
Predecessor	Cassette tape storage
Successor	Disk III

Disk II Disk II was a 5.25-inch floppy disk subsystem for the Apple II family that significantly accelerated the shift from cassette tape storage to disk-based storage in the late 1970s. Designed and promoted by Apple Computer, Inc. with engineering contributions linked to figures associated with Steve Jobs and Steve Wozniak, Disk II became a defining peripheral in the evolution of personal computing and the software distribution ecosystem. Its introduction influenced contemporaneous products from Commodore, Tandy Corporation, and IBM PC competitors while interacting with standards debated at venues like West Coast Computer Faire.

Overview

Disk II provided a low-cost, high-performance floppy disk solution that worked with the Apple II microcomputer platform running on the MOS Technology 6502 microprocessor. The subsystem included a controller card and a 5.25-inch floppy disk drive mechanism, enabling new classes of application software such as commercial word processing, database management, and computer gaming titles distributed on floppy media. Its release played a role in the expansion of software publishers including Sierra On-Line, Broderbund, Electronic Arts, and Microsoft during the formative years of the software industry.

Design and Hardware

The Disk II hardware combined a simple controller card that occupied an expansion slot in the Apple II chassis with a modified drive manufactured originally by firms linked to the Shugart Associates 5.25-inch standard. The controller card implemented pragmatic logic that minimized hardware complexity and offloaded sequencing tasks to the host MOS Technology 6502 CPU, reducing component count compared with contemporaries like the controllers used in Commodore 1541 and early IBM PC floppy subsystems. Mechanical components derived from Shugart Corporation mechanisms interfaced through a ribbon cable and edge connector compatible with the Apple II backplane. Engineers drew inspiration from tooling and design approaches discussed at trade venues such as the Consumer Electronics Show.

Firmware and Disk Operating System

Disk II relied on firmware and disk operating system code that ran on the Apple II rather than on an intelligent controller; this firmware included sector routines, data encoding/decoding algorithms, and error handling. Early DOS implementations for the platform included Apple DOS versions that provided file system abstractions, sector allocation, and system calls used by application developers, while later third-party systems such as ProDOS extended capabilities for larger storage and hierarchical directories. The project intersected with software projects maintained by organizations like Microsoft and independent developers from communities associated with Homebrew Computer Club members.

Software and Compatibility

The availability of Disk II enabled a rapid expansion of commercial and hobbyist software compatible with the Apple II architecture, including titles from VisiCorp (notably VisiCalc), Broderbund releases, and early game development from companies like Sierra On-Line. Developers targeted the MOS Technology 6502 instruction set and used disk operating system interfaces exposed by Apple DOS and later ProDOS to implement file I/O, copy protection, and fast-load routines. Compatibility considerations prompted support from peripheral makers including Peripheral Technology and software utilities created by independent publishers that distributed programs at trade events like West Coast Computer Faire and through mail order catalogs printed by firms such as Byte Publications.

Production, Variants, and Modifications

Manufacturing of Disk II assemblies involved collaborations between Apple Computer, Inc. and third-party vendors supplying drive mechanisms and electronic components, with iterative hardware revisions to improve reliability and compatibility. Variants emerged through official updates and aftermarket modifications by hobbyists and companies associated with the Homebrew Computer Club community; these included upgrades to controller ROMs, modified drive electronics to support double-sided media, and compatibility patches for clone systems produced by companies like Franklin Computer Corporation. Technical discourse about such modifications appeared in periodicals such as Byte (magazine) and Creative Computing.

Legacy and Impact on Personal Computing

Disk II influenced the economics, distribution, and technical direction of personal computing by lowering the cost of random-access storage and enabling larger, more sophisticated software titles. Its engineering choices—minimalistic controller logic leveraging the MOS Technology 6502 host CPU—demonstrated a trade-off model later examined by designers at firms including Commodore, Tandy Corporation, and IBM. The peripheral's role in popularizing disk-based software distribution contributed to the growth of companies like Software Arts and Sierra On-Line and shaped user expectations addressed by later operating systems such as ProDOS and hardware platforms like the Apple IIe. Disk II's historical significance is chronicled in accounts focusing on founders linked to Apple Computer, Inc. and in museum collections preserving artifacts from events like the West Coast Computer Faire and institutions such as the Computer History Museum.
