| Daimler-Benz DB 601 | |
|---|---|
 | |
| Name | Daimler-Benz DB 601 |
| Type | Inline liquid-cooled aircraft engine |
| Manufacturer | Daimler-Benz AG |
| First run | 1937 |
| Produced | 1937–1945 |
| Configuration | 12-cylinder inverted V |
| Displacement | 33.9 L |
| Valvetrain | DOHC, four valves per cylinder |
| Supercharger | Single-stage, single-speed or two-speed |
| Fuel system | Direct fuel injection |
| Cooling | Liquid-cooled |
| Power output | 1,000–1,350 PS |
| Weight | ~700 kg |

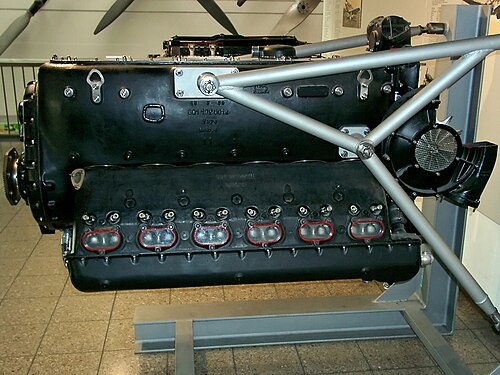

Daimler-Benz DB 601 The Daimler-Benz DB 601 was a German 12-cylinder inverted-V liquid-cooled aircraft engine developed in the 1930s and produced through World War II. It combined advanced features such as direct fuel injection, dual overhead camshafts, and a supercharger to deliver high specific power for fighters and bombers used by the Luftwaffe and exported to Axis partners. The engine powered many notable aircraft in campaigns across Europe, North Africa, and the Eastern Front, influencing contemporaneous powerplant design and postwar developments.
Design and development
Design work originated from the earlier Junkers Jumo 210 lineage and was carried out at Daimler-Benz AG under leadership linked to engineers associated with Paul Daimler and corporate design teams interacting with Ludwig Prandtl-era aerodynamicists. Development paralleled initiatives at BMW (Bayerische Motoren Werke) and Napier & Son as airframe manufacturers including Messerschmitt and Heinkel sought compact, powerful engines for projects like the Messerschmitt Bf 109, Heinkel He 111, and Bf 110. Early bench tests took place near Stuttgart facilities, with performance trials at test sites connected to Reich Aviation Ministry procurement standards influenced by figures from Hermann Göring's administration and technical advisors from Luftwaffe staff. The DB 601's adoption of direct fuel injection was inspired by work at Daimler-Benz AG and comparisons with Isochronous injection concepts tested by Gustav Otto-era engine firms. Collaborative exchanges occurred with engine test centers associated with Technische Hochschule Stuttgart and private contractors contracted under the Reichsluftfahrtministerium.
Technical description
The DB 601 was a 60° inverted V-12 with a displacement of approximately 33.9 litres and dry weight near 700 kg. It featured dual overhead camshafts per bank operating four valves per cylinder, an architecture paralleling designs from Rolls-Royce developments such as the Rolls-Royce Merlin but distinguished by an inverted layout similar to engines used by Fiat and Hispano-Suiza. A single-stage supercharger provided sea-level manifold pressure with two-speed variants for higher-altitude performance, reflecting practices at BMW and Pratt & Whitney laboratories. The system employed mechanical direct fuel injection enabling sustained negative-g manoeuvres and improved fuel economy relative to contemporary carburetted engines used by operators like Supermarine and Gloster. Cooling was via a pressurized liquid circuit with radiators integrated into airframe installations like those on the Bf 109 and He 111. The DB 601's crankcase, forged crankshaft, and sleeve-valve-adjacent tolerances were results of metallurgical advances tied to suppliers in the Ruhr and casting techniques developed with firms such as Krupp and Siemens-Schuckertwerke.
Operational history
The DB 601 entered squadron service in the late 1930s powering early variants of the Messerschmitt Bf 109 and twin-engined types like the Messerschmitt Bf 110 and Heinkel He 111. It saw combat during the Spanish Civil War, the Invasion of Poland, the Battle of France, and continued through Operation Barbarossa and the North African Campaign. Units flown by Jagdgeschwader formations and Kampfgeschwader squadrons relied on the DB 601 for air superiority and tactical strike roles, engaging Allied types including Supermarine Spitfire and Hawker Hurricane fighters. Export and license-use extended to Axis partners and satellite states during operations like the Balkan Campaign with deployment from bases in Crete and Sicily. Wartime production pressures and Allied strategic bombing targeting facilities in Berlin and Stuttgart affected availability, prompting maintenance adaptations by ground crews from units such as Luftwaffe Feldwerkstätten and repair sections modeled on practices from Heeresinstandsetzung.
Variants and derivatives
Multiple DB 601 subvariants adjusted compression ratios, supercharger gearing, and intended fuel grades to produce power outputs from about 1,000 PS to 1,350 PS. Military-rated versions paralleled developmental paths of the later Daimler-Benz DB 605 and industrial lines such as the Daimler-Benz DB 603. Derivative projects influenced licensed and unlicensed designs including work at Isotta Fraschini and comparisons with Hispano-Suiza 12Y adaptations. Specialized adaptations featured reduction gearing for propeller types used on aircraft like the Junkers Ju 88 and modifications for tropical service employed by units in North Africa with changes to filtration and cooling akin to retrofits seen on Fiat CR.42 conversions.
Production and manufacturers
Primary manufacture was by Daimler-Benz AG with component subcontracting to industrial firms in the Ruhr region and Bavaria, including foundries associated with Krupp and precision shops linked to Siemens-Schuckertwerke. Wartime dispersion programs moved production to satellite plants and subcontractors in occupied territories and to workshops coordinated through the Reichswerke Hermann Göring network. Supply chain strains, raw material allocation overseen by agencies linked to Albert Speer's ministerial apparatus, and Allied interdiction influenced output. Postwar assessments saw captured tooling and specimens examined by teams from Royal Air Force intelligence and United States Army Air Forces technical missions.
Applications (aircraft)
The DB 601 powered frontline fighters and twin-engined aircraft: notably early-model Messerschmitt Bf 109 variants, the heavy fighter Messerschmitt Bf 110, medium bomber Heinkel He 111, reconnaissance and bomber variants of the Junkers Ju 88 family in some installations, and special conversions used by Luftwaffe coastal units operating from bases like Cherbourg and Rostock. Export or test installations connected the engine to projects at Fiat and experimental mounts evaluated by crews from Regia Aeronautica and German test pilots affiliated with units such as Erprobungskommando 16.
Legacy and impact on aero engine design
The DB 601's adoption of direct fuel injection, inverted installation, and compact DOHC layout influenced subsequent Axis and Allied engine programs, contributing to design reasoning in postwar Rolls-Royce and General Electric turbomachinery studies. Captured engines examined by teams from National Advisory Committee for Aeronautics and United States Navy engineering bureaus informed metallurgy, supercharging, and fuel system developments. The lineage continued into the DB 605 and DB 603 families and served as a technical reference for aero engine education at institutions like Technische Universität München and preserved examples in museums such as the Deutsches Technikmuseum Berlin and collections associated with the Imperial War Museum.
