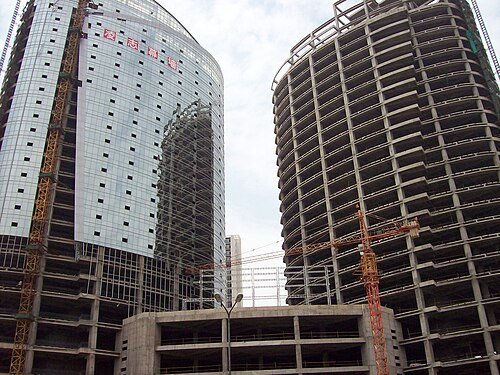

Curtain wall (architecture) A curtain wall is a non‑loadbearing exterior cladding system that separates interior and exterior environments while transferring wind, seismic, and self‑weight loads to the structural frame. It is widely used on high‑rise buildings such as Seagram Building, Lloyd's Building, One World Trade Center, Burj Khalifa, and Petronas Towers and integrates glazing, framing, insulation, and weatherproofing to meet thermal, acoustic, and fire requirements.

Definition and function

A curtain wall is an exterior facade assembly attached to a building's structural frame such as steel frame construction, reinforced concrete, cast iron architecture, composite structures, and post‑tensioned concrete; it does not carry gravity loads from floors or roofs but resists lateral loads like those analyzed in wind engineering, seismic retrofit, structural dynamics, finite element analysis, and modal analysis. Functions include daylighting control seen in Louvre Museum, solar heat gain management relevant to COP conferences and Paris Agreement climate goals, acoustic separation exemplified in venues like Sydney Opera House, and integration of mechanical systems as in Bank of China Tower and Centre Pompidou.

History and development

Origins trace to curtain wall precedents in Crystal Palace exhibition glazing and the curtain walls of early skyscraper prototypes in Chicago School (architecture) during the World's Columbian Exposition. Advances in metallurgy, pioneered by firms associated with Andrew Carnegie and innovations in glass by Saint-Gobain and Pilkington propelled application on buildings such as Home Insurance Building, Flatiron Building, and later the curtain wall exemplars of the International Style like Seagram Building and Lever House. Postwar developments involved curtain wall research at institutions like Massachusetts Institute of Technology, ETH Zurich, Humboldt University of Berlin, convergence with building science from ASHRAE standards, and regulatory responses after incidents prompting revision of codes such as those influenced by NFPA and national authorities in United Kingdom and United States.

Types and materials

Curtain walls occur as stick systems popularized by manufacturers like Schüco and Reynaers Aluminum, unitized systems used on projects like Hearst Tower, and panelized rainscreen cladding seen at Guggenheim Museum Bilbao. Primary materials include float glass from Corning Incorporated, coated low‑e glazing developed with research from National Renewable Energy Laboratory, framing in aluminium alloys produced by Alcoa and Hydro Aluminium, steel framing used historically by firms linked to Bethlehem Steel, stone veneer anchored by techniques refined in Carrara, and composite panels such as aluminum composite material (ACM) supplied by companies like Arconic. Specialty infills include spandrel glass employed at Bank of America Tower, fritted glass used in Sears Tower refurbishments, ceramic panels applied on Guggenheim Bilbao, and structural silicone glazing championed in projects by architects such as Norman Foster and firms like Skidmore, Owings & Merrill.

Design and engineering

Design integrates architectural intent from practices like Foster + Partners, structural engineering by offices such as Arup, facade consultancy from Thornton Tomasetti, and facade testing protocols derived from organizations like ASTM International and European Committee for Standardization. Engineers consider thermal bridging modeled with software from ANSYS, air leakage characterized under ASTM E283, water penetration per ASTM E331, and structural performance from ASCE loading criteria and Eurocode wind actions. Connections to building systems include integration with curtain wall access equipment for window cleaning operations defined in projects like Petronas Towers and coordination with floor slabs as executed at One World Trade Center.

Performance and testing

Performance metrics involve U‑value testing referenced by ISO standards, solar heat gain coefficient linked to ratings by National Fenestration Rating Council, acoustic performance measured under ISO 140 series, and durability tests from BSI Group. Laboratory and field tests cover air infiltration, water penetration under cyclic pressures seen in research at Fraunhofer Society, and blast or impact resistance assessed following protocols from Department of Defense and studies relevant to Port Authority of New York and New Jersey. Long‑term performance monitoring has been conducted on prototypes at research centers like Lawrence Berkeley National Laboratory.

Fire safety and building codes

Fire performance involves compartmentation principles incorporated in codes such as International Building Code, London Building Act, and national standards by NFPA, with concerns about cladding combustibility highlighted by incidents prompting inquiries similar to those by Grenfell Tower Inquiry. Strategies include vertical fire breaks, firestopping at floor slabs coordinated with Underwriters Laboratories listings, and selection of noncombustible materials compliant with EN 13501. Code compliance also integrates egress and smoke control measures from standards promulgated by International Code Council and local authorities like New York City Department of Buildings.

Installation and maintenance

Installation requires coordination among general contractors like Turner Construction Company, facade installers trained in methods developed with suppliers such as Permasteelisa Group, and scaffold or rope‑access teams certified through programs linked to IRATA. Quality control uses mock‑ups per ASTM E1105, sealant specifications guided by manufacturers such as Dow Chemical Company, and construction sequencing coordinated with trade contractors including Siemens for MEP interfaces. Maintenance regimes include periodic inspection, reglazing procedures documented by associations like British Fenestration Rating Council, and retrofits addressing thermal performance and safety as in refurbishments of John Hancock Center.

Notable examples and case studies

Prominent curtain wall projects include early modernist icons Seagram Building by Mies van der Rohe, high‑performance façades of One World Trade Center by David Childs (architect), adaptive uses at Lloyd's Building by Richard Rogers, and supertall applications such as Burj Khalifa by Adrian Smith. Case studies addressing failure and remediation include cladding investigations after Grenfell Tower fire and retrofit programs at John Hancock Tower in Boston. Contemporary exemplars integrating unitized facades and advanced glazing feature work by Skidmore, Owings & Merrill on Petronas Towers and Norman Foster’s projects like 30 St Mary Axe.
