Capanda Dam

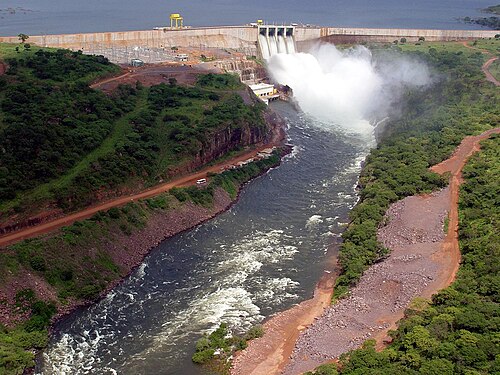

Capanda Dam
Eribeto · CC BY-SA 3.0 · source
Name	Capanda Dam
Country	Angola
Location	Malanje Province, Angola
Status	Operational
Construction begin	1980s
Opening	2004
Owner	Northern System (Sistemas Nacionais de Produção de Energia)
Type	Gravity/Concrete
Height	110 m
Length	700 m
Crosses	Kwanza River
Reservoir capacity	6,200,000,000 m³
Plant capacity	520 MW
Plant turbines	4 × 130 MW Francis

Capanda Dam Capanda Dam is a large hydroelectric facility on the Kwanza River in Malanje Province in northern Angola. Conceived during the late 20th century, the project was interrupted by the Angolan Civil War and completed in the early 21st century, becoming a major component of Angola’s national energy infrastructure. The installation links to national transmission grids and regional development initiatives, influencing energy supply, riverine ecosystems, and local communities.

Overview

The project was developed as part of Angola’s post-independence industrialization and reconstruction efforts involving international contractors and financiers such as Mota-Engil, A. Almeida S.A., and consortia from Portugal, Brazil, and Spain. Initial works began amid involvement by the Soviet Union and later resumed with multinational partnerships following ceasefires in the Angolan Civil War. The dam’s strategic importance is reflected in its connection to the Kwanza Sul and national electrification programs, and it sits upstream of other Kwanza projects, contributing to river basin management strategies promoted by regional planners and the Ministry of Energy and Water (Angola).

Design and Construction

Engineered as a roller-compacted concrete/gravity structure with associated intake works and powerhouse caverns, the facility’s civil design drew on practices validated at projects like Itaipu Dam and Guri Dam for embankment and concrete placements. Design firms and contractors coordinated geotechnical investigations, diversion tunnel construction, and spillway provisioning consistent with international dam safety guidelines such as those advocated by ICOLD-affiliated engineers. Construction progressed in phases: foundation excavation, concrete placement, installation of hoists and cranes sourced from industrial suppliers, and erection of intake gates and penstocks similar to installations at Three Gorges Dam and Hoover Dam. The timeline was affected by security interruptions during the Angolan Civil War, later accelerated by post-war reconstruction funding and agreements with multinational energy companies.

Hydroelectric Power Plant

The underground powerhouse contains four vertical-shaft Francis turbine units rated at about 130 MW each, yielding an installed capacity near 520 MW that supports peak and baseload supply for urban and industrial centers including Luanda and regional mining hubs. Turbine and generator equipment procurement involved manufacturers with footprints in the European Union and Brazil, employing synchronous generators, step-up transformers, and switchyard systems compatible with the national 220 kV and 440 kV transmission corridors. The plant’s operating modes include base-load generation and peaking reserve to accommodate seasonal inflows and demand fluctuations, coordinated with national dispatch centers under the direction of state utilities and grid operators linked to the national transmission company.

Reservoir and Hydrology

The reservoir inundates a significant stretch of the Kwanza River valley, creating a storage volume on the order of billions of cubic meters to regulate downstream flows and provide active storage for dry-season generation. Hydrological assessments referenced gauging records from upstream tributaries and climate data influenced reservoir operating rules, aiming to balance flood control, sediment management, and water supply for irrigation schemes proposed by provincial development plans. Sedimentation dynamics mirror challenges observed at other tropical reservoirs, requiring periodic bathymetric surveys, sluicing considerations, and catchment reforestation proposals aligned with initiatives by regional environmental agencies.

Environmental and Social Impacts

Creation of the reservoir led to land inundation, resettlement of rural communities, and changes to fisheries and riparian habitats, raising issues similar to those examined in impact assessments for projects like Akosombo Dam and Cahora Bassa Dam. Social mitigation measures included compensation frameworks, establishment of replacement settlements, and livelihood restoration programs coordinated with provincial authorities and international development partners such as UNDP and donor agencies. Biodiversity effects involved aquatic species shifts, riparian forest loss, and altered floodplain dynamics that prompted conservationists and researchers from regional universities to study long-term ecosystem responses. Public health interventions addressed vector-borne disease risks associated with new standing water bodies, coordinated with national ministries and nongovernmental organizations active in the province.

Operations and Maintenance

Operational responsibilities rest with Angolan utilities and contracted technical service providers for routine inspections, turbine overhauls, and instrumentation calibration. Maintenance programs follow manufacturer-recommended regimes for hydraulic turbines, bearings, wicket gates, and excitation systems, and include surveillance against structural issues through instrumentation arrays and periodic structural health monitoring influenced by best practices from international dam safety bodies. Emergency preparedness plans interface with provincial civil protection authorities to manage extreme flood scenarios and coordinate downstream notifications. Capacity-building initiatives and technical exchanges with engineering institutions and international vendors support local staff training in plant operations, electrical protection, and environmental monitoring to sustain reliable generation and safe dam stewardship.

Category:Dams in Angola Category:Hydroelectric power stations in Angola
