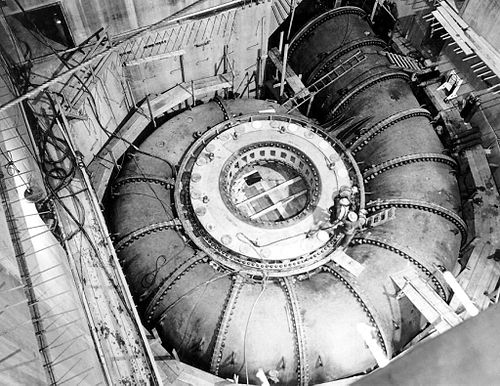

U.S. Bureau of Reclamation · Public domain · source
Name	Francis turbine
Inventor	James B. Francis
Type	Reaction turbine
First use	1848
Application	Hydroelectric power

Francis turbine The Francis turbine is a reaction-type water turbine widely used for hydroelectric power generation in dams and power stations. Combining radial and axial flow principles, it converts hydraulic energy into mechanical energy with high efficiency across moderate head ranges. Invented and refined during the 19th century, the turbine has played a central role in the development of large-scale hydroelectric power projects, influencing engineering practice in civil and industrial contexts.

History

The Francis turbine traces its origin to the work of James B. Francis at the Appleton City and Lowell waterworks and later in the United States and Europe. Early developments followed experiments by predecessors such as Benoît Fourneyron and contemporaries developing reaction and impulse machines. The formalization of the Francis design occurred amid the rapid expansion of industrial infrastructure associated with the Industrial Revolution and the rise of municipal work systems in cities like Lowell, Massachusetts and Manchester. Adoption accelerated with the construction of large dam projects such as Hoover Dam, Grand Coulee Dam, and European installations on the Rhine River and Dnieper River, shaping the electrical grid growth in the 20th century. International standards and hydraulic research institutions in countries including Germany, France, and the United States contributed to design optimization, material improvements, and computational modeling during the World War II and postwar reconstruction eras.

Design and Components

A Francis turbine typically comprises a spiral casing (or volute), guide vanes (wicket gates), runner, draft tube, and shaft connected to a generator or pump. The spiral casing distributes flow evenly from a penstock into the turbine; guide vanes control flow rate and angle and are actuated by servomechanisms often connected to governors such as those developed for hydroelectric plants influenced by Oliver Evans and later control theorists. The runner contains curved, fixed blades shaped through hydraulic profiling methods refined by laboratories like the Hydraulics Laboratory at Cornell University and institutes in Berlin and Milan. The draft tube recovers kinetic energy and guides discharge into tailraces linked to rivers such as the Columbia River or Yangtze River. Materials range from cast stainless steels to high-strength alloys tested in facilities associated with Alcoa and national research centers in Japan and Canada. Auxiliary systems include lubrication units, cooling circuits tied to generators by firms like Siemens and General Electric, and instrumentation from manufacturers such as Honeywell for performance monitoring.

Operation and Working Principle

Operation is based on reaction flow where water transfers both pressure and momentum to the runner. Water enters the spiral casing from a penstock fed by reservoirs or forebays associated with dams like Three Gorges Dam or Itaipu Dam, passes through adjustable guide vanes that impart a swirl, and then flows through the runner in a combined radial-then-axial path. The curvature and angle of blades convert the fluid’s angular momentum into torque on the shaft; Euler’s turbine equations and energy conversion principles developed by Leonardo da Vinci and formalized in fluid mechanics govern the design. The wicket gates modulate discharge for load following under automatic control schemes derived from early governors used in steam engines and later applied to hydro systems by engineers linked to Westinghouse Electric. The draft tube provides pressure recovery, allowing operation under subatmospheric tailwater conditions while maintaining cavitation margins studied by researchers from institutions like MIT.

Performance and Efficiency

Francis turbines achieve high efficiencies, often exceeding 90% near design point operation, making them ideal for baseload and peaking service in electric utilities. Efficiency curves vary with specific speed, head, and flow; designers rely on empirical correlations developed by laboratories such as the Hydraulic Laboratory of Saint Anthony Falls and industry consortia in Switzerland and Norway. Performance is sensitive to cavitation, hydraulic imbalance, and partial load phenomena addressed through blade profiling, vortex suppression, and anti-cavitation measures pioneered in research within Tokyo University and Imperial College London. Computational fluid dynamics methods from groups at Stanford University and ETH Zurich now complement physical model tests, enabling optimization of blade geometry, wicket gate linkage designs, and draft tube shapes to maximize annual energy yield for projects managed by entities like Toshiba and Andritz Hydro.

Applications and Installations

Francis turbines are deployed in a wide range of installations from low-head river diversions to large storage dams. Major examples include units in multipurpose projects such as Hoover Dam and Itaipu Dam, regional hydro plants on the Volga River and Amazon River basins, and compact installations in pumped-storage facilities like those associated with Dinorwig Power Station in the United Kingdom. Their adaptability enables use in irrigation schemes, industrial power plants, and municipal energy systems operated by utilities such as EDF, Eletrobras, and BPA (Bonneville Power Administration). Variants include reversible Francis machines used for pumped-storage service in projects connected to grids of countries including Spain, Italy, and Australia.

Maintenance and Failure Modes

Maintenance practices emphasize inspection of runners, wicket gates, bearings, and seals; common procedures derive from guidelines used by operators like Bonneville Power Administration and inspection regimes shaped by standards bodies such as those in ISO and national electrical authorities. Typical failure modes include cavitation erosion of blades, fatigue cracking in runners and shafts, bearing wear, wicket gate linkage failure, and sediment abrasion in rivers like the Yellow River and Murray River. Mitigation employs scheduled outages, non-destructive evaluation techniques developed by laboratories at NIST and TÜV, hydraulic model testing before refurbishment, and retrofits with new materials or coatings from industrial suppliers including General Electric and Voith Hydro. Condition monitoring systems using vibration, acoustic emission, and pressure transducers—implemented by firms such as Schneider Electric—support predictive maintenance to reduce downtime and extend service life.
