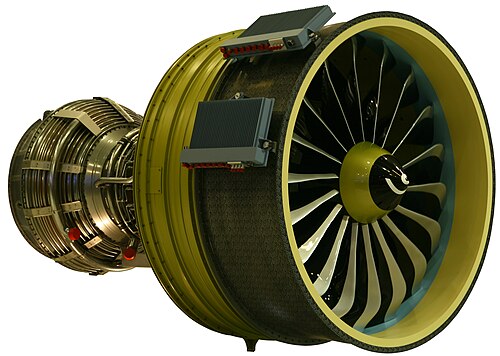

CFM International LEAP-1A

CFM International LEAP-1A
KGG1951 · CC BY-SA 3.0 · source
Name	LEAP-1A
Type	High-bypass turbofan
Manufacturer	CFM International
First run	2015
Thrust lbf	24,000–35,000
Bypass	10:1–11:1
Pressure ratio	50:1–60:1

CFM International LEAP-1A The LEAP-1A is a high-bypass turbofan engine produced by CFM International for the Airbus A320neo family. The program unites technologies from General Electric and Safran through their joint venture CFM International, and targets replacement of the CFM56 series with improvements in fuel burn, emissions, and maintenance. The engine entered airline service in the mid-2010s and competes with engines such as the Pratt & Whitney PW1000G and the Rolls-Royce Trent family on narrowbody platforms.

Development

Development of the LEAP-1A traces to cooperative industrial initiatives between General Electric and Snecma (later Safran), formalized within CFM International. The program was launched amid competition with Pratt & Whitney during the re-engining race associated with the Airbus A320neo launch alongside the Boeing 737 MAX re-engine programs. Key milestones included initial orders from carriers like IndiGo, Lion Air, and AirAsia and certification tests overseen by authorities such as the European Aviation Safety Agency (now European Union Aviation Safety Agency) and the Federal Aviation Administration. Development leveraged composite fan blades, advanced ceramic matrix composites (CMCs), and high-pressure compressors influenced by heritage designs from GE90 and CFM56 programs.

Design

The LEAP-1A integrates a composite fan (including CFM International-branded Composite Fan Case innovations), a single-stage high-pressure turbine, and a high-efficiency combustor incorporating lean-burn principles. Its architecture uses a high overall pressure ratio enabled by a multi-stage compressor derived from GE Aviation experience and hot-section materials expertise from Safran Aircraft Engines. Design goals emphasized reductions in specific fuel consumption and nitrogen oxide emissions to meet regulatory trends influenced by organizations such as the International Civil Aviation Organization and the European Union. Key components include titanium-alloy fan blades, ceramic matrix composite (CMC) stators, and additive-manufactured parts drawing on supply chains spanning firms like Aubert & Duval and MTU Aero Engines.

Variants

The LEAP family includes model-specific variants: LEAP-1A for the Airbus A320neo family, LEAP-1B for the Boeing 737 MAX family, and LEAP-1C for the Comac C919. Each variant adapts fan diameter, nacelle interfaces, and thrust ratings to match airframe requirements and certification specifications from agencies like the Civil Aviation Administration of China and the Federal Aviation Administration. Within the LEAP-1A line, sub-variants address thrust rating options for the A320neo, A321neo, and regional operator configurations ordered by airlines including Vueling, British Airways, and Delta Air Lines.

Operational history

After type certification and entry into service, the LEAP-1A entered commercial operations with carriers such as Lufthansa's subsidiary fleets and low-cost operators like EasyJet and IndiGo. The engine accumulated cycles across global routes, undergoing airline maintenance patterns shaped by maintenance providers including GE Aviation Services and Safran MRO units. Operational experience included performance monitoring through health-management systems reminiscent of Predix-style telematics and participation in fleet transition programs conducted by airline groups such as International Airlines Group and Air France-KLM.

Performance and specifications

Manufacturers published LEAP-1A performance targets of roughly 15–20% improvement in fuel burn relative to the CFM56-5B series, accompanied by lower carbon dioxide and nitrogen oxide emissions in line with targets promoted by International Air Transport Association and ICAO carbon reduction frameworks. Typical thrust ratings range from about 24,000 to 35,000 pounds-force to cover variants of the A320neo family, with bypass ratios near 10:1–11:1 and overall pressure ratios in excess of 50:1. The engine uses advanced materials, including ceramic matrix composites in turbine nozzles and single-crystal superalloys in turbine blades, and incorporates composite fan blades and cases to reduce weight and improve durability. Service life metrics and on-wing times influenced airline economics analyzed in fleet studies by IATA and industry consultancies.

Incidents and safety

Operational service revealed issues that prompted inspections and directives from safety authorities such as the Federal Aviation Administration and the European Union Aviation Safety Agency. Events included fan blade damage, debris ingestion events, and durability concerns leading to airworthiness directives and supplier corrective actions involving companies like MTU Aero Engines and component makers. Investigations sometimes involved national agencies such as the National Transportation Safety Board (for incidents in the United States) and manufacturer-led fleet inspections coordinated with airline operators like Pegasus Airlines and Southwest Airlines. These incidents spurred engineering updates, revised inspection intervals, and retrofits to address wear patterns and foreign-object damage susceptibility.

Operators and orders

The LEAP-1A secured substantial orders from major airlines and lessors including CDB Aviation, AerCap, Avolon, IndiGo, AirAsia Group, VietJet Air, Wizz Air, and JetBlue Airways. Airlines placed orders through airframers such as Airbus for A320neo-family aircraft with LEAP-1A options, influencing production rates at engine assembly plants in locations tied to industrial partners GE and Safran supply chains. Orders and backlog data featured in market analyses by firms like CAPA - Centre for Aviation and influenced fleet planning at airline groups including International Airlines Group and Ryanair.
