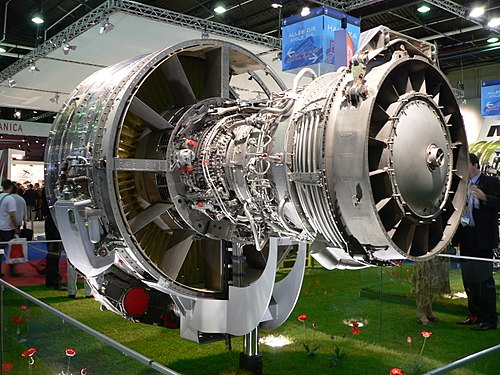

David Monniaux · CC BY-SA 3.0 · source
Name	CFM56
Type	High-bypass turbofan engine
Manufacturer	CFM International (Safran Aircraft Engines, GE Aviation)
First run	1974
Introduced	1979
Core	Single-shaft/dual-spool turbofan (hybrid configuration)
Thrust	18,500–34,000 lbf
Bypass ratio	5:1–6:1 (varies by variant)
Status	In service / phased for replacement

CFM56 The CFM56 is a family of high-bypass turbofan aircraft engines developed for narrowbody and widebody applications, powering aircraft such as the Boeing 737 Classic, Boeing 737 Next Generation, Airbus A320 family, and the McDonnell Douglas MD-80. Conceived in the 1970s through a partnership between GE Aviation and Snecma (now Safran Aircraft Engines), the program became a centerpiece of transatlantic industrial collaboration influencing procurement at carriers like Air France, Lufthansa, American Airlines, and British Airways. Over decades the engine has been central to fleets operated by Delta Air Lines, United Airlines, Southwest Airlines, Ryanair, and easyJet.

Development and Design

Development began as a response to competition from engines like the Pratt & Whitney JT8D and the need to re-engine newer airframes such as the Boeing 737 Classic and Airbus A320. The joint venture, CFM International, formed by GE Aviation and Snecma in 1974, combined expertise drawn from programs like the CF6 and the M88 demonstrators. Early testing occurred at facilities in Evry and at GE's Peebles Test Facility (Ohio), and design choices were influenced by inputs from airframers Boeing and Airbus Industrie. The architecture used a single-stage fan driven by a two-stage low-pressure turbine and a high-pressure compressor derived from GE cores, reflecting lessons from the CF6 and innovations used on the IAA projects. Certification required engagement with authorities such as the Federal Aviation Administration and the European Union Aviation Safety Agency.

Variants and Technical Specifications

The family expanded into multiple variants: the -2 series for the Boeing 737 Classic, the -3 series for the MD-80 derivatives, and the -4/-5 series for the Airbus A320 family and Boeing 737 Next Generation. Later high-thrust developments paralleled work on the GE90 and influenced the design philosophy behind the LEAP program. Technical specifications varied: thrust range from about 18,500 lbf on early -2 variants to over 34,000 lbf on some uprated -7/-8 derivatives; bypass ratios evolved to improve fuel efficiency, adopting materials and cooling technologies akin to those used in Rolls-Royce RB211 and Pratt & Whitney PW4000 programs. Components included titanium fan blades, nickel-based high-pressure turbine blades with single-crystal metallurgy influenced by research at Oak Ridge National Laboratory and test techniques developed at NASA centers. Accessory gearboxes, FADEC-informed control interfaces, and nacelle integrations involved suppliers like Hamilton Sundstrand and Goodrich Corporation.

Operational History

The engine entered service on aircraft operated by flag carriers including Air France and Lufthansa in the late 1970s and early 1980s, and later became the dominant powerplant for low-cost carriers such as Southwest Airlines and Ryanair. High-utilization operations on transcontinental routes by airlines like American Airlines and United Airlines demonstrated endurance comparable to long-running platforms like the Boeing 727 and Douglas DC-8. Military and special mission operators, including Royal Air Force conversions and civil-military refurbishments undertaken by organizations like Northrop Grumman and Lockheed Martin, adapted variants for non-standard installations. The engine’s ubiquity affected aftermarket ecosystems dominated by firms such as StandardAero, MTU Aero Engines, and CFM International’s own MRO networks.

Maintenance, Overhaul, and Support

Support networks grew around heavy maintenance providers including AAR Corporation and SR Technics, with overhaul facilities located in hubs like Shannon Airport, Toulouse, Cleveland Hopkins International Airport, and Shenzhen Bao'an International Airport. Life-cycle management employed borescope inspection procedures standardized by FAA advisory circulars and predictive maintenance algorithms developed in collaboration with research groups at MIT and Cranfield University. Spare parts supply chains involved manufacturers such as Honeywell for accessories and Parker Hannifin for fluid systems, while logistics and inventory management followed practices used by DHL and FedEx for just-in-time delivery to carriers including Singapore Airlines and Cathay Pacific.

Safety Record and Incidents

The engine has a long operational history that includes both routine reliability records and high-profile events examined by investigators from National Transportation Safety Board and Bureau d'Enquêtes et d'Analyses pour la sécurité de l'aviation civile. Incidents prompted airworthiness directives from the FAA and EASA, influencing inspection intervals used by operators such as Qantas and KLM. Investigations correlated failures to factors scrutinized by experts at Imperial College London and failure analysis labs at Sandia National Laboratories, and led to design or maintenance changes similar to those implemented after events involving engines like the Rolls-Royce Trent 900 and General Electric CF6. Lessons from these inquiries informed training at institutions like Emirates Aviation University and operational safety programs at IATA.
