Atlas LV-3B

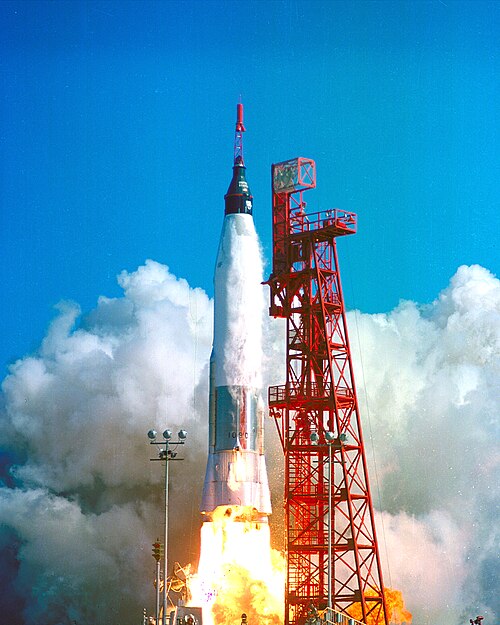

Atlas LV-3B
NASA/photographer unknown · Public domain · source
Name	Atlas LV-3B
Function	Manned orbital launch vehicle
Manufacturer	Convair
Country origin	United States
Height	94.5 ft (28.8 m)
Diameter	10 ft (3.05 m)
Mass	260,000 lb (118,000 kg)
Stages	1.5
Status	Retired
First launch	1960-02-21
Last launch	1963-05-15

Atlas LV-3B The Atlas LV-3B was the man-rated derivative of the SM-65 Atlas ICBM used as the launch vehicle for early United States crewed spaceflights. Developed from the SM-65 Atlas family by Convair with engineering oversight from Lewis Research Center and operational control by Cape Canaveral Air Force Station contractors, it provided the booster for the Project Mercury orbital missions including the historic flights that carried John Glenn, Scott Carpenter, and other Mercury astronauts into orbit.

Development and design

The LV-3B emerged from design work linking the SM-65 Atlas strategic missile program to the civilian objectives of Project Mercury and the National Aeronautics and Space Administration. Modifications were specified by teams from Convair, General Dynamics, and Aeronutronic under direction from Air Force Systems Command and NASA management. Engineering changes addressed human-rating requirements identified after studies by Ames Research Center, Langley Research Center, and panels chaired by Robert Gilruth to satisfy constraints imposed by the Mercury Seven astronaut selection and safety reviews convened by Deke Slayton and Alan Shepard. Structural reinforcement, redundant flight controls, and an abort system interface with the Mercury capsule were principal design tasks overseen at Cape Canaveral launch complexes originally used for Atlas testing.

Technical specifications

The LV-3B retained the Atlas balloon-tank structural concept with stainless steel tankage derived from the SM-65 Atlas design developed by Karel Bossart. Propulsion used twin booster engines and a central sustainer engine in an “stage-and-a-half” configuration powered by RP-1 and liquid oxygen; the powerplant lineage traced to Rocketdyne units used on prior Atlas variants. Human-rating added redundant telemetry systems, environmental sensors, and a reliable flight termination/abort interface linked to the Launch Escape System. Avionics were upgraded with guidance packages influenced by work at Hughes Aircraft Company and inertial systems patterned after devices tested at MIT Instrumentation Laboratory. Aerodynamic fairings and payload attachments were adapted for the Mercury spacecraft and for compatibility with launch procedures at Launch Complex 14.

Operational history

Operational flights of the LV-3B began with uncrewed tests and proceeded to orbital missions during Project Mercury between 1960 and 1963. Early missions included orbital attempts, suborbital tests, and the first successful American orbital flight by John Glenn on Mercury-Atlas 6. Launches were conducted from Cape Canaveral and managed jointly by NASA flight directors, Eastern Test Range controllers, and Military Air Transport Service support elements. Failures on certain flights prompted investigations by panels including representatives from NASA, Department of Defense, and industry contractors; corrective actions drew on expertise from Lewis Research Center and Jet Propulsion Laboratory technicians. The final LV-3B missions concluded as newer boosters like the Titan II GLV and heavier Atlas derivatives entered service.

Role in Project Mercury

Within Project Mercury, the LV-3B served as the primary orbital launch vehicle enabling America’s first manned orbital capability. The rocket supported mission profiles developed by Mercury Program Office teams led by Robert Gilruth and coordinated crew assignments involving the Mercury Seven including Scott Carpenter, Wally Schirra, and Gus Grissom. The LV-3B’s integration with the Mercury capsule permitted in-flight aborts, contingency reentry trajectories, and recovery procedures executed by USS Noa-class naval task forces and United States Navy recovery squadrons. Its performance informed mission planning used for orbital rendezvous studies at Manned Spacecraft Center and influenced scheduling at the Merritt Island Launch Area.

Variants and modifications

Although the LV-3B was a specific man-rated Atlas, it descended from numerous Atlas variants including the Atlas D and Atlas B testbeds; modifications accrued from iterative fixes introduced after early launch anomalies investigated by teams from Convair and General Dynamics engineering. Changes included reinforcements to the propellant tank venting systems, updates to turbopump designs influenced by Rocketdyne field data, and avionics alterations using components sourced from Hughes and Bendix Corporation. Special mission-configured variants accommodated different telemetry suites for flights coordinated with Naval Research Lab instrumentation or military payload tests overseen by Air Force Systems Command representatives.

Launch vehicle integration and procedures

Integration of the LV-3B required coordinated operations at Launch Complex 14 including stage stacking, capsule mating, and preflight checkout executed by contractors and NASA launch crews. Countdown procedures combined Atlas missile heritage protocols from Strategic Air Command staging practices with human-rated safety measures reviewed by Flight Safety Review Board panels. Preflight simulations ran at Mission Control Center facilities and at Convair test stands where tank pressurization, engine ignition sequencing, and flight-control redundancy checks mirrored procedures later codified for Gemini and Apollo programs. Recovery forces from United States Navy and Atlantic Fleet units trained for capsule retrieval and medical support under plans coordinated with Naval Air Station squadrons.

Legacy and historical significance

The LV-3B occupies a pivotal place in early American crewed spaceflight history as the booster that enabled the United States to place citizens into orbit, shaping public perceptions during the Space Race against the Soviet Union. Technical lessons from its human-rating influenced later launchers such as the Titan II GLV, Atlas-Centaur evolutions, and designs pursued by contractors later merged into General Dynamics and successor aerospace firms. Achievements using the LV-3B fed institutional experience at NASA, advanced guidance hardware from MIT Instrumentation Laboratory, and recovery doctrine for naval operations. The vehicle is commemorated in aerospace histories preserved by the National Air and Space Museum and by archival collections at Smithsonian Institution repositories and remains a subject of study in analyses by historians associated with Kennedy Space Center and the Aerospace Corporation.
