Titan II GLV

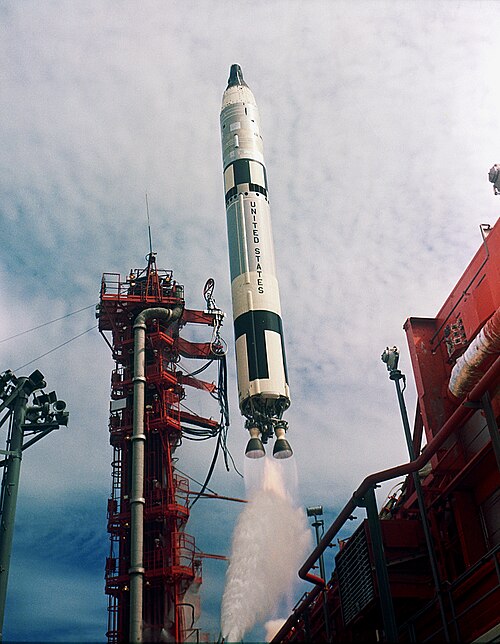

Titan II GLV
NASA/KSC · Public domain · source
Name	Titan II GLV
Country	United States
Manufacturer	Martin Marietta
Function	Expendable launch vehicle
Family	Titan II
Status	Retired
First launch	1964-03-23
Last launch	1966-11-12
Launches	10

Titan II GLV

The Titan II GLV was an American two-stage, liquid-fueled expendable launch vehicle used to place crewed Project Gemini spacecraft into Earth orbit during the 1960s. Derived from the LGM-25C Titan II intercontinental ballistic missile developed by Martin Company and later produced by Martin Marietta, the GLV supported missions flown from Cape Canaveral Air Force Station and involved organizations such as NASA, the United States Air Force, and the Federal Aviation Agency. The vehicle played a critical role in advancing Project Gemini rendezvous, docking, and extravehicular activity capabilities that preceded Apollo program lunar operations.

Development and Design

Development of the GLV began as an adaptation of the operational LGM-25C Titan II ICBM, modified under contracts awarded by United States Department of Defense and NASA to meet the requirements of Project Gemini. Engineering changes introduced by Glenn L. Martin Company and later Martin Marietta included structural reinforcement, guidance system modification, and safety upgrades to support human-rating as stipulated by Mercury Seven-era standards and later crewed flight directives from NASA Administrator leadership. Program managers coordinated with facilities at Vandenberg Air Force Base and Cape Canaveral for test and launch preparations, integrating hardware oversight from the Aerojet General Corporation and avionics from firms contracting with Space Task Group engineers.

Launch Vehicle Configuration

The GLV configuration retained the Titan II’s two-stage layout with hypergolic propellants—Aerozine 50 fuel and dinitrogen tetroxide oxidizer—fed by turbopump assemblies designed by Rocketdyne subcontractors. The first stage housed twin LR-87 engines while the second stage used an LR-91 variant, with guidance provided by an inertial navigation system adapted from military variants and inspected by engineers familiar with Minuteman guidance concepts. Modifications for crew safety included a standardized ejection and abort system interface coordinated with McDonnell Aircraft Corporation spacecraft systems, additional instrumentation for range tracking by Eastern Test Range sensors, and reinforced interstage structure compatible with Gemini Agena Target Vehicle rendezvous planning.

Gemini Missions

Titan II GLV launched the majority of crewed Project Gemini flights, including milestone missions that demonstrated long-duration flight, on-orbit maneuvering, and deep-space operational techniques practiced ahead of the Apollo–Soyuz Test Project and Skylab era. Crewed missions launched on the GLV integrated procedures developed with flight crew drawn from NASA Astronaut Group 2 and mission control operations centered at Manned Spacecraft Center in Houston. The vehicle supported EVA by astronauts such as those from Gemini IV and docking practice with uncrewed and crewed targets, informing subsequent rendezvous profiles used during Apollo 11 preparations and training regimens at Naval Ordnance Test Station logistical facilities.

Operational History and Performance

Operational performance of the GLV was generally reliable, enabling rapid cadence for the ten configured launches between 1964 and 1966 from launch complexes at Cape Canaveral Air Force Station Launch Complex 19 and supported by recovery and tracking assets from United States Navy task groups. Telemetry and range safety coordination were managed jointly by NASA Kennedy Space Center teams and Air Force Eastern Test Range controllers, while postflight inspections were conducted by contractors experienced in Atlas (rocket family) and Saturn I hardware. The success of GLV flights contributed directly to meeting timelines imposed by the National Aeronautics and Space Act objectives and to strategic planning by Johnson Space Center mission planners.

Safety, Failures, and Incidents

Despite extensive modifications for human-rating, the GLV experienced anomalies including a high-profile uncrewed failure during early test flights and a few in-flight irregularities traced to turbopump and guidance actuators—areas studied by engineers from General Dynamics and component suppliers like Aerojet and Hercules Powder Company. Safety reviews involved representatives from NASA Safety Advisory Group and Air Force Systems Command, prompting design refinements to propellant plumbing, pressure relief systems, and range abort protocols. Investigation boards referenced lessons from earlier programs such as Mercury and applied findings to crew escape and emergency procedures rehearsed at facilities tied to Naval Air Systems Command and contractor test ranges.

Decommissioning and Legacy

After fulfilling its role for Project Gemini, the Titan II GLV fleet was retired as NASA transitioned to vehicles associated with the Apollo program and as strategic ICBM inventories evolved under arms control dialogues involving Department of State negotiators. Surviving components and documentation influenced later civilian and military launchers produced by Martin Marietta and successor companies, and lessons learned informed human-rating criteria applied to subsequent vehicles like the Space Shuttle and modern commercial launchers developed by firms such as Boeing and Lockheed Martin. The GLV’s contributions remain cited in historical records held by institutions including the Smithsonian Institution and the National Air and Space Museum.
