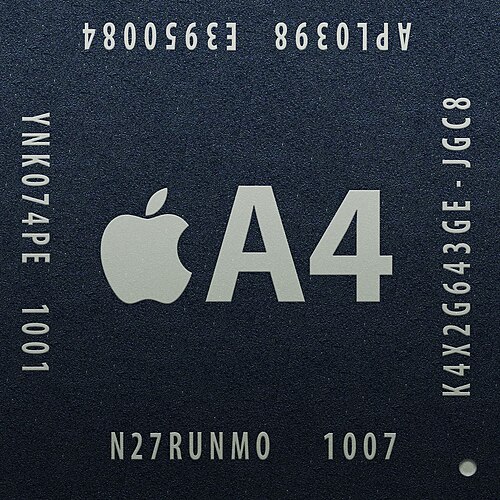

Apple A4

Apple A4
Caspertheghost at English Wikipedia · Public domain · source
Name	A4
Designer	Apple Inc.
Manufacturer	Samsung Electronics
Introduced	2010
Architecture	ARMv7-A
Process	45 nm
Clock speed	800 MHz (typical)
L1 cache	32 KB I-cache, 32 KB D-cache
L2 cache	640 KB
Gpu	PowerVR SGX535

Apple A4 The A4 is a system-on-chip used in consumer devices introduced in 2010, combining an ARM-architecture CPU and a PowerVR GPU on a single die. It marked a shift in Apple Inc.'s approach to vertical integration, influencing product strategy across the iPhone, iPad, and iPod lines and shaping relationships with suppliers like Samsung Electronics and TSMC. The chip played a role in competitive positioning against platforms from Qualcomm, NVIDIA, and Intel Corporation.

Background and development

Apple developed the A4 during a period of rapid expansion in mobile computing, following the success of the iPhone (1st generation) and preceding the launch of the iPad (1st generation). Development involved coordination between Apple Inc. design teams in Cupertino, California, fabrication partners such as Samsung Electronics in South Korea, and middleware providers including Imagination Technologies for GPU licensing. The project leveraged architectural work from the ARM Limited ecosystem and intersected with broader industry trends led by companies like Google, Microsoft, Research In Motion, and HTC Corporation.

Design and architecture

The A4 implements the 32-bit ARMv7-A instruction set and features a single-core CPU based on licensed microarchitecture elements from the ARM11 family progression culminating in designs similar to ARM Cortex-A8. On-chip memory architecture includes separate 32 KB instruction and data L1 caches and a unified ~640 KB L2 cache; graphics duties are handled by a PowerVR SGX535 GPU licensed from Imagination Technologies. The SoC integrates controllers for LPDDR memory, display pipelines used in devices like the iPad (1st generation), and peripheral interfaces compatible with NAND flash and Wi‑Fi modules from vendors such as Broadcom and Murata Manufacturing. Fabrication used a 45 nm process node at Samsung Electronics foundries, aligning with contemporary industry nodes used by firms including Intel Corporation and GlobalFoundries.

Performance and benchmarks

At stock clock rates (commonly 800 MHz), the A4 delivered single-threaded CPU performance competitive with contemporary mobile chips from Qualcomm (Snapdragon S1 variants) and class-leading power efficiency versus some NVIDIA Tegra generations. Graphics performance of the PowerVR SGX535 enabled smooth compositing and gaming experiences in titles available on the App Store at the time, competing with GPUs from Adreno-equipped platforms. Benchmarks reported by independent testers compared A4-based devices to rivals from Samsung Electronics-branded phones and tablets, showing advantages in certain JavaScript engines used by Mobile Safari and in UI responsiveness measured against products from HTC Corporation and Motorola Mobility.

Devices using the A4

Apple deployed the A4 in several mainstream products, most notably the iPad (1st generation) tablet, the iPhone 4 (CDMA) variant sold alongside the GSM model, and the iPod Touch (4th generation). These devices paired the A4 with displays, batteries, and radios sourced from suppliers including LG Display, Sony Mobile, Broadcom, and Skyworks Solutions. The chip's integration supported form factors and industrial designs developed by Jonathan Ive's teams within Apple Inc. and influenced product roadmaps across subsequent generations.

Power consumption and thermal characteristics

Designed for portable hardware, the A4 emphasized energy efficiency through process-node advantages at 45 nm and architectural choices characteristic of ARMv7-A cores. Typical operating points allowed extended battery life in reading, video playback, and standby compared with larger x86 platforms from Intel Corporation found in notebooks. Thermally, A4-based devices managed dissipation with passive cooling and enclosure designs refined by Apple Inc. industrial engineering, producing lower surface temperatures than some contemporary tablets and phones from Samsung Electronics and Motorola Mobility under similar workloads.

Reception and impact

The A4 was received as a milestone in Apple Inc.'s strategy to control key silicon, affecting competitive dynamics with firms such as Qualcomm, NVIDIA, and Intel Corporation. Reviewers and analysts at outlets covering consumer electronics and mobile computing noted its role in enabling the fluid interfaces of iOS and the first-generation iPad (1st generation). The chip set the stage for Apple's later in-house silicon initiatives that culminated in families like the A5, A6, and eventually the Apple Silicon transition impacting product lines including the MacBook Air and MacBook Pro.
