Name	Agena

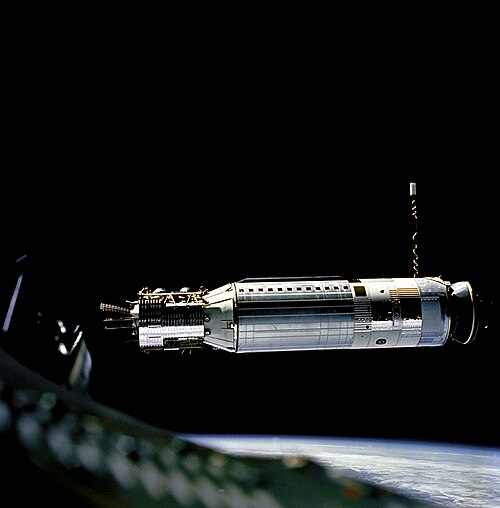

Caption	Agena targeting vehicle for the CORONA program
Country	United States
Manufacturer	Lockheed (later Lockheed Martin)
First flight	1959-02-28
Status	Retired
Height	6.4 m
Diameter	1.52 m
Thrust	16.000 lbf (Agena D main engine)
Propellant	Hypergolic nitrogen tetroxide / Aerozine 50

Agena (rocket stage)

The Agena was an American upper rocket stage and spacecraft bus developed by Lockheed that served as a versatile orbital platform, satellite bus, and docking target during the Cold War. Introduced in 1959, Agena supported programs such as CORONA, Project Gemini, Gambit, and numerous Naval Research Laboratory and Air Force missions, combining propulsion, guidance, power, and payload support. Agena's long operational lifespan bridged early reconnaissance, lunar precursor efforts, and civil science missions, influencing designs by Northrop Grumman and later NASA projects.

Development and design

Developed by Lockheed under contract with the USAF and ARPA, Agena originated as a response to requirements from Wernher von Braun-era advocates and planners seeking a restartable upper stage for boosters like Atlas and Thor. Design leadership included engineers drawn from projects at Convair and Douglas, and incorporated lessons from early vehicles such as Vanguard and Juno I. Agena combined a restartable bell engine, an integrated guidance and control system derived from Autonetics, and structural features to carry reconnaissance payloads like those for Lockheed U-2-era planners.

The vehicle was conceived as both an upper stage and an autonomous spacecraft bus capable of precise orbital insertion and long-duration stationkeeping to support rendezvous with Gemini and boost payloads for the NRO. Interfaces were created to mate with first stages including Atlas LV-3B, Thor-Agena, and later Titan IIIC, while avionics employed inertial systems similar to those developed at MIT and Honeywell.

Technical specifications

Agena variants shared a cylindrical pressure-stabilized structure approximately 1.52 m in diameter and 6.0–6.7 m in length, with thrust provided by a restartable hypergolic engine burning Aerozine 50 and nitrogen tetroxide. Guidance used an inertial measurement unit influenced by Autonetics designs, with avionics compatible with Air Force Space Systems Division standards. Power came from chemical batteries and solar panels on later models, permitting mission durations from hours to several months for reconnaissance flights such as those supporting CORONA and Hexagon.

Mass properties varied: early Agena A/B stages had lower dry mass and less propellant than the improved Agena D, which featured structural reinforcement, extended propellant tanks, and thermal control technology adapted from Bell Labs and Grumman experiments. Telemetry and command links conformed with Minitrack and later S-band ground segments developed by JPL and TRW.

Operational history

Agena first flew in 1959 as part of pioneering attempts to place reconnaissance payloads into orbit during the early Space Race between the United States and the Soviet Union. Agena-supported missions conducted critical development of orbital reconnaissance for the CIA-backed CORONA program and enabled the United States to achieve long-duration orbital operations for the NRO. During the 1960s Agena served as the docking target for Project Gemini rendezvous trials, directly influencing procedures used by Apollo.

Through the 1970s and into the 1980s, improved Agena variants continued to support imaging platforms, signals intelligence payloads, and scientific missions flown by agencies including NASA, USAF, and the NRL. Agena saw widespread operational use with both Atlas-Agena and Thor-Agena launch systems and conducted orbital maneuvers, attitude control, and payload support across hundreds of missions until phased out as newer bus designs from Aerojet Rocketdyne and Pratt & Whitney and satellite buses from Space Systems/Loral superseded it.

Notable missions and applications

Agena served as the primary upper stage for the early Corona photographic reconnaissance missions, supporting flights that produced the first American space-based images of the Soviet Union. It functioned as the target vehicle for the Gemini program's rendezvous missions, enabling crews such as those in Gemini 6A and Gemini 8 to practice proximity operations relevant to Neil Armstrong-era lunar objectives. Agena also supported the Gambit and Hexagon programs, bolstering strategic reconnaissance during crises like the Cuban Missile Crisis aftermath and Cold War surveillance.

Civil science and technology demonstrations used Agena-derived buses for missions involving the NRL, NASA Earth observation experiments, and early communication satellites developed in cooperation with Bell Labs and IT&T. Agena platforms enabled experiments in long-duration propulsion restarts, attitude control, and solar power systems that informed successors such as the Inertial Upper Stage and contributed to technologies later applied on Skylab and ISS modules.

Variants and modifications

Several major Agena variants existed: Agena A (initial testbed), Agena B (improved avionics and restart capability), and Agena D (structurally reinforced production standard). Each variant incorporated modifications for specific launch vehicles and missions; for example, Agena D included enlarged propellant tanks and thermal control upgrades for extended reconnaissance flights supporting the NRO. Subvariants featured mission-specific payload adapters, camera housings for KH-series systems, and docking equipment compatible with Gemini.

Modifications over time integrated more robust guidance hardware influenced by Honeywell and Autonetics, enhanced S-band telecommunications from TRW, and solar arrays developed in coordination with Spectrolab. Some Agena buses were adapted as free-flying science platforms managed by GSFC and the JPL for atmospheric and geophysical research.

Recovery and reuse initiatives

Although Agena stages were not routinely recovered as whole vehicles, recovery-related initiatives influenced later reusable upper stage concepts pursued by organizations like NASA and DARPA. Agena-derived technology informed programs exploring on-orbit servicing, capture, and refurbishment, including concepts tested by Orbital Sciences Corporation and later by Northrop Grumman with servicing missions that echoed Agena's role as a docking target. Recovery experiments in the era examined controlled reentry techniques and partial hardware retrieval that contributed to policies for satellite servicing and influenced the design of reusable upper stages and modular spacecraft architectures in subsequent decades.
