AN/FPS-117

AN/FPS-117
Nick-D at English Wikipedia · CC BY-SA 3.0 · source
Name	AN/FPS-117

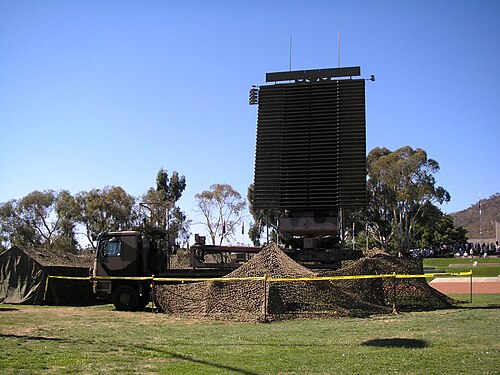

Caption	Long-range 3D air surveillance radar
Country	United States
Introduced	1980s
Manufacturer	Westinghouse Electric Corporation; later Lockheed Martin
Type	3D phased-array radar
Frequency	L-band
Range	typically 250+ nmi (460+ km) dependent on variant
Altitude	high-altitude coverage
Azimuth	360°
Elevation	3D beamforming
Power	solid-state transmitter modules
Platform	fixed, remote unattended sites, shipboard adaptations

AN/FPS-117 is a long-range, solid-state, electronically scanned 3D air surveillance radar developed in the late Cold War era to provide automated, unattended detection and height-finding for strategic and tactical air defense. It replaced older mechanically scanned radars used by the North American Aerospace Defense Command and Royal Air Force installations, and influenced modern sensor network architectures used by organizations like the NATO air command and national airspace authorities. The system is notable for its remote unattended operation, modular construction, and export to numerous countries including Canada, Australia, and Norway.

Development and Design

Development began in response to requirements from the United States Air Force and allied partners to modernize early warning and surveillance after experiences in the Yom Kippur War and technological shifts evident in the Vietnam War and confrontations during the Cold War. Contractors such as Westinghouse Electric Corporation and later Lockheed Martin pursued solid-state solutions inspired by advances from projects at Bell Labs and designs used by the Raytheon Company. The program aimed to replace legacy rotodomes and gap-filling sites fielded by the Semi-Automatic Ground Environment era with a low-maintenance, remote-capable sensor compatible with command systems like the Joint Surveillance System and European NATO sensor nets.

Design choices emphasized passive cooling, modular line-replaceable units influenced by logistics concepts from United States Navy shipboard practice, and automated health monitoring inspired by early remote telemetry programs at NASA installations. The antenna and transmitter architecture adopted phased-array principles previously explored in experiments at MIT Lincoln Laboratory and incorporated low-probability-of-intercept considerations discussed in doctrine papers from Air Force Systems Command.

Technical Description

The radar is a 3D L-band system employing electronically steered beamforming for elevation and mechanical rotation for azimuth, offering 360° coverage with revisit intervals suited to high-altitude track continuity required by air defense agencies such as NORAD and national air authorities like Transport Canada. Its architecture uses modular solid-state transmitter/receiver assemblies and digital signal processors that perform clutter rejection algorithms evolved from research at Carnegie Mellon University and Stanford Research Institute.

Key subsystems include an antenna array with phased subarrays, an elevation beamformer, a data processing suite compatible with interfaces used by the Battle Control System families, and an automated Remote Communications Outlet patterned after liaison concepts from Federal Aviation Administration facilities. The radar supports moving target indication, pulse compression, and frequency agility techniques similar to those developed at Johns Hopkins University Applied Physics Laboratory. Environmental hardening allowed siting in Arctic locations used by Royal Canadian Air Force and Norwegian forces.

Operational History

The system entered service during the 1980s, replacing older long-range radars in networks maintained by organizations such as North Atlantic Treaty Organization air defense commands and the United States Air Force Aerospace Defense Command successors. Deployments featured in modernization programs for installations previously associated with the Pinetree Line, Mid-Canada Line, and DEW Line infrastructures. Notable operational adaptations occurred during conflicts and crises monitored by sensors tied into command centers at Cheyenne Mountain Complex, Northwood Headquarters, and national air operations centers.

Throughout its service life, the radar contributed to peacetime airspace surveillance used by agencies like Civil Aviation Authority equivalents and supported coalition operations coordinated by entities such as Allied Air Command. Field experience drove software and hardware upgrades managed by contractors with oversight from procurement offices like the Defense Contract Management Agency.

Variants and Upgrades

Several variants and upgrade packages were developed to meet specific operator needs, including maritime adaptations inspired by U.S. Navy phased-array efforts, Arctic-hardened shelters for polar stationing akin to gear used by Norwegian Polar Institute research stations, and electronic counter-countermeasure suites informed by studies at RAND Corporation. Upgrades incorporated digital receivers, improved processors from vendors in the Silicon Valley ecosystem, and network-centric interfaces compliant with standards championed by North Atlantic Treaty Organization interoperability committees.

Lifetime extensions included remote unattended operation suites, diagnostic packages for logistics support centers modeled on practices at Defense Logistics Agency, and export variants tailored to customers like Australia and India, with integration work overseen by national defense ministries and indigenous industry partners.

Global Operators and Deployments

Operators have included allied air forces and civil-military agencies across continents: deployments in Canada, United States, Norway, Australia, India, and nations in South America and Africa under various defense cooperation agreements. Sites often supplemented national radar networks and were sited at former Cold War early-warning locations such as those redeployed from the DEW Line and integrated into multinational command structures including NORAD and NATO maritime surveillance initiatives.

Export and support arrangements involved systems acquisition, in-theater training programmed by contractor teams, and sustainment partnerships with national defense organizations and state-owned enterprises.

Legacy and Impact

The radar influenced subsequent generations of long-range surveillance systems by demonstrating the operational benefits of solid-state transmitters, modular line-replaceable units, and automated remote operation—principles later embodied in systems procured by United States Air Force modernization roadmaps and NATO sensor frameworks. It helped transition air surveillance doctrine from manpower-intensive networks like the SAGE era toward distributed, networked sensors interoperable with command nodes such as the Joint Forces Command headquarters. Its widespread export fostered industrial partnerships and capability development within allied defense sectors, informing procurement strategies and technological pathways pursued by national laboratories and defense firms.
