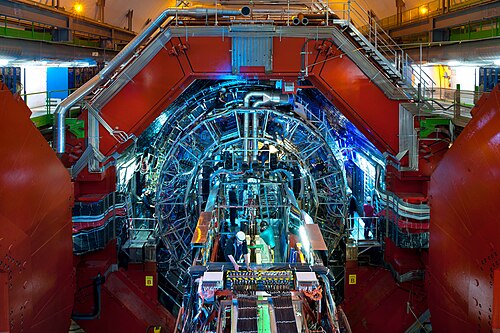

ALICE experiment
Antonio Saba · CC BY-SA 3.0 · source
Name	ALICE
Location	CERN, Point 2, Large Hadron Collider
Established	2008
Type	Particle detector

Contents

ALICE experiment The ALICE experiment is a heavy-ion detector at the Large Hadron Collider located at CERN near Geneva. Designed to study the quark–gluon plasma created in collisions of heavy nuclei such as lead and gold, ALICE complements measurements from ATLAS (particle detector), CMS (particle detector), and LHCb. The collaboration includes institutions from across Europe, Asia, North America, South America, Africa, and Oceania and has produced results on high-temperature quantum chromodynamics relevant to RHIC and earlier experiments at CERN SPS.

Overview

ALICE was conceived in the 1990s to probe the deconfined state of quarks and gluons predicted by Quantum chromodynamics at extreme energy densities similar to conditions shortly after the Big Bang. The apparatus sits at Point 2 (LHC), integrated into the LHC accelerator complex alongside experiments such as ATLAS (particle detector), CMS (particle detector), and LHCb. ALICE's physics program overlaps with measurements from PHENIX, STAR, NA61/SHINE, and fixed-target facilities like SPS while providing unique capabilities for low-momentum particle identification and tracking. The collaboration includes universities and laboratories such as Lawrence Berkeley National Laboratory, Brookhaven National Laboratory, Institut de Physique Nucléaire d'Orsay, Czech Technical University in Prague, University of Birmingham, University of Tokyo, and Universidad de Buenos Aires.

ALICE features a cylindrical layout optimized for tracking, vertexing, and particle identification within a solenoidal magnetic field provided by the L3 (detector) magnet inherited from the LEP era. The central barrel contains the Inner Tracking System, consisting of layers of silicon pixel detector, silicon drift detector, and silicon strip detector modules developed by groups at INFN, CERN, GSI Helmholtz Centre for Heavy Ion Research, and IFIC. Surrounding the ITS, the Time Projection Chamber offers three-dimensional tracking and dE/dx particle identification with contributions from NIKHEF, University of Frankfurt, and University of Heidelberg. The Time-Of-Flight detector employs MRPC technology with major work by UTwente, University of Heidelberg, and SUBATECH. The Transition Radiation Detector provides electron identification supported by teams from CERN, University of Strasbourg, and Université de Nantes. Forward detectors include the VZERO scintillator arrays, the Zero Degree Calorimeter developed with BNL and IHEP, and the Muon Spectrometer comprising absorber, tracking chambers, and trigger chambers built with expertise from Universidad de Sevilla, University of Turin, and Panjab University. Calorimetry and rare-probe upgrades involve groups from ETH Zurich, Imperial College London, University of California, Berkeley, and University of São Paulo.

Primary aims target characterization of the quark–gluon plasma via observables like collective flow, jet quenching, heavy-flavour production, quarkonia suppression and regeneration, and strangeness enhancement studied in collisions of lead–lead, proton–lead, and proton–proton. ALICE measurements of elliptic flow (v2) and higher-order harmonics linked to initial geometry fluctuations have been compared with predictions from hydrodynamics and models developed at MIT, Princeton University, University of Minnesota, and Stony Brook University. Jet suppression and modifications informed by comparisons with results from ATLAS (particle detector) and CMS (particle detector) have provided constraints on parton energy loss formalisms tested at Brookhaven National Laboratory and Lawrence Berkeley National Laboratory. Heavy-quark production studies involving charm and bottom quarks, and quarkonium states like J/ψ and Υ families, have engaged theory groups at Institute for Nuclear Theory and CEA Saclay. Measurements of long-range correlations in small systems prompted theoretical work at University of Barcelona and Columbia University on collective effects versus initial-state models like the Color Glass Condensate. Observations of enhanced production of multi-strange baryons influenced interpretations by teams at University of Copenhagen and Tokyo Institute of Technology.

ALICE employs a multi-level trigger and a data acquisition system designed to handle high-multiplicity heavy-ion events, integrating front-end electronics developed at CERN, GSI Helmholtz Centre for Heavy Ion Research, and Budker Institute of Nuclear Physics. Raw data are recorded and processed through the Worldwide LHC Computing Grid with Tier-0 services at CERN and Tier-1 centers including CCIN2P3, INFN CNAF, GridKa, TRIUMF, BNL and Fermilab. Offline reconstruction frameworks such as AliRoot and AliPhysics are maintained by software groups across University of Oslo, Sezione di Bari, Institute of Physics (ASCR), and Yonsei University. Recent moves toward online calibration and real-time analysis involve developers at European Organization for Nuclear Research, University of Birmingham, and Savannah River National Laboratory.

ALICE operated through LHC Run 1 and Run 2 and underwent major upgrades during the Long Shutdown 2 (LS2) to prepare for Run 3 and Run 4, coordinated by teams from CERN and national laboratories such as INFN, GSI Helmholtz Centre for Heavy Ion Research, Czech Technical University in Prague, and STFC Rutherford Appleton Laboratory. Upgrades include a new Inner Tracking System employing monolithic active pixel sensors developed at PCBtech, CERN, and IPHC Strasbourg, an upgraded Time Projection Chamber with GEM readout co-developed by CERN and University of Bonn, and improvements to the Online-Offline (O2) computing model influenced by designs from FNAL and CCIN2P3. Detector commissioning involved calibration groups at University of Zagreb, University of Cape Town, University of São Paulo, and Tata Institute of Fundamental Research.

The collaboration governance comprises an elected spokesperson, an institutional board, and physics working groups with contributions from hundreds of institutes including Universität Heidelberg, University of Birmingham, Niels Bohr Institute, Kolkata University, Petersburg Nuclear Physics Institute, Seoul National University, University of Warsaw, University of Athens, Czech Technical University in Prague, and Universidad Nacional Autónoma de México. Funding agencies and national bodies such as European Research Council, Deutsche Forschungsgemeinschaft, Conseil Européen de la Recherche, National Science Foundation, Department of Energy (United States), Ministry of Education, Culture, Sports, Science and Technology (Japan), Russian Foundation for Basic Research, and Consejo Nacional de Ciencia y Tecnología support hardware, operations, and personnel. Outreach and education activities link to museums and centers like Science Museum, London, Explora (Turin), Science Centre Singapore, and university public engagement offices.
