AH-64D Apache Longbow

AH-64D Apache Longbow

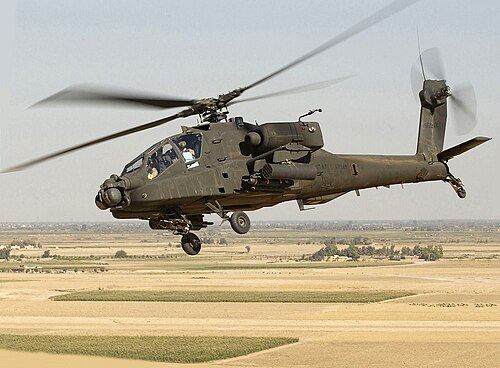

"Photo Courtesy of U.S. Army" - by Tech. Sgt. Andy Dunaway · Public domain · source
Name	AH-64D Apache Longbow
Type	Attack helicopter
Manufacturer	Boeing Boeing Helicopters
First flight	1995
Introduced	1997
Status	Active
Primary user	United States Army
Produced	1995–2012

AH-64D Apache Longbow is an advanced member of the AH-64 family developed for enhanced target acquisition, survivability, and networked fires. It entered service with the United States Army in the late 1990s and has been exported to multiple allied nations, participating in conflicts such as the Iraq War, the War in Afghanistan (2001–2021), and operations supporting Operation Desert Storm. The platform integrates upgraded sensors, weapons, and avionics to operate in contested environments alongside platforms like the M1 Abrams, F-15E Strike Eagle, and UH-60 Black Hawk.

Development and Design

The AH-64D program evolved from requirements set by the United States Army Aviation Branch and procurement guidance from the Department of Defense and Defense Advanced Research Projects Agency. Initial development tied to vendors such as McDonnell Douglas and later Boeing, with significant involvement from subcontractors including Northrop Grumman, Raytheon Technologies, and Honeywell International. Design priorities incorporated lessons from the Gulf War (1990–1991), the Yom Kippur War, and Cold War-era doctrine influenced by NATO planning and the U.S. Army Training and Doctrine Command. Airframe modifications addressed rotor hub improvements, transmission enhancements, and crashworthiness standards mandated by Federal Aviation Administration guidance translated into military requirements overseen by the Defense Acquisition University processes.

Avionics and Systems (Longbow Radar and Sensors)

Central to the AH-64D is the AN/APG-78 Longbow millimeter-wave radar developed by Northrop Grumman and Raytheon. The radar supports automatic target detection and designation under degraded visual conditions informed by experience from the Gulf War (1990–1991) and subsequent contingency operations reviewed by Congressional Research Service reports. Sensor fusion pairs the Longbow with the Target Acquisition and Designation System (TADS) and the Pilot Night Vision Sensor (PNVS) sourced from contractors like Lockheed Martin and Thales Group, enabling integration with weapon systems certified through Joint Chiefs of Staff interoperability standards. Avionics architecture uses mission computers, datalinks compatible with Link 16, and interfaces that allow coordinated engagement with AH-1Z Viper and fixed-wing platforms, following directives from the Joint Requirements Oversight Council. Electronic warfare suites and countermeasures are integrated with support from companies such as BAE Systems and Rockwell Collins to meet survivability guidance from the Office of the Secretary of Defense.

Armament and Performance

The AH-64D carries a 30 mm M230 Chain Gun produced by Rheinmetall Defence under U.S. license and offers external stores on wing pylons for AGM-114 Hellfire missiles manufactured by Lockheed Martin Missiles and Fire Control and Hydra 70 rockets. The Longbow radar enables fire-and-forget capability for radar-guided Hellfire variants, improving engagement timelines emphasized in U.S. Army Field Manual doctrine. Performance metrics include cruising profiles coordinated with Air Tasking Order cycles and logistics planning by the Quartermaster Corps, with tactical employment alongside armored units such as the Stryker brigade and combined-arms teams from III Corps. Powerplant and transmission maintenance were standardized to maintenance manuals that align with Army Materiel Command lifecycle management.

Operational History

AH-64D units deployed in major theaters under commands like U.S. Central Command and U.S. European Command, supporting campaigns including Operation Iraqi Freedom and Operation Enduring Freedom (Afghanistan). Apaches participated in close air support, reconnaissance, and convoy overwatch missions coordinated with Combined Joint Task Force staffs and coalition partners including British Army, Israeli Air Force liaison elements, and NATO rapid reaction forces. Operational evaluations were guided by lessons learned reports from the Rand Corporation and after-action reviews published by the Institute for Defense Analyses.

Variants and Upgrades

The AH-64D served as the basis for modernization efforts culminating in the AH-64E program managed by U.S. Army Futures Command and procurement offices within the Defense Logistics Agency. Numerous upgrade packages involved suppliers such as General Electric for engines, Moog Inc. for flight controls, and L3Harris Technologies for avionics refreshes. Internationally, retrofit and sustainment contracts were awarded to national defense establishments in countries including United Kingdom, Netherlands, and South Korea.

Operators and Deployment

Primary operators include the United States Army, while export customers comprise the British Army, the Israel Defense Forces, the Egyptian Air Force, the Royal Netherlands Air Force, the United Arab Emirates Armed Forces, and the Republic of Korea Army. Deployments to bases such as Fort Hood, Fort Campbell, RAF Benson, and forward operating bases under Combined Joint Task Force logistics were coordinated through host-nation agreements and Status of Forces Agreements negotiated by the United States Department of State.

Notable Incidents and Evaluations

Incidents involving AH-64D platforms were investigated by boards convened under the Army Safety Office and the National Transportation Safety Board where appropriate, with technical findings informing safety bulletins and airworthiness directives coordinated with Federal Aviation Regulations adaptation for military use. Evaluations published by think tanks such as the Center for Strategic and International Studies and procurement reviews by the Government Accountability Office influenced follow-on acquisition decisions and upgrade roadmaps directed by the Under Secretary of Defense for Acquisition and Sustainment.
