AH-1Z Viper

AH-1Z Viper
Cpl. Jonathan L. Gonzalez · Public domain · source
Name	AH-1Z Viper

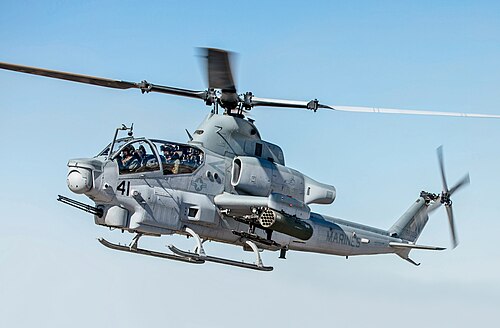

Caption	AH-1Z Viper in flight
Type	Attack helicopter
Manufacturer	Boeing
First flight	2000
Introduced	2010
Status	Active

AH-1Z Viper The AH-1Z Viper is a twin-engine, four-blade attack helicopter developed for the United States Marine Corps as an advanced derivative of the AH-1W SuperCobra. It serves as a primary rotorcraft for close air support, armed escort, anti-armor, and armed reconnaissance missions alongside platforms such as the Bell UH-1Y Venom, AV-8B Harrier II, and F/A-18 Hornet. The type integrates avionics, sensors, and weapons systems compatible with programs and systems fielded by the Department of the Navy, United States Department of Defense, and allied services.

Development

The AH-1Z traces lineage to the Bell Helicopter Textron AH-1 Cobra family and was advanced under programs involving Boeing Defense, Space & Security following corporate reorganization. Development was influenced by operational lessons from Operation Desert Storm, Operation Iraqi Freedom, and Operation Enduring Freedom, which exposed requirements for improved situational awareness, survivability, and interoperability with platforms such as the CH-53E Super Stallion and MV-22 Osprey. The United States Marine Corps initiated the H-1 upgrade program, pairing the AH-1Z with the UH-1Y modernization effort, leveraging common components to reduce lifecycle costs and streamline logistics with suppliers including Pratt & Whitney and Rockwell Collins. Test and evaluation phases involved trials at Patuxent River Naval Air Station and coordination with Naval Air Systems Command before full-rate production decisions.

Design and features

The AH-1Z features a four-blade, bearingless, composite main rotor system derived from modern rotorcraft research programs and shared with the UH-1Y Venom, improving lift, vibration reduction, and cruise speed relative to predecessors like the AH-1W. The twin General Electric T700 engine turboshafts provide redundancy and power for weapons carriage that includes the 20 mm M197 cannon, AGM-114 Hellfire missiles, AIM-9 Sidewinder air-to-air missiles, and Hydra 70 rockets compatible with pods used by the Royal Navy and Israeli Air Force in allied procurements. Avionics suite centers on a four-axis flight control system, glass cockpit displays by Rockwell Collins, and the Target Sight System integrating forward-looking infrared and laser designator capabilities akin to systems used on the AH-64 Apache and surveillance platforms such as the RQ-7 Shadow. Networking and datalink interoperability support integration with Blue Force Tracking and tactical systems fielded on vessels including Wasp-class amphibious assault ship and America-class amphibious assault ship deck operations.

Operational history

The AH-1Z entered service with Marine Corps squadrons operating from expeditionary bases and amphibious ships, participating in deployments in support of carrier strike groups, expeditionary strike groups, and combined operations with NATO partners including Royal Air Force and Italian Navy aviation contingents. Operational use emphasized armed escort for CH-53K King Stallion and MV-22 Osprey missions, close air support for Marine infantry units during contingencies, and shipboard integration with doctrine influenced by the Marine Air-Ground Task Force concept. The platform has been involved in multinational exercises such as RIMPAC, Operation Trident Juncture, and bilateral training with forces from Japan Self-Defense Forces, Australian Defence Force, and South Korean Armed Forces, demonstrating interoperability with coalition command-and-control structures and weapons compatibility demonstrated historically by collaborations with manufacturers like Raytheon.

Variants and upgrades

Baseline production AH-1Z aircraft have been subjected to iterative upgrades encompassing avionics, countermeasure suites, and weapons integration. Proposed and fielded enhancements include improved electronic warfare packages using technology from Northrop Grumman and sensor fusion developments influenced by programs such as the Joint Strike Fighter initiative for data-linking concepts. Export and foreign military sales discussions have linked the type to potential operators and modifications consistent with procurement practices of countries like Poland and Czech Republic in comparative rotorcraft acquisitions. Incremental upgrades focus on open-architecture mission systems, survivability improvements based on lessons from Operation Desert Shield, and lifecycle sustainment aligned with Defense Acquisition University best practices.

Operators

- United States Marine Corps — primary operator with multiple active attack helicopter squadrons and Marine aviation wings. - Potential export customers have been engaged through Foreign Military Sales channels involving United States Department of State approvals and coordination with partner ministries of defense such as in Central Europe and the Indo-Pacific region.

Specifications

- Crew: Two (pilot and co-pilot/gunner) - Length: 13.97 m (45 ft 10 in) approximate fuselage with rotors folded for shipboard stowage similar to procedures on LHA-class decks - Rotor diameter: 13.41 m (44 ft) four-blade composite system shared with UH-1Y - Engines: Two General Electric T700 turboshafts - Maximum speed: Comparable to contemporary attack helicopters such as the AH-64D Apache Longbow class in cruise and dash regimes - Armament: 20 mm M197 cannon, AGM-114 Hellfire missiles, AIM-9 Sidewinder missiles, Hydra 70 rocket pods; integration with targeting pods and laser-guided munitions employed in coalition operations. - Avionics: Glass cockpit with multi-function displays by Rockwell Collins, target sight systems, night vision compatibility, and datalink suites interoperable with platforms like the F-35 Lightning II and command nodes used in joint operations.
