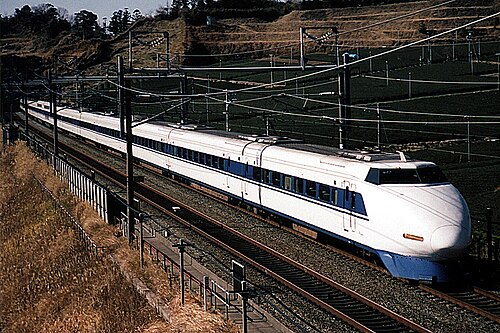

100 Series Shinkansen

100 Series Shinkansen
Sui-setz · CC BY-SA 3.0 · source
Name	100 Series Shinkansen
Service	1985–2012
Yearconstruction	1985–1993
Yearservice	1985
Yearscrapped	2000s–2010s
Numberbuilt	129 vehicles
Formation	6/12 cars per set
Carbody	Aluminium alloy
Doors	2 per side
Maxspeed	220 km/h
Traction	Electric
Electricsystem	25 kV AC
Collectionmethod	Overhead catenary

100 Series Shinkansen The 100 Series was a Japanese high-speed train type introduced by Japanese National Railways in the mid-1980s for use on the Tōkaidō Shinkansen-linked network and subsequent Sanyō Shinkansen services. It combined developments from earlier 0 Series Shinkansen and 200 Series Shinkansen practice with novel aerodynamic nose styling and improved passenger amenities to serve expresses such as the Hikari and later premium Nozomi services. The type played a transitional role during the privatization into JR Central and JR West operations and served until replacement by newer designs like the 300 Series Shinkansen, 500 Series Shinkansen, and 700 Series Shinkansen.

Design and Development

Design work began under Japanese National Railways engineers responding to capacity and speed demands following the 1973 oil crisis and during the technology push stimulated by the 1970 World Expo. The 100 Series incorporated lessons from the 0 Series Shinkansen, 200 Series Shinkansen, and prototype research at the Railway Technical Research Institute and facilities such as Hyōgo Prefecture workshops. Styling featured a distinctive two-level cab section and a multi-stage nose influenced by aerodynamic studies conducted with input from designers who had worked on the TGV programs in France and experimental units evaluated at the Kakogawa Test Center. Interior improvements reflected passenger feedback gathered on Hikari and Kodama services and anticipated the needs of corporate customers traveling between Tokyo, Osaka, and Hiroshima.

Technical Specifications

The aluminium-alloy carbody used construction methods standardized by Nippon Sharyo and Kawasaki Heavy Industries manufacturing plants, while traction equipment was supplied by consortiums including Hitachi and Toshiba. Electrical systems conformed to the 25 kV AC 60 Hz overhead catenary standard employed on the Tōkaidō Shinkansen and Sanyō Shinkansen, with pantographs derived from earlier Shinkansen designs. Bogies and braking systems combined regenerative braking tested by the Railway Technical Research Institute and pneumatic equipment sourced from Nissin Kogyo. The sets had a service maximum of 220 km/h with emergency braking performance meeting standards set by the Ministry of Transport (Japan). Passenger accommodation included Green Car arrangements influenced by luxury standards established by operators like JR Central and amenities comparable to those found on contemporaneous Limited Express services run by Japanese National Railways successor companies.

Variants and Formations

Multiple formations were produced, including 12-car and shortened 6-car sets for different service patterns between Tokyo and western termini such as Hakata. Variants incorporated modifications for Nozomi introduction and winterised equipment for sections influenced by weather patterns near Tōhoku and Chūgoku regions. Manufacturing involved firms such as Kinki Sharyo and Tokyu Car Corporation, and interior packages varied to include dining and reserved seating managed under JR timetable categories like Hikari Rail Star and upgraded Green Car service consistent with practices of JR West. Some sets were later reconfigured for depot duties, test trains for the Centre for Railway Transport and other institutional uses.

Service History

The 100 Series entered revenue service during the era of Japanese National Railways reform and the lead-up to privatization into companies including JR Central and JR West. They operated flagship services including Hikari and trial Nozomi runs on the busiest corridors between Tokyo Station and Shin-Osaka Station, linking with regional hubs such as Nagoya, Kyoto, and Hiroshima Station. The trains participated in timetable innovations overseen by the Ministry of Land, Infrastructure, Transport and Tourism and adapted to corridor capacity increases driven by events like the expansion of Kansai International Airport and urban redevelopment in Osaka. Withdrawals accelerated after the introduction of 700 Series Shinkansen and later N700 Series Shinkansen sets, with final revenue services ending in the early 2010s under JR West management.

Accidents and Incidents

Throughout service the 100 Series experienced incidents investigated by agencies including the Transport Safety Board (Japan) and local police forces. Notable occurrences involved trackside equipment failures, collision-avoidance system responses coordinated with Signalling systems upgrades on the Tōkaidō Shinkansen, and weather-related disruptions tied to Typhoon impacts on western corridors. Investigations influenced subsequent safety retrofits across the Shinkansen fleet and contributed to standards promulgated by the Railway Bureau within the Ministry of Land, Infrastructure, Transport and Tourism.

Preservation and Legacy

Several vehicles have been preserved by museums and heritage groups such as the Railway Museum, Saitama and regional preservation efforts in Hokkaido-adjacent displays and at depots formerly operated by JR West. The 100 Series influenced later rolling stock designs like the 300 Series Shinkansen, 500 Series Shinkansen, and 700 Series Shinkansen in areas of aerodynamics, passenger comfort, and systems integration. Its role during the privatization era links it historically to institutions including Japanese National Railways, JR Central, and JR West, and culturally to major Japanese urban centers such as Tokyo, Osaka, and Hiroshima Station.
