| 500 Series Shinkansen | |
|---|---|
 Mitsuki-2368 · CC BY-SA 3.0 · source | |
| Name | 500 Series Shinkansen |

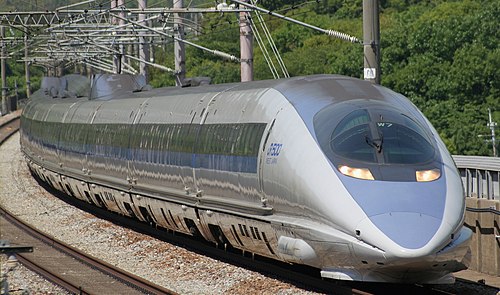

| Caption | 500 Series at a station |
| Service | 1997–present |
| Manufacturer | Hitachi, Kawasaki Heavy Industries, Kinki Sharyo |
| Yearconstruction | 1995–1998 |
| Yearservice | 1997 |
| Numberbuilt | 9 (original 16-car sets), 3 (8-car rebuilt sets) |
| Formation | 16-car (original), 8-car (rebuild) |
| Operator | West Japan Railway Company |
| Lines | Tokaido Shinkansen, Sanyo Shinkansen, Hakata Station |
| Maxspeed | 300 km/h (service), 320 km/h (trial) |
500 Series Shinkansen The 500 Series Shinkansen is a high-speed train type developed for West Japan Railway Company operations on the Tokaido Shinkansen and Sanyo Shinkansen. Introduced in 1997, it combined radical aerodynamic research from Japanan industrial partners with manufacturing by Hitachi, Kawasaki Heavy Industries, and Kinki Sharyo. The design targeted competition with international high-speed projects such as TGV and ICE, and reflected influences from domestic programs including Shinkansen predecessors like the 0 Series Shinkansen and 300 Series Shinkansen.
Design and development
Development began amid strategic planning by West Japan Railway Company after privatization of Japanese National Railways and in coordination with national research institutes and manufacturers such as Central Japan Railway Company suppliers. The lead design emphasized reduced aerodynamic drag inspired by research from National Railway Laboratory of Japan and wind-tunnel testing by Kawasaki Heavy Industries with collaborations from Hitachi and Kinki Sharyo. Styling cues referenced long-nose proposals seen in conceptual work influenced by international projects like the Shinkansen 500 Concept and aesthetic considerations from design houses engaged with JR Tokai and regional governments including Osaka Prefecture and Hiroshima Prefecture. The trainset integrated advanced active suspension research conducted alongside universities such as University of Tokyo and Kyoto University.
Technical specifications
The 16-car original sets used distributed traction with lightweight aluminium alloy car bodies produced by Hitachi, Kawasaki Heavy Industries, and Kinki Sharyo. Traction systems were supplied by Toshiba and Mitsubishi Electric components following standards akin to earlier units built for Tokaido Shinkansen operations. Performance figures included a test speed of 320 km/h and a regular service cap at 300 km/h, influenced by regulatory limits involving Ministry of Land, Infrastructure, Transport and Tourism and track constraints on the Sanyo Shinkansen. Bogies and motors incorporated technology similar to developments on 300 Series Shinkansen and 700 Series Shinkansen, while braking systems combined regenerative braking and electronically controlled pneumatic brakes comparable to those used by East Japan Railway Company on other lines. The nose, approximately 15 meters long, reduced micro-pressure waves at tunnels, addressing issues studied after deployments on routes serving Shin-Osaka Station, Okayama Station, and Hakata Station.
Service history
When introduced, the 500 Series operated premier services branded by West Japan Railway Company and competed for passenger appeal against services by Central Japan Railway Company and international carriers observing Japanese high-speed practice like SNCF delegations. Initial deployment on Nozomi services marked a shift in express offerings on the Tokaido Shinkansen and later on the Sanyo Shinkansen connecting Tokyo-originated flows via Shin-Osaka. Operational experience prompted timetable revisions involving coordination with JR Central and infrastructure modifications at stations including Shin-Kobe Station and Shin-Yamaguchi Station. Over time, fleet reductions and reformation paralleled JR-West strategic realignment similar to fleet changes seen with the 700 Series Shinkansen.
Variants and formations
Original 16-car formations featured premium seating classes and observation cars akin to designs used by JR East and JR Kyushu in other expresses. Subsequent rebuilds created 8-car sets optimized for regional operation on secondary high-speed services, mirroring conversion practices previously undertaken for rolling stock such as E4 Series Shinkansen reductions elsewhere. Formations varied in pantograph placement, motor car distribution, and interior layouts referencing seating concepts from operators including JR Central and accessibility standards promoted by Ministry of Land, Infrastructure, Transport and Tourism guidelines. Manufacturer-specific equipment differences reflected contributions from Toshiba, Mitsubishi Electric, and Kawasaki Heavy Industries.
Operations and routes
The type primarily served the Sanyo Shinkansen corridor connecting Shin-Osaka Station with Hakata Station, and was initially scheduled on high-frequency Nozomi services on the Tokaido Shinkansen between Tokyo and Shin-Osaka. Operations required interoperability with signaling systems and track standards shared with Central Japan Railway Company and coordination at major nodes like Shin-Kobe Station, Okayama Station, and Himeji Station. Timetables and service patterns evolved alongside newer models such as the N700 Series Shinkansen and business strategies by West Japan Railway Company targeting regional connectivity and tourism markets promoted by prefectural governments including Hyogo Prefecture.
Preservation and legacy
After withdrawal from top-tier services, several sets were shortened and redeployed; others became candidates for preservation. Heritage interests from municipal museums and rail preservation groups, including organizations in Osaka and Hiroshima, have campaigned to secure examples for static display alongside preserved rolling stock like 0 Series Shinkansen exhibits. The 500 Series influenced later high-speed designs globally and informed aerodynamic and noise mitigation standards referenced by institutions such as Ministry of Land, Infrastructure, Transport and Tourism and research centers at University of Tokyo and Kyoto University, leaving a legacy comparable to milestones represented by the TGV and ICE programs.
