cesium standard

cesium standard

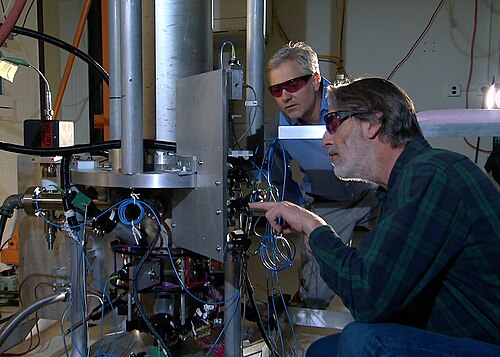

National Institute of Standards and Technology - Physics Laboratory: Time and Fr · Public domain · source
Name	Cesium standard
Inventor	Louis Essen, John V. L. Parry
Institution	National Physical Laboratory (United Kingdom)
Year	1955
Based on	Hyperfine transition of caesium-133
Accuracy	~1 part in 1015

cesium standard. A cesium standard is a primary frequency standard in which the unit of time, the second, is defined by the electromagnetic radiation emitted during a specific hyperfine transition of the cesium-133 atom. This device serves as the practical realization of the International System of Units (SI) second, providing an exceptionally stable and accurate reference for timekeeping and frequency measurement. Its development revolutionized metrology and underpins critical global technologies, from Global Positioning System navigation to the synchronization of telecommunications networks.

Definition and principle

The operational principle relies on the invariant properties of the caesium-133 isotope. Specifically, it exploits the transition between two hyperfine energy levels of the atom's ground state, which occurs when exposed to microwave radiation at precisely 9,192,631,770 hertz. This frequency was adopted as the definition of the second by the General Conference on Weights and Measures in 1967. The core apparatus, often a caesium beam tube, uses a magnetic state selector to prepare atoms, a microwave cavity to induce the transition, and a detector to measure the population change. Critical supporting technologies include atomic clock design, quartz oscillator discipline, and sophisticated feedback loop electronics to lock an oscillator to the atomic resonance.

Historical development

The quest for a more stable timebase than Earth's rotation or quartz crystal oscillators drove early atomic clock research. Pioneering work on ammonia masers by Harold Lyons at the National Bureau of Standards explored using molecular vibrations. The breakthrough came in 1955 at the National Physical Laboratory (United Kingdom) under Louis Essen and John V. L. Parry, who built the first practical cesium beam frequency standard. This instrument demonstrated far superior long-term stability. Its accuracy led to the redefinition of the second based on the cesium atom in 1967, a decision ratified by the International Astronomical Union and the General Conference on Weights and Measures. Subsequent refinements were made at institutions like the National Institute of Standards and Technology and the United States Naval Observatory.

Technical specifications

Modern cesium standards, such as commercial caesium beam clocks, achieve a frequency accuracy on the order of a few parts in 10¹⁵. Key performance metrics include frequency stability, characterized by the Allan deviation, and low phase noise. The physical implementation involves a vacuum tube containing a cesium oven, deflection magnets, a resonant cavity, and an ionizer detector. Environmental factors like magnetic field variations, temperature fluctuations, and microwave power shifts are meticulously controlled. These devices are calibrated against primary standards maintained by national metrology institutes like the Physikalisch-Technische Bundesanstalt or the National Research Council Canada.

Applications

The unparalleled accuracy of the cesium standard is foundational to modern infrastructure. It is the primary source for Coordinated Universal Time (UTC), disseminated globally by institutions like the Bureau International des Poids et Mesures. The Global Positioning System constellation relies on onboard cesium and rubidium atomic clocks for precise triangulation. In telecommunications, it enables the synchronization of code-division multiple access networks and fiber-optic communication systems. Scientific applications include tests of general relativity with Deep Space Network tracking, very-long-baseline interferometry in radio astronomy, and frequency metrology at laboratories like the Joint Institute for Laboratory Astrophysics.

Comparison with other standards

While the cesium standard defines the SI second, other atomic standards offer different trade-offs. Rubidium atomic clocks are more compact and lower-cost but less accurate, often disciplined by a cesium reference. Hydrogen masers provide exceptional short-term stability for applications like radio telescope arrays but exhibit long-term drift. Emerging optical lattice clocks, using atoms like strontium or ytterbium and probed with lasers, have surpassed cesium in accuracy and stability in laboratory settings. These are researched at institutions like the University of Colorado Boulder and RIKEN. Traditional timekeeping methods, such as those based on Earth's rotation monitored by the International Earth Rotation and Reference Systems Service, are far less precise.

Limitations and future developments

Fundamental limitations include the Dick effect from local oscillator noise, collisional shifts in beam designs, and the finite interaction time of atoms with microwaves, which limits the Q factor. The quest for greater accuracy is driving the development of optical clocks, which operate at frequencies nearly 100,000 times higher than microwave standards. Research at National Institute of Standards and Technology and the Paris Observatory aims to redefine the second based on an optical transition. Future timekeeping may rely on global networks of optical clocks linked by optical fiber or satellite links, potentially improving the stability of International Atomic Time and enabling new tests of fundamental physics, such as variations in the fine-structure constant.
