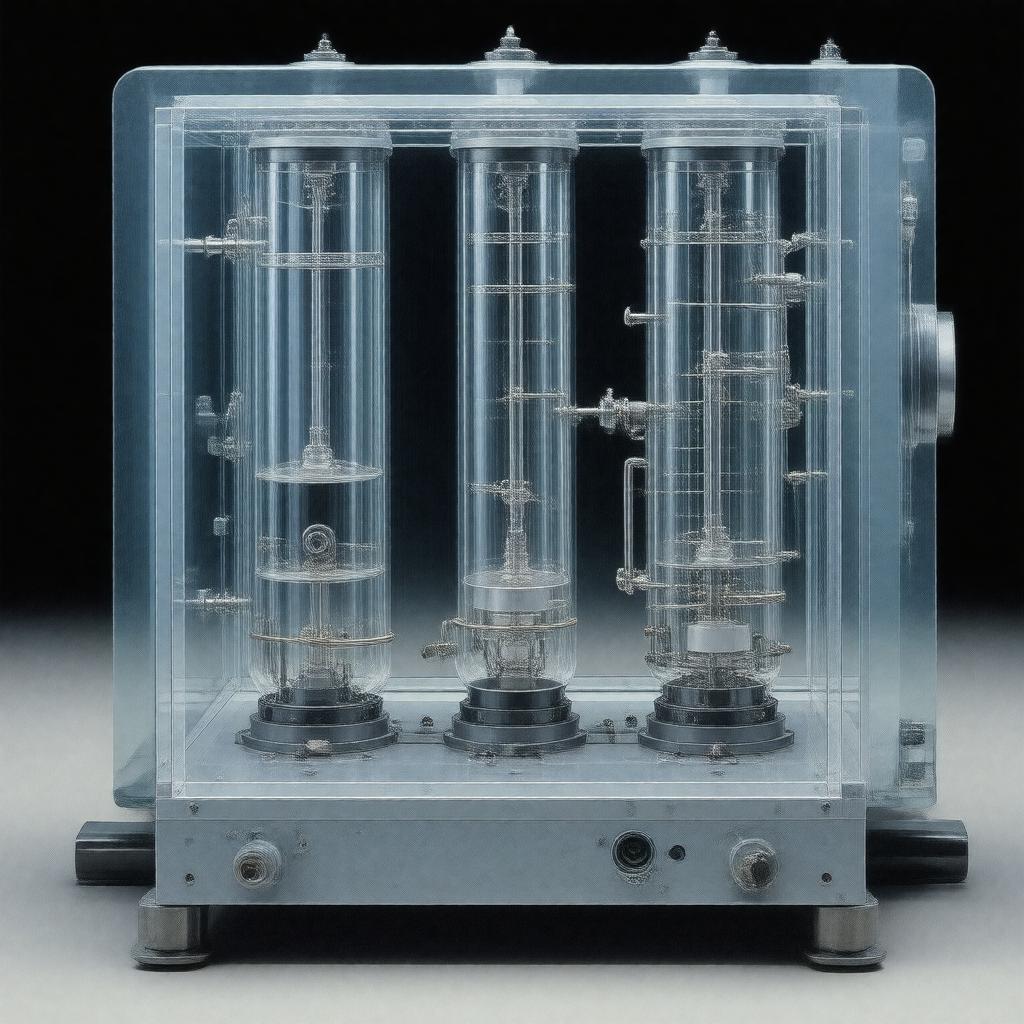

Hydrogen maser

Hydrogen maser. An atomic clock of exceptional stability, it operates on the hyperfine transition of neutral hydrogen atoms. Serving as a primary frequency standard, it is fundamental to deep space network navigation, very-long-baseline interferometry, and tests of fundamental physics. Its development was pioneered by researchers including Norman Ramsey and Daniel Kleppner at Harvard University.

Principle of operation

The device exploits the 1,420,405,751.7667 Hz hyperfine transition between the two ground states of the hydrogen atom. A beam of atomic hydrogen is produced by dissociating hydrogen gas in an RF discharge. These atoms, in the upper energy state, are focused into a storage bulb coated with Teflon to minimize wall collisions and preserve their quantum state. Within a high-Q factor microwave cavity tuned to the transition frequency, stimulated emission occurs, generating a coherent microwave signal. This process is a continuous-wave maser action, distinct from the pulsed methods used in ammonia maser designs. The stability is derived from the long interaction time of atoms with the radiation field, a principle central to Ramsey interferometry.

Design and construction

A typical unit consists of a source chamber, a state selector, a storage bulb, and a resonant cavity. The source uses an electrical discharge to create atomic hydrogen from molecular hydrogen gas. A hexapole or multipole magnet state selector focuses atoms in the desired F=1, mF=0 state into a quartz or Teflon-coated storage bulb. This bulb is housed inside a cylindrical microwave cavity, often made of copper or silver-plated material, critically tuned to support the TE011 mode. The entire assembly is placed within multiple layers of magnetic shielding using mu-metal to protect against external Earth's magnetic field fluctuations. A servo system locks a quartz crystal oscillator to the maser's output frequency. More advanced Active Hydrogen Maser designs incorporate an automatic cavity tuning system to compensate for thermal drift.

Applications

Its primary use is as an ultra-stable frequency reference in ground stations of the NASA Deep Space Network for spacecraft navigation and radio science. It is indispensable in very-long-baseline interferometry for astrometry and defining the International Celestial Reference Frame. Hydrogen masers provide the master oscillator for time scales like International Atomic Time at laboratories such as the United States Naval Observatory and the Paris Observatory. They are crucial for testing general relativity through experiments like Gravity Probe A and for searching for variations in fundamental constants. In radio astronomy, they serve as local oscillators for detecting spectral lines from objects like Messier 87.

Performance characteristics

The frequency stability of a hydrogen maser is exceptional, achieving a fractional frequency deviation, or Allan deviation, of better than 1×10⁻¹⁵ for averaging times between 1,000 and 10,000 seconds. Its frequency accuracy is limited by wall shift and cavity pulling effects to about 1×10⁻¹². The dominant long-term frequency drift is typically on the order of 1×10⁻¹⁶ per day, primarily due to changes in the Teflon coating of the storage bulb. Environmental sensitivities include temperature fluctuations, which affect cavity resonance, and magnetic field variations, mitigated by the mu-metal shields. Compared to a cesium fountain clock, it offers superior short-to-medium-term stability but is less accurate as an absolute standard.

Historical development

The theoretical foundation was laid with the discovery of the hydrogen line by Harold Ewen and Edward Purcell in 1951. The first operational atomic hydrogen maser was built by Daniel Kleppner, H. M. Goldenberg, and Norman Ramsey at Harvard University in 1960. This work directly applied the separated oscillatory fields method developed by Ramsey for which he later received the Nobel Prize in Physics. Significant refinements followed, including the development of the Active Hydrogen Maser at the Harvard-Smithsonian Center for Astrophysics and at the Observatoire de Paris. These instruments became the backbone of precision timekeeping for major projects like the Global Positioning System development and the Very Long Baseline Array.
