Z1 (computer)

Z1 (computer)
source
Name	Z1

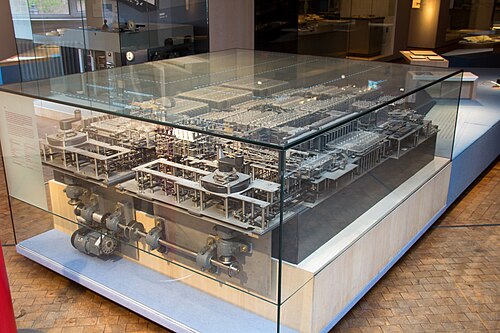

Caption	Replica of the Z1 at the Deutsches Museum in Berlin
Developer	Konrad Zuse
Manufacturer	Konrad Zuse
Type	Mechanical computer
Generation	First
Released	1938
Discontinued	1943
Power	Hand crank
Cpu	Mechanical arithmetic unit
Memory	64-word mechanical memory
Storage	Punched tape reader
Display	None
Input	Punched tape
Weight	~1000 kg
Predecessor	None
Successor	Z2 (computer)

Z1 (computer). The Z1 was a pioneering mechanical computer designed and built by the German engineer Konrad Zuse between 1936 and 1938. It is widely regarded as the first freely programmable, binary-based computing machine in the world, incorporating key architectural concepts that would define modern computers. Although it was unreliable in operation and destroyed during World War II, its innovative design laid the groundwork for Zuse's subsequent, more advanced machines.

History and development

The development of the Z1 began in 1936 in the living room of Konrad Zuse's parents' apartment in Berlin. Working largely in isolation from the international computing community, Zuse was motivated by a desire to automate tedious engineering calculations. He received modest financial support from friends and family, including his sister Lieselotte Zuse, and later a small grant from the German government. The machine was completed in 1938 and demonstrated to a small group of scientists and engineers. The original Z1 and its technical drawings were destroyed in 1943 during an Allied air raid on Berlin. Decades later, from 1986 to 1989, Zuse led a project to build a fully functional replica, which is now on permanent display at the Deutsches Museum in Munich.

Design and construction

The Z1 was an entirely mechanical design, constructed primarily from thin steel plates and pins that Zuse cut and assembled by hand. Its central innovation was the use of a binary numeral system for all calculations and data storage, a concept Zuse arrived at independently. The machine's logic was implemented using a sophisticated system of sliding metal plates and gates, creating a mechanical equivalent of Boolean algebra. The physical construction was extraordinarily complex, comprising over 20,000 individual parts, which led to frequent mechanical jams and failures. The entire apparatus was housed in a large metal frame and required manual operation via a hand crank to provide clock pulses.

Technical specifications

The Z1's architecture featured separate units for memory and control, a concept later formalized as the von Neumann architecture. Its mechanical memory could store 64 words of 22 bits each. The arithmetic unit performed floating-point addition, subtraction, multiplication, and division using binary logic. Input and output were handled via a punched tape reader, using discarded 35mm movie film. The machine's clock speed was determined by the operator turning the hand crank, typically yielding a cycle time of about one second. Despite its mechanical nature, the Z1's design conceptually included all major components of a modern central processing unit.

Operation and programming

Programming the Z1 was a complex, offline process. Instructions for a calculation were first punched by hand onto a strip of film, forming the program tape. This tape was then fed into the machine's reader. Each instruction specified an operation and the memory addresses for operands. The machine's operation was entirely controlled by this sequence of commands, making it program-controlled rather than fixed-purpose. To run a calculation, an operator would insert the tape and then turn the large hand crank to step the machine through its cycles. Results were output by the machine punching a new tape or, in some demonstrations, were read directly from the memory unit's mechanical display.

Legacy and significance

Although not practically useful, the Z1 holds immense historical significance as the first embodiment of key computing principles. It directly inspired Zuse's more reliable electromechanical successors, the Z2 (computer) and the seminal Z3 (computer). The Z1's binary system and separation of memory and processing influenced later computer designs in Germany and, after the war, internationally. Konrad Zuse's work, beginning with the Z1, established him as one of the founding fathers of computer science, alongside figures like Alan Turing and John von Neumann. The surviving replica serves as a powerful testament to the origins of programmable computation. Category:Mechanical computers Category:Early computers Category:History of computing hardware Category:1938 introductions
