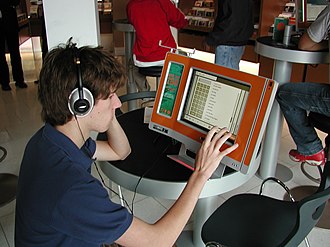

Touchscreen. A touchscreen is an electronic visual display that can detect the presence and location of a touch within the display area, enabling direct interaction without an intermediate device like a computer mouse or stylus. This input mechanism allows users to control information systems through simple or multi-touch gestures, fundamentally changing human-computer interaction. The technology is now ubiquitous, found in devices ranging from public information kiosks and point-of-sale systems to smartphones and tablet computers.

History

The concept of a touch-sensitive screen was first theorized and prototyped in the 1960s. In 1965, E.A. Johnson of the Royal Radar Establishment published work describing a capacitive touchscreen for air traffic control. The first true touchscreen was likely created in 1971 by Dr. Sam Hurst, founder of Elographics, while working at the University of Kentucky; this resistive touch panel, called the "Elograph," was patented in 1972. Significant development continued through the 1970s at institutions like CERN, where Bent Stumpe and Frank Beck developed a transparent capacitive screen. The first multi-touch screen was developed at the University of Toronto in 1982. Commercial adoption began with systems like the HP-150 personal computer in 1983 and expanded with public-facing terminals such as those used by the Nintendo Game & Watch series. The launch of devices like the Apple Newton in 1993 and, most pivotally, the iPhone in 2007, catalyzed the technology's dominance in consumer electronics.

Technologies

Several distinct sensing technologies enable touch detection, each with different operational principles and characteristics. Resistive touch technology, one of the most common and inexpensive, uses two flexible layers separated by a small gap; pressure from a touch creates contact, registering the location. Surface acoustic wave systems use ultrasonic waves passed over the screen, which are absorbed by a touch. Capacitive sensing, dominant in modern smartphones, relies on the electrical properties of the human body to distort an electrostatic field on the screen's surface. Other methods include infrared grids, where beams are interrupted by a touch, and optical imaging techniques that use image sensors to detect touch points. More advanced systems incorporate haptic technology to provide tactile feedback.

Construction

A basic touchscreen system integrates a touch sensor, a controller, and a software driver. The sensor, typically a clear panel with a touch-responsive surface, is placed over a display device such as an LCD or OLED panel. The controller, a small printed circuit board, connects the sensor to the device's central processing unit, translating raw touch data into coordinates. The software driver, often part of the operating system, facilitates communication between the controller and the application software, ensuring touches are interpreted as specific commands. For durability, the assembly is often laminated and protected by a hard coating like Gorilla Glass.

User interface

The design of user interfaces for touchscreens emphasizes direct manipulation, where gestures control on-screen objects. Fundamental gestures include tap (touch) for selection, drag and drop for moving items, and pinch gesture for zooming. More complex multi-touch gestures enable actions like rotation. Interface elements are designed for finger interaction, leading to larger graphical user interface widgets and the prevalence of virtual keyboards. Major operating systems like iOS, Android (operating system), and Windows have developed distinct design languages, such as Material Design and Human Interface Guidelines, to standardize touch interactions.

Applications

Touchscreens have revolutionized numerous industries and daily activities. In consumer electronics, they are the primary interface for devices from Samsung Galaxy phones to Apple Inc. iPads and Nintendo Switch consoles. In retail and hospitality, they are integral to point-of-sale systems, self-service kiosks, and interactive whiteboards in education. Industrial and medical applications include control systems for manufacturing equipment, patient monitoring devices, and digital signage. The automotive industry incorporates them into infotainment systems in cars from Tesla, Inc. and other manufacturers. Specialized uses also exist in fields like military aviation, with touch interfaces in cockpits like the F-35 Lightning II.

Comparison of touchscreen technologies

Each touch technology offers distinct advantages and trade-offs. Resistive touch screens are low-cost, can be activated with any object, and are resistant to surface contaminants, but they offer lower clarity and limited multi-touch capability. Capacitive sensing screens provide excellent clarity, support multi-touch, and are highly durable, but they only respond to conductive touches (like a finger) and are more expensive. Surface acoustic wave technology offers high clarity and excellent durability but can be disrupted by contaminants. Infrared touchscreens can be scaled to very large sizes, as seen in some smartboards, but may have lower resolution and can be prone to false triggers. The choice depends on factors including cost, environment, required durability, and desired user interaction.
