SVGA. Super Video Graphics Array is a broad term for a set of graphics display standards that extended the capabilities of the original IBM VGA hardware introduced with the IBM PS/2 line. It is not a single, rigid standard but rather a common denominator for resolutions beyond VGA's 640×480, most notably 800×600 pixels, with enhanced color depth. The term became widely adopted in the late 1980s and early 1990s, representing a significant leap in personal computer display quality that fueled advancements in graphical user interfaces, computer-aided design, and early multimedia applications.

Technical specifications

The core technical achievement of SVGA was its support for higher resolutions and greater color palettes than the preceding VGA standard. While the baseline specification is often considered 800×600 resolution, various implementations from different manufacturers supported modes like 1024×768, 1152×864, and 1280×1024. Color depth was also greatly expanded, moving from VGA's typical 4-bit or 8-bit palette to support for 15-bit (32,768 colors), 16-bit (65,536 colors), and eventually 24-bit true color (16.7 million colors) in later iterations. These improvements were made possible by increases in video memory (VRAM or DRAM), more powerful graphics processors, and higher bandwidth video bus interfaces. The proliferation of these capabilities was crucial for the adoption of operating systems like Microsoft Windows and OS/2, which relied on richer graphical environments.

History and development

The development of SVGA was driven by market competition following IBM's release of the proprietary 8514/A display adapter in 1987. Companies such as ATI Technologies, Tseng Labs, Paradise Systems, and Western Digital began producing "Super VGA" adapters that offered superior performance and resolution at lower cost. This period of fragmented innovation led to compatibility issues, as each vendor implemented its own video BIOS extensions and register-level programming interfaces. In response, a consortium of manufacturers formed the Video Electronics Standards Association (VESA) in 1989 to create unified standards. VESA's first major contribution was the VESA BIOS Extension (VBE), which provided a software interface for applications to reliably query and set high-resolution modes across different hardware, effectively standardizing the SVGA landscape and ensuring interoperability between products from Dell, Compaq, and other OEMs.

Compatibility and standards

Compatibility in the early SVGA market was a significant challenge, addressed primarily through the establishment of the VESA standards. The VESA BIOS Extension became the critical software layer that abstracted the hardware differences between vendors like Cirrus Logic, S3 Graphics, and Trident Microsystems. These standards defined not only programming interfaces but also timing details for monitor synchronization, ensuring that graphics cards could properly drive a wide range of multisync monitors from companies like NEC, ViewSonic, and Sony. Furthermore, the introduction of the VESA Feature Connector allowed for interoperability with video capture cards and other auxiliary video processing hardware. This ecosystem of standardized components was essential for the PC clone market's growth and was later built upon by successors like XGA and Super XGA.

Hardware implementations

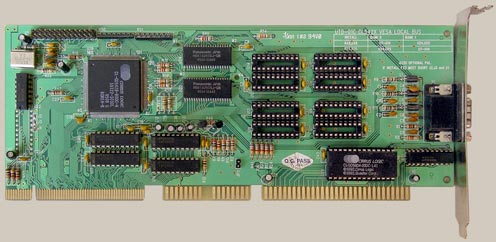

Early SVGA hardware implementations were typically discrete graphics cards installed in ISA or VL-Bus slots. Pioneering chipsets included the Tseng Labs ET4000, the ATI Mach series, and the S3 86C911 (marketed as the "911"). These chips managed increased video memory configurations, often 512 KB to 1 MB of VRAM, which was faster than conventional DRAM for display purposes. As performance demands grew, the PCI bus became the dominant interface, used by accelerators like the Diamond Viper and the Number Nine Imagine 128. These boards not only displayed higher resolutions but began offering rudimentary 2D acceleration for graphical user interface operations, offloading tasks from the main central processing unit and paving the way for the 3D graphics card revolution led by companies such as 3dfx Interactive and NVIDIA.

Software and driver support

Software support evolved from proprietary device drivers provided by each hardware manufacturer to more unified models facilitated by operating systems. In the MS-DOS era, applications like Lotus 1-2-3, AutoCAD, and early video games often included specific drivers for popular SVGA chipsets from Orchid Technology or Hercules Computer Technology. The rise of Microsoft Windows 3.x and especially Windows 95 introduced a more stable driver architecture, the Windows Display Driver Model, which reduced system instability. Graphics companies like Matrox and STB Systems invested heavily in developing robust driver suites. The transition to Windows NT and its unified Windows Driver Model further solidified software support, allowing the same SVGA hardware to run across business and consumer versions of the operating system, supporting everything from Microsoft Office to Adobe Photoshop.
