SU-76

SU-76
Public domain · source
Name	SU-76

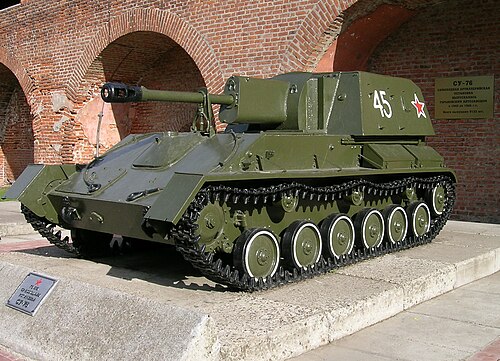

Caption	A preserved SU-76M in Poznań
Type	Self-propelled gun
Origin	Soviet Union
Service	1943–1953 (Soviet Union)
Used by	See #Operators
Wars	World War II, Korean War
Designer	S. G. Ginsburg
Design date	1942
Manufacturer	GAZ, Factory No. 38 (Kirov)
Production date	1942–1945
Number	~14,292
Weight	10.5 tonnes
Length	4.88 m
Width	2.73 m
Height	2.17 m
Armour	10–35 mm
Primary armament	1 × 76.2 mm ZiS-3Sh gun
Engine	2 × GAZ-202
Engine power	2 × 70 hp
Pw ratio	13.3 hp/tonne
Suspension	Torsion bar
Vehicle range	320 km
Speed	45 km/h (road)

SU-76. The SU-76 was a Soviet self-propelled gun developed and deployed extensively during World War II. Designed as a light, mobile artillery piece to support Soviet infantry and armor, it became the second most-produced Soviet armored fighting vehicle of the war after the T-34. Its simple construction and reliable ZiS-3 main gun made it a ubiquitous and versatile asset on the Eastern Front.

Development and design

The development of the SU-76 was initiated in 1942 under the direction of S. G. Ginsburg at Factory No. 38 (Kirov) in response to the urgent need for mobile anti-tank and infantry support weapons. The initial design, the SU-76 (SU-12), utilized a novel but problematic twin-engine arrangement from the T-70 light tank, which led to frequent transmission failures during combat trials near Leningrad. A major redesign by the team at the GAZ plant resulted in the definitive SU-76M model, which placed the two GAZ-202 gasoline engines in parallel, solving the reliability issues. The vehicle's open-top, lightly armored fighting compartment housed the powerful ZiS-3Sh gun, which was effective against early German tanks like the Panzer III and Panzer IV and excelled in the indirect fire role. Its simple construction, based on components from the T-70 and T-60 light tanks, allowed for mass production at facilities including GAZ and Factory No. 40 (Mytishchi).

Operational history

The SU-76M entered widespread service with the Red Army in early 1943, first seeing major action during the Battle of Kursk. It was primarily allocated to independent self-propelled artillery regiments and later to light artillery brigades, providing direct fire support for rifle divisions and acting as a mobile anti-tank reserve. The vehicle played a significant role in numerous pivotal offensives, including Operation Bagration, the Vistula–Oder Offensive, and the final Battle of Berlin. While vulnerable to heavier German armor like the Panther and Tiger I, its high-explosive shells were devastating against infantry and fortifications, earning it the soldier's nickname "Сука" ("Bitch") for its harsh combat conditions but also the respectful "Голозадая Фердинанда" ("Bare-assed Ferdinand") in comparison to the Elefant. Beyond the Eastern Front, it saw service in the Soviet–Japanese War in Manchuria and was later supplied to allied forces, seeing action in the Korean War with the Korean People's Army.

Variants

The primary variant was the SU-76M, the definitive production model with a rearranged engine compartment. The original, problematic SU-76 (SU-12) model was quickly phased out of production. Several experimental and field-modified versions existed, including the SU-76B, which featured an enclosed crew compartment, and the SU-76D, which mounted a different gun. The chassis was also used for specialized vehicles such as the ZSU-37 anti-aircraft gun and the SU-85B prototype. Post-war, some vehicles were converted into artillery tractors or command vehicles by various operators, including the Polish People's Army.

Operators

The primary operator was the Soviet Union, which fielded thousands throughout World War II. Post-war, it was widely exported to Soviet-aligned states and satellite countries. Significant numbers were used by the Polish People's Army, the Czechoslovak Army, the Bulgarian People's Army, and the Korean People's Army. It was also supplied to the People's Liberation Army and saw service with forces in Yugoslavia, Albania, and Romania. Captured examples were occasionally used by the Wehrmacht and the Finnish Army.

Surviving examples

Numerous SU-76Ms survive in museums and as memorials across Europe and Asia. Notable displays include vehicles at the Kubinka Tank Museum in Russia, the Polish Army Museum in Warsaw, and the Museum of the Great Patriotic War on Poklonnaya Hill. Examples are also preserved in Belarus at the Stalin Line complex, in Czechia at the Military Technical Museum Lešany, and in North Korea. Several remain on outdoor monuments in towns across Russia, Ukraine, and Poland that were liberated by Soviet forces.
