Luna 9

Luna 9
source
Name	Luna 9
Mission type	Lunar lander
Operator	Lavochkin
COSPAR ID	1966-006A
SATCAT	01954
Mission duration	6 days (operational)
Manufacturer	OKB-1
Launch mass	1580 kg
Landing mass	100 kg
Launch date	31 January 1966, 11:41:37 UTC
Launch rocket	Molniya-M 8K78M
Launch site	Baikonur Cosmodrome Site 31/6
Last contact	6 February 1966

Luna 9 was a pioneering Soviet space probe that achieved the first soft landing on the Moon and transmitted the first photographic images from the lunar surface. Launched as part of the Luna programme, it was a landmark success for the Soviet space program during the Space Race with the United States. The mission provided critical engineering data and the first direct evidence of the lunar surface's solid, load-bearing nature, dispelling fears of a deep regolith layer that could swallow a spacecraft.

Mission overview

The primary objective of the Luna 9 mission was to accomplish a survivable touchdown on the Moon and return scientific data, a goal that had eluded previous Soviet attempts like Luna 8. Managed by the design bureau Lavochkin under chief designer Georgy Babakin, the mission was a direct response to the competitive pressures of the Space Race following American missions such as Ranger. The launch occurred on 31 January 1966 from the Baikonur Cosmodrome using a Molniya-M rocket. After a mid-course correction, the spacecraft entered a direct trajectory to the Moon, culminating in a historic landing in the Oceanus Procellarum region on 3 February 1966.

Spacecraft design

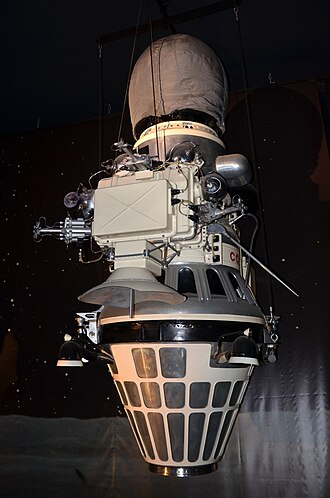

The Luna 9 spacecraft consisted of two main components: a landing apparatus and a propulsion module. The lander itself was a hermetically sealed, pressurized sphere with a mass of approximately 100 kg, designed to withstand the impact of landing. It was equipped with a radio altimeter, attitude control systems, and a solid-fuel retrorocket for final descent. Key instruments included a radiation detector, a odometer-like device, and a panoramic television camera system. The overall design, including the aerodynamic braking system, was a significant evolution from earlier Luna programme probes like Luna 4 and represented a major achievement for the OKB-1 and Lavochkin design teams.

Landing and operations

The landing sequence began with the jettisoning of the propulsion module. The lander, encased in airbags, fired its retrorocket at an altitude of about 75 km and free-fell to the surface, with the airbags cushioning the final impact. Upon coming to rest, the petals of the capsule opened to stabilize the craft and expose its instruments. The first signals were received by the Jodrell Bank Observatory in the United Kingdom, which independently confirmed the success. Over the next three days, the lander transmitted seven panoramic image sessions, providing the first close-up look at the lunar surface, before its batteries were depleted on 6 February 1966.

Scientific results

The panoramic images returned by Luna 9 were a scientific revelation, showing a landscape littered with rocks and small craters, with no evidence of a deep, loose dust layer. Measurements from the radiation detector confirmed the expected levels of cosmic radiation at the surface. The images and engineering data conclusively demonstrated that the Moon's surface was firm and capable of supporting the weight of a lander, a critical finding for planning future crewed missions like the American Apollo program. The success directly influenced the design of subsequent Soviet landers, including Luna 13.

Legacy

The success of Luna 9 was a monumental propaganda and technological victory for the Soviet Union, marking a world first in space exploration. It paved the way for more advanced robotic missions, such as the sample-return Luna 16 and the Lunokhod rovers. The mission's techniques for soft landing and surface imaging were foundational for all subsequent lunar and planetary landers, including those from NASA like the Surveyor probes. The data it provided were instrumental in de-risking the Apollo program's landing plans, cementing its place as a cornerstone achievement in the history of spaceflight.
