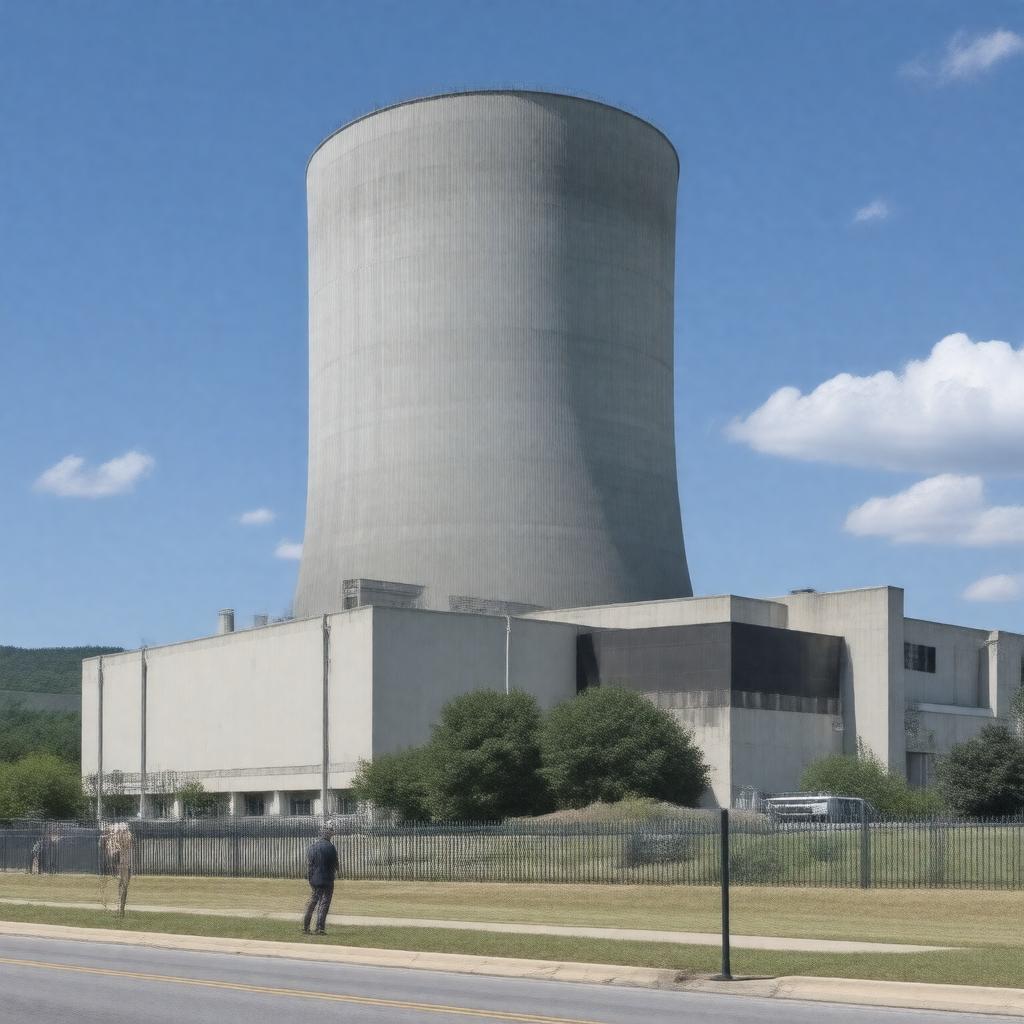

High Flux Reactor

High Flux Reactor. The High Flux Reactor is a major materials testing and isotope production facility located at the European Commission's Joint Research Centre site in Petten, Netherlands. Operated by the Nuclear Research and Consultancy Group, it is one of the most powerful research reactors in the world, providing intense neutron beams for a wide array of scientific and industrial applications. Since achieving first criticality in 1961, it has been a cornerstone for nuclear research in Europe, supporting programs in nuclear energy, materials science, and nuclear medicine.

Overview

The facility is a key asset for the European Union's strategic research infrastructure, managed under a partnership between the European Commission and the Dutch government. It serves as the primary production site for medical radioisotopes within the European Union, crucial for diagnostic imaging and cancer therapy procedures across the continent. The reactor's core is surrounded by numerous beamlines and irradiation facilities, enabling simultaneous experiments in solid-state physics, chemistry, and biology. Its operations are integral to the research programs of institutions like the Institut Laue–Langevin and the Paul Scherrer Institute.

Design and specifications

The reactor is a tank-in-pool design, with the core submerged in a large pool of light water that acts as both coolant and neutron moderator. The core uses highly enriched uranium fuel in the form of uranium silicide plates, arranged to create a compact zone of extremely high neutron flux. It operates at a steady-state thermal power of 45 megawatts, generating a maximum undisturbed thermal neutron flux of approximately 4.5 x 10¹⁴ neutrons per cm² per second. Key design features include a beryllium reflector to enhance neutron economy and multiple horizontal and vertical channels for inserting experiments and targets directly into the high-flux region.

Operational history

Construction began in 1957 under the auspices of the European Atomic Energy Community, with first criticality achieved in 1961. Major upgrades were undertaken in the 1980s, including a core conversion project to switch from highly enriched uranium to lower-enriched fuel, supported by the United States Department of Energy's Reduced Enrichment for Research and Test Reactors program. The reactor has experienced several planned outages for maintenance and safety improvements, but no major accidents have been recorded. Its long-term operation has been secured through periodic renewals of its operating license by the Dutch nuclear regulator, the Authority for Nuclear Safety and Radiation Protection.

Scientific applications

The primary application is the large-scale production of radioisotopes, such as molybdenum-99 for technetium-99m generators, vital for hospitals worldwide. Its neutron beams are used for neutron scattering experiments to study the structure and dynamics of condensed matter, supporting research at facilities like the Spallation Neutron Source and the European Spallation Source. The reactor also performs vital materials testing for next-generation nuclear reactor designs, including those for the ITER fusion reactor project and Generation IV reactor concepts. Furthermore, it supports neutron transmutation doping of silicon for the semiconductor industry and neutron activation analysis for archaeology and environmental science.

Safety and regulation

Safety is governed by a robust defence in depth philosophy, incorporating multiple physical barriers like the fuel cladding, the reactor vessel, and the containment building. The reactor's design includes redundant safety systems for shutdown, cooling, and containment, which are regularly tested. Regulatory oversight is the responsibility of the Authority for Nuclear Safety and Radiation Protection in the Netherlands, which conducts inspections in line with standards set by the International Atomic Energy Agency. The facility maintains an extensive emergency preparedness plan coordinated with local authorities and participates in international peer reviews, such as those conducted by the World Association of Nuclear Operators.
