F-8 Crusader

F-8 Crusader
Jimmy Labianco · Public domain · source
Name	F-8 Crusader

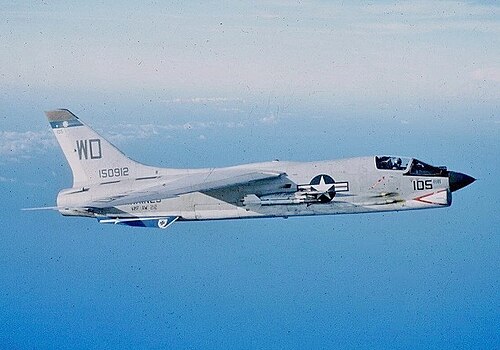

Caption	A United States Navy F-8E from VF-162 in flight.
Type	Carrier-based fighter aircraft
National origin	United States
Manufacturer	Chance Vought
First flight	25 March 1955
Introduction	March 1957
Retired	1999 (French Navy)
Primary users	United States Navy * United States Marine Corps * French Navy * Philippine Air Force
Number built	1,219
Developed into	LTV A-7 Corsair II

F-8 Crusader. The Vought F-8 Crusader was a single-engine, supersonic, carrier-based fighter aircraft designed and produced by Chance Vought for the United States Navy and the United States Marine Corps. Renowned as the "Last of the Gunfighters" for its primary armament of four 20 mm M39 cannon, it was the first operational carrier fighter capable of sustained speeds exceeding Mach 1.0. The innovative variable-incidence wing, which pivoted upward for improved low-speed handling during aircraft carrier landings, became a defining feature of its design.

Development and design

The Crusader originated from the United States Navy's 1952 requirement for a new carrier-based fighter to succeed the McDonnell F3H Demon. The Chance Vought design team, led by John Russell Clark, proposed the V-383, which triumphed over entries from Grumman and McDonnell Douglas. A key innovation was the variable-incidence wing, which rotated 7 degrees upward, allowing the fuselage to remain level for better pilot visibility during the critical landing phase on carriers like the USS Forrestal. Power was provided by a single Pratt & Whitney J57 afterburning turbojet engine. The aircraft's armament centered on the four 20mm cannon, supplemented by early AIM-9 Sidewinder missiles and unguided rockets, cementing its "gunfighter" reputation in the missile age.

Operational history

The F-8 entered service with VF-32 in March 1957 aboard the USS Saratoga (CV-60). It soon became a frontline fighter for the United States Navy and saw extensive combat during the Vietnam War, where it achieved a favorable kill ratio against North Vietnamese Air Force MiG-17 and MiG-21 aircraft. United States Marine Corps squadrons, such as VMF(AW)-235, also flew the Crusader from land bases like Da Nang Air Base. The French Navy operated the type from the carriers FS Clemenceau (R98) and FS Foch (R99), using it in reconnaissance and strike roles. The final combat use was by the Philippine Air Force against rebel forces in the 1990s, with the last military retirement occurring in the French Navy in 1999.

Variants

The initial production model was the F-8A, followed by the improved F-8C and F-8D. The definitive fighter variant was the F-8E, which featured enhanced radar, two additional hardpoints for AGM-12 Bullpup missiles, and improved avionics. The RF-8A and RF-8G were unarmed photographic reconnaissance versions used heavily by the United States Navy and flown by United States Naval Reserve units like VFP-206. Other models included the F-8H through F-8N, which were upgraded airframes with strengthened wings and updated systems. The Crusader also served as a development aircraft for the LTV A-7 Corsair II.

Operators

The primary operator was the United States Navy, which equipped numerous fleet squadrons and reserve units. The United States Marine Corps flew several fighter and reconnaissance squadrons. Internationally, the French Navy's Aéronavale was a major user, operating the type from its carriers. The Philippine Air Force was the final combat operator, receiving ex-U.S. Navy aircraft. A small number were also used by NASA and by various civilian contractors for test and chase pilot duties.

Specifications (F-8E)

* **Crew:** 1 * **Length:** 54 ft 3 in (16.53 m) * **Wingspan:** 35 ft 2 in (10.72 m) * **Height:** 15 ft 9 in (4.80 m) * **Empty weight:** 17,541 lb (7,956 kg) * **Max takeoff weight:** 34,000 lb (15,422 kg) * **Powerplant:** 1 × Pratt & Whitney J57-P-20A afterburning turbojet * **Maximum speed:** Mach 1.86 (1,225 mph, 1,975 km/h) * **Range:** 1,735 mi (2,795 km) * **Service ceiling:** 58,000 ft (17,700 m) * **Armament:** 4 × 20 mm (0.787 in) M39 cannon; 4 × AIM-9 Sidewinder missiles; up to 5,000 lb (2,270 kg) of ordnance on underlying pylons

In popular culture

The F-8 Crusader has appeared in several films depicting naval aviation and the Vietnam War. It is featured in the 1991 film *Flight of the Intruder*, based on the novel by Stephen Coonts. The aircraft also appears in documentaries about Top Gun and the history of United States Navy fighter squadrons. Its distinctive profile and "Last of the Gunfighters" nickname have secured it a prominent place in aviation literature and at airshows, such as those at the National Naval Aviation Museum in Pensacola, Florida.
