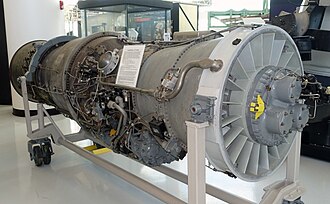

Pratt & Whitney J57

Pratt & Whitney J57
source
Name	Pratt & Whitney J57
Type	Turbojet
National origin	United States
Manufacturer	Pratt & Whitney
First run	January 1950
Major applications	Boeing B-52 Stratofortress, Boeing 707, McDonnell F-101 Voodoo, North American F-100 Super Sabre
Number built	21,170 built
Developed into	Pratt & Whitney JT3C, Pratt & Whitney J75

Pratt & Whitney J57 was a groundbreaking axial-flow turbojet engine that became a cornerstone of American military and commercial aviation during the Cold War. Developed by Pratt & Whitney, it was the first production jet engine in the world to achieve 10,000 lbf of thrust, setting new standards for power and reliability. Its innovative dual-spool design significantly improved efficiency and throttle response, powering a legendary fleet of United States Air Force bombers, fighters, and early jetliners like the Boeing 707.

Development and Design

The J57's origins lie in a late-1940s United States Navy requirement for a powerful engine to propel new carrier-based fighters and attack aircraft. Pratt & Whitney's design team, led by engineers like Arthur E. Smith, pioneered the dual-spool (or twin-spool) configuration, featuring separate low-pressure and high-pressure compressors on concentric shafts. This revolutionary architecture, developed under project designations like Pratt & Whitney XT45, allowed for higher overall pressure ratios without compromising compressor stall margins, enabling stable operation across a wide flight envelope. The engine's first run in January 1950 at the company's facility in East Hartford, Connecticut, marked a major leap in propulsion technology, with its success directly influencing the design of the larger Pratt & Whitney J75 and the commercial Pratt & Whitney JT3C.

Operational History

Entering service with the United States Air Force in 1953, the J57 quickly proved its mettle in demanding roles. It was the definitive powerplant for the Boeing B-52 Stratofortress, providing the intercontinental range and payload capability that made it the backbone of Strategic Air Command's nuclear deterrent throughout the Cold War. In fighter aviation, engines like the Pratt & Whitney J57-P-21 propelled the North American F-100 Super Sabre, America's first operational supersonic fighter, to fame over Vietnam. The engine also powered record-setting aircraft, including the F-100 that set the first supersonic speed record in level flight and the Lockheed U-2 high-altitude reconnaissance plane. Its reliability in extreme conditions was further demonstrated aboard naval aircraft like the Vought F8U Crusader and the Douglas A-4 Skyhawk.

Variants

The J57 was produced in numerous models tailored for specific airframes and missions. Key military variants included the Pratt & Whitney J57-P-1 for early B-52 models and the Pratt & Whitney J57-P-21 for the F-100D. The Pratt & Whitney J57-P-55 featured water injection for increased thrust on the McDonnell F-101 Voodoo. For the Boeing 707 and Douglas DC-8, the commercial derivative was designated the Pratt & Whitney JT3C, which was essentially a de-militarized J57. A notable afterburning version, the Pratt & Whitney J57-P-43W, equipped the Convair F-102 Delta Dagger and Convair F-106 Delta Dart interceptors. The engine was also built under license by Fiat Aviazione in Italy.

Specifications (J57-P-43W)

* **Type:** Afterburning turbojet * **Length:** 237.5 in (6.03 m) * **Diameter:** 39 in (0.99 m) * **Dry weight:** 5,175 lb (2,347 kg) * **Compressor:** Axial-flow, 16-stage (9 low-pressure, 7 high-pressure) * **Combustors:** 8 can-annular combustors * **Turbine:** 3-stage (1 high-pressure, 2 low-pressure) * **Maximum thrust:** * 11,200 lbf (49.8 kN) military thrust * 17,200 lbf (76.5 kN) with afterburner * **Overall pressure ratio:** 12:1 * **Specific fuel consumption:** * 0.84 lb/(lbf·h) (85.6 kg/(kN·h)) at military thrust * 2.0 lb/(lbf·h) (204 kg/(kN·h)) with afterburner * **Thrust-to-weight ratio:** 3.32:1 (with afterburner)

Applications

The J57 powered an iconic array of American aircraft. Its primary military applications included the Boeing B-52 Stratofortress, North American F-100 Super Sabre, McDonnell F-101 Voodoo, Convair F-102 Delta Dagger, Convair F-106 Delta Dart, Lockheed U-2, and Vought F8U Crusader. It also saw use on the Boeing KC-135 Stratotanker, Douglas A-4 Skyhawk, and Boeing C-135 Stratolifter. Commercially, its derivative, the Pratt & Whitney JT3C, was the original engine for the Boeing 707 and Douglas DC-8 jetliners, ushering in the era of mass passenger jet travel. The engine's versatility and power made it one of the most successful early jet engines in history.
