Alternating Gradient Synchrotron

Alternating Gradient Synchrotron
Brookhaven National Laboratory · Public domain · source
Name	Alternating Gradient Synchrotron

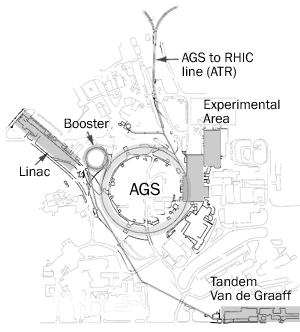

Caption	Aerial view of the Alternating Gradient Synchrotron complex at Brookhaven National Laboratory.
Institution	Brookhaven National Laboratory
Location	Upton, New York
Type	Synchrotron
Beam type	Proton
Target	Fixed target
Energy	33 GeV
Circumference	807.1 m
Constructed	1960
Operated	1960–present
Status	Operational
Predecessor	Cosmotron
Successor	Relativistic Heavy Ion Collider

Alternating Gradient Synchrotron. The Alternating Gradient Synchrotron is a major particle accelerator located at Brookhaven National Laboratory on Long Island. As the first accelerator to utilize the strong-focusing or alternating-gradient principle, it achieved record-breaking energies upon its completion and became a cornerstone of high-energy physics research in the latter half of the 20th century. For decades, it served as the primary proton synchrotron at the laboratory, enabling groundbreaking discoveries in nuclear and particle physics, including the Nobel Prize-winning discovery of the J/ψ meson.

History and development

The concept of alternating gradient strong focusing was independently conceived in 1952 by Ernest Courant, M. Stanley Livingston, and Hartland Snyder at Brookhaven, and by Nicholas Christofilos in Greece. This revolutionary design promised to overcome the limitations of weak-focusing synchrotrons like Brookhaven's own Cosmotron, allowing for much higher energies within a physically smaller and more economical ring. Construction of the AGS was approved by the United States Atomic Energy Commission and began in the late 1950s. Under the direction of scientists like John P. Blewett, the machine was completed in 1960, achieving its design energy of 33 billion electron volts (GeV) and briefly holding the world record for proton energy, surpassing the Proton Synchrotron at CERN.

Design and operation

The AGS is a circular synchrotron with a circumference of 807.1 meters. Its defining innovation is the use of alternating-gradient focusing, where successive quadrupole magnets are arranged with alternating polarities to provide strong horizontal and vertical focusing simultaneously. This confines the proton beam to a very narrow path, allowing it to be accelerated to high energies in a vacuum pipe of small aperture. Protons are first accelerated to 200 MeV by a linear accelerator, the LINAC, before being injected into the AGS ring. Here, they are guided by 240 main bending dipole magnets and focused by 240 quadrupole magnets, while radio frequency cavities increase their energy over approximately one second before extraction for experiments.

Scientific contributions

The AGS has been the site of numerous pivotal discoveries in subatomic physics. In 1974, a team led by Samuel Ting conducting experiment E-598 at the AGS discovered the J/ψ meson, a particle whose existence provided the first direct evidence for the charm quark; this discovery was shared with a team at the Stanford Linear Accelerator Center and earned Ting the Nobel Prize in Physics in 1976. The accelerator also produced the first observed neutrino interactions in a hydrogen bubble chamber, confirmed CP violation in the decay of neutral kaons, and discovered the muon neutrino. In the 1980s, its mission expanded to include accelerating heavy ions like gold, leading to the early study of quark–gluon plasma conditions.

Technical specifications

The original design energy for protons was 33 GeV. Through upgrades, its capability was extended, ultimately reaching a maximum proton energy of approximately 29 GeV for fixed-target operations due to optimized magnetic field strengths. The magnetic field at peak energy is 13.4 kG (1.34 T). The ring's radius is 128.4 meters. It can produce intense beams, with over 6×10¹³ protons per pulse. For heavy ion operation, it has accelerated fully stripped gold nuclei to energies of 11 GeV per nucleon. The AGS complex also includes the AGS Booster, a smaller synchrotron constructed in the 1990s to increase the intensity of beams for the Relativistic Heavy Ion Collider.

Legacy and impact

The successful operation of the AGS validated the alternating-gradient principle, which became the standard design for all subsequent major synchrotrons worldwide, including the Tevatron at Fermilab and the Large Hadron Collider at CERN. It served as the primary injector for the Relativistic Heavy Ion Collider, the first collider dedicated to heavy-ion physics, ensuring its continued utility into the 21st century. The AGS trained generations of physicists and engineers, and its experimental program yielded fundamental advances in the understanding of the Standard Model and quantum chromodynamics. Its longevity and adaptability have made it one of the most historically significant and productive accelerators in the history of nuclear physics.
