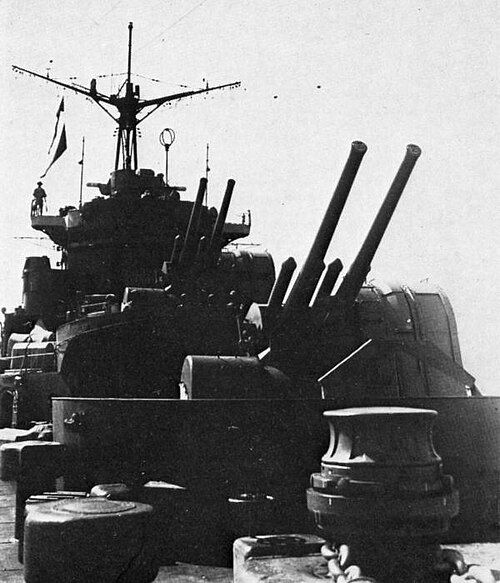

12.7 cm/40 Type 89 naval gun

12.7 cm/40 Type 89 naval gun
Furukawa Akira. · Public domain · source
Name	12.7 cm/40 Type 89 naval gun
Origin	Empire of Japan
Type	Naval gun / Dual-purpose gun
Service	1932–1945
Used by	Imperial Japanese Navy
Wars	Second Sino-Japanese War, World War II
Designer	Kure Naval Arsenal
Design date	1928–1932
Manufacturer	Kure Naval Arsenal
Production date	1932–1945
Weight	3,100 kilograms (6,834 lb)
Length	5.6 meters (18 ft 4 in)
Part length	40 caliber
Cartridge	127 x 580mm R
Cartridge weight	23 kilograms (51 lb)
Caliber	127 millimeters (5.0 in)
Rate	8–14 rounds per minute
Velocity	720–725 meters per second (2,360–2,380 ft/s)
Range	14,800 meters (16,200 yd) at 45°
Max range	9,440 meters (31,000 ft) AA ceiling
Breech	Welin breech block
Carriage	Various mounts
Elevation	-7° to +90°
Traverse	360°

12.7 cm/40 Type 89 naval gun was a dual-purpose naval artillery piece used by the Imperial Japanese Navy from the early 1930s through the end of World War II. Designed primarily for anti-aircraft defense but also effective against surface targets, it became the standard heavy anti-aircraft gun on most Japanese warships of the period. Its deployment was widespread, seeing action in numerous engagements across the Pacific War.

Design and development

The development of the 12.7 cm/40 Type 89 was initiated in the late 1920s to address the Imperial Japanese Navy's growing need for a modern, high-angle anti-aircraft weapon capable of engaging the new generation of faster military aircraft. The design work was led by engineers at the Kure Naval Arsenal, building upon lessons from earlier guns like the 12 cm/45 10th Year Type naval gun. The project was formally adopted in 1932, corresponding to the year 2589 in the Japanese imperial year system, hence the "Type 89" designation. Its development paralleled similar international efforts, such as the QF 4.5-inch Mk I – V naval gun used by the Royal Navy.

Description

The Type 89 was a 40-caliber gun with a bore of 127 millimeters. It used a Welin breech block mechanism and fired a separate-loading QF round, consisting of a 23-kilogram projectile and a brass cartridge case. The gun could achieve a maximum elevation of +90 degrees for anti-aircraft fire and depress to -7 degrees for surface targets. Its muzzle velocity was approximately 720 meters per second. The gun was typically mounted in twin-gun mounts, such as the A1 Mod 1 and later models, which were powered for rapid training and elevation. Fire control was provided by systems like the Type 94 director and Type 92 fire control computer.

Service history

The Type 89 entered service in 1932 and first saw combat during the Second Sino-Japanese War. It formed the primary heavy anti-aircraft battery on nearly all major Japanese warships built from the mid-1930s onward, including battleships like the ''Yamato'', aircraft carriers like the ''Shōkaku'', and heavy cruisers of the ''Mogami'' class. Throughout the Pacific War, it was engaged in every major naval battle, from the Attack on Pearl Harbor to the Battle of Leyte Gulf. While a reliable weapon, its effectiveness was sometimes hampered by the quality of its fuzes and the increasing speed of Allied aircraft like the F6F Hellcat and SB2C Helldiver.

Variants

The primary variants of the weapon were distinguished by their mounting systems. The initial production model was the **Type 89 A1**, fitted in the twin **A1 Mod 1** mount. An improved version, the **A1 Mod 2**, introduced a larger gun shield. The most common variant was the **A1 Mod 3**, which featured a redesigned mount with improved weather protection and was widely installed on vessels such as the Yamato-class battleship and Taiyō-class escort carrier. Some late-war installations on auxiliary vessels used simpler, open single mounts. The gun itself remained largely unchanged, with modifications focused on the mount's mechanical drives and protective features.

Operators

The sole operator of the 12.7 cm/40 Type 89 was the Empire of Japan's Imperial Japanese Navy. It was not exported or transferred to allied nations such as the Kingdom of Thailand or the Reorganized National Government of China. Following Japan's surrender in 1945, many guns were scrapped, though some were likely studied by technical teams from the United States Navy and the Soviet Navy. A small number of mounts survive as museum exhibits or war memorials in locations like Kure, Hiroshima.
