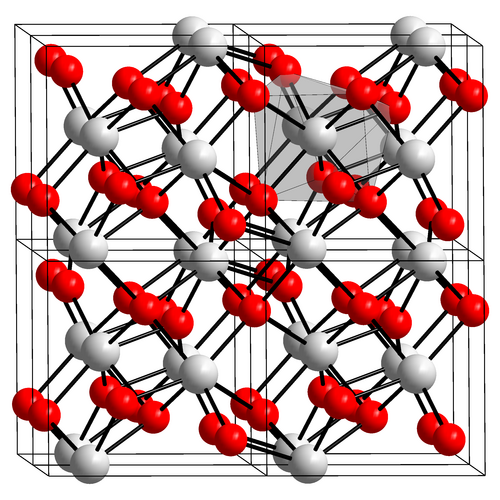

hafnium dioxide

hafnium dioxide
Orci · CC BY-SA 3.0 · source
Name	Hafnium dioxide
Othernames	Hafnia, hafnium(IV) oxide
Formula	HfO2
Molar mass	210.49 g·mol−1
Appearance	White crystalline powder
Density	9.68 g·cm−3 (monoclinic)
Melting point	2758 °C
Solubility	Insoluble in water
Crystal structure	Monoclinic, tetragonal, cubic polymorphs

hafnium dioxide is an inorganic compound composed of hafnium and oxygen with the empirical formula HfO2. It is a high-refractive-index, high-dielectric-constant oxide that occurs in nature as the mineral hafnon and is produced industrially for a variety of advanced technologies. The material is notable for its thermal stability, chemical inertness, and polymorphism, which underpin uses in microelectronics, optics, nuclear reactors, and corrosion-resistant coatings.

Introduction

Hafnium dioxide is related chemically and structurally to zirconia and sits adjacent to zirconium in the periodic table near hafnium and zirconium. Discovered and characterized through the development of early twentieth‑century inorganic chemistry, its refinement paralleled work at institutions such as University of California, Berkeley and industrial research at organizations like General Electric and Atomic Energy Commission. Interest surged with advances in semiconductor scaling at companies including Intel Corporation and Texas Instruments, and with materials research at national labs such as Oak Ridge National Laboratory and Lawrence Berkeley National Laboratory.

Structure and Physical Properties

HfO2 crystallizes in several polymorphs: monoclinic (stable at ambient conditions), tetragonal, and cubic phases that appear at elevated temperatures or when stabilized by dopants. The monoclinic form has a high density and a wide band gap (~5.3–5.8 eV), making it transparent in visible wavelengths and useful in optics. Its high dielectric constant (~20–25, depending on phase and microstructure) contrasts with silicon dioxide and drove adoption in gate dielectrics for CMOS devices developed by Intel Corporation and explored in collaborations with IBM and Samsung Electronics. Thermal expansion, refractive index, and hardness are comparable to other refractory oxides studied at research centers such as Max Planck Institute for Solid State Research and National Institute of Standards and Technology.

Synthesis and Preparation

HfO2 is produced by oxidizing hafnium metal or by hydrolysis and calcination of hafnium salts such as hafnium chloride and hafnium alkoxides. Common laboratory and industrial routes include precipitation from aqueous solutions at facilities like DuPont and Dow Chemical Company followed by thermal treatment, and chemical vapor deposition methods favored in semiconductor fabs operated by TSMC and GlobalFoundries. Atomic layer deposition (ALD), pioneered in part by researchers at University of Helsinki and companies like ASM International, enables conformal thin films on substrates such as silicon wafers used in integrated circuits. Sol–gel processes, sputtering at centers like Lawrence Livermore National Laboratory, and molecular beam epitaxy at university laboratories also produce tailored morphologies and doped variants stabilized by elements such as yttrium, lanthanum, and aluminum.

Applications and Uses

HfO2 is critical in microelectronics as a high-k dielectric replacing silicon dioxide in advanced metal–oxide–semiconductor field‑effect transistors (MOSFETs) and dynamic random‑access memory (DRAM) studied by Intel Corporation, Samsung, and Micron Technology. It is used in optical coatings, lenses, and waveguides in photonics developed at institutions like Bell Labs and École Polytechnique Fédérale de Lausanne. In nuclear technology, hafnium compounds and HfO2 have roles in control rod research linked to agencies such as the International Atomic Energy Agency and reactors designed by Westinghouse Electric Company. The material appears in corrosion‑resistant thermal barrier coatings evaluated by NASA and Rolls-Royce for turbine engines, in resistive random‑access memory (ReRAM) investigated at HP Labs and Riken, and in catalysts and sensor substrates explored by researchers at California Institute of Technology and Massachusetts Institute of Technology.

Chemical Reactivity and Stability

HfO2 is chemically inert toward most acids and bases at ambient temperature, exhibiting corrosion resistance exploited in chemical processing equipment at companies such as BASF and Baker Hughes. It is thermally stable to very high temperatures and resists reduction except under strongly reducing conditions—properties studied by scientists at Argonne National Laboratory and Pacific Northwest National Laboratory. The surface chemistry can be modified by oxygen vacancies, dopants, and defect engineering, influencing electrical properties relevant to work at IMEC and Semiconductor Research Corporation. Interaction with water is negligible; however, surface hydroxylation can occur during wet processing in fabs like those operated by Intel Corporation and TSMC, affecting dielectric performance.

Safety and Handling

HfO2 is generally considered low in acute toxicity, but handling fine powders requires dust control measures consistent with guidance from Occupational Safety and Health Administration and National Institute for Occupational Safety and Health. Manufacturing and research practices at facilities such as 3M and university laboratories follow protocols for particulate control, ventilation, and personal protective equipment to minimize inhalation and skin exposure. Waste management and recycling of hafnium-bearing materials intersect with regulations enforced by agencies like the Environmental Protection Agency and are considered in lifecycle assessments by organizations such as the International Organization for Standardization.
