Zipingpu Dam
Generated by GPT-5-miniExpansion Funnel Raw 51 → Dedup 0 → NER 0 → Enqueued 0
| Zipingpu Dam | |
|---|---|
 | |
| Name | Zipingpu Dam |
| Location | Dujiangyan, Sichuan, China |
| Coordinates | 31°1′N 103°37′E |
| Status | Operational |
| Construction began | 2001 |
| Opening | 2006 |
| Dam type | Concrete face rock-fill dam |
| Height | 156 m |
| Length | 610 m |
| Volume | 8,700,000 m3 |
| River | Min River |
| Reservoir capacity | 1,120,000,000 m3 |
| Plant capacity | 760 MW |
| Plant commission | 2006 |

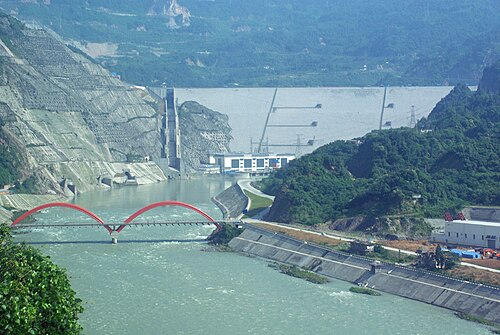

Zipingpu Dam is a large concrete-face rock-fill dam on the Min River (Sichuan), near Dujiangyan, in Sichuan province, China. Completed in 2006, it provides flood control, irrigation storage, and hydroelectric power to the Chengdu region. The project became internationally notable after the 2008 Sichuan earthquake, sparking debates involving seismic risk assessment, earthquake engineering, and hydropower policy in People's Republic of China infrastructure planning.
Background and construction
The dam project originated from provincial and national development plans involving the Chinese Ministry of Water Resources, Sichuan Provincial People's Government, and state-owned enterprises such as China Three Gorges Corporation and Hydropower Engineering Consulting Group. Detailed design work engaged international consultancies and domestic firms during the late 1990s and early 2000s amid rapid urbanization and industrial growth in Chengdu and the Sichuan Basin. Construction began in 2001 under contractors from the China Gezhouba Group Corporation and other large builders, with financing from state banks including the China Development Bank and policy directives from National Development and Reform Commission (China). Environmental impact assessments and land acquisition involved local authorities in Dujiangyan City and communities along the Min River.
Design and specifications
The structure is a 156-meter-high concrete-face rock-fill dam with a crest length of approximately 610 meters, designed to impound a reservoir of about 1.12 billion cubic meters. The dam's zoned-rock fill used materials sourced from nearby quarries managed under contractors such as Sinohydro and China National Petroleum Corporation-linked suppliers. Key design elements included a concrete slab facing, drainage blankets, and a spillway capacity sized for the Min River flood regime. Hydraulic machinery, turbines, and generators were supplied by manufacturers including Harbin Electric and Dongfang Electric, with electrical integration into the State Grid Corporation of China transmission network supplying Sichuan Electric Power Grid loads.
Reservoir and hydrology
The reservoir inundated sections of the Min River valley upstream of Dujiangyan, altering seasonal runoff patterns affecting the Chengdu Plain irrigation systems linked historically to the ancient Dujiangyan Irrigation System. The impoundment modifies sediment transport from tributaries in the Qionglai Mountains and affects downstream flow into the Yangtze River basin. Hydrological monitoring coordinated with agencies like the Ministry of Water Resources and the Chinese Academy of Sciences aimed to track inflow, reservoir stratification, and sedimentation rates, while reservoir operation schedules considered flood control for downstream cities including Chengdu and Mianyang.
Power generation and operations
The Zipingpu hydroelectric plant has an installed capacity of about 760 MW, employing multiple Francis turbines to deliver peak and base-load generation to support growing demand from industrial centers such as Chengdu Hi-Tech Industrial Development Zone and regional grids operated by the State Grid Corporation of China. Plant operations were integrated with regional dispatch centers and coordinated with other reservoirs like Longxi Reservoir and cascade projects on the Min River. Revenue and grid stability considerations involved the National Energy Administration and provincial electric power bureaus.
Environmental and social impacts
Reservoir creation required resettlement of inhabitants from villages submerged in the valley, involving policies from the Ministry of Civil Affairs (China) and local governments in Dujiangyan. Resettlement programs, compensation frameworks, and livelihood restoration plans prompted involvement from non-governmental researchers at institutions such as the Chinese Academy of Social Sciences and international observers from World Bank-linked studies on displacement impacts. Ecological effects included habitat loss for riparian species, changes in fish migration affecting populations studied by the Chinese Academy of Fishery Sciences, and landscape alteration in areas of cultural heritage linked to Dujiangyan and nearby historical sites.
2008 Sichuan earthquake and structural effects
The 2008 Sichuan earthquake, a magnitude 7.9 event with epicenter near Wenchuan County, produced intense ground shaking across the region including the dam site. Seismologists from institutions such as the Institute of Geology, China Earthquake Administration and international teams including researchers from California Institute of Technology, Massachusetts Institute of Technology, and Imperial College London examined correlations between reservoir-induced stresses and seismicity. The dam sustained damage including cracking and slope instabilities; the reservoir experienced seiche waves and rapid drawdown operations were implemented under guidance from the Ministry of Water Resources and emergency management agencies to reduce risk to downstream communities including Dujiangyan and Chengdu.
Safety, monitoring, and post-earthquake remediation
Following the earthquake, extensive inspections by engineering teams from Chinese Academy of Engineering, domestic contractors, and international reviewers assessed concrete face integrity, seepage, and foundation conditions. Monitoring systems were upgraded with instrumentation from suppliers linked to Beijing Institute of Water Machinery and remote sensing collaborations involving Institute of Remote Sensing and Digital Earth (CAS). Remediation works included slope stabilization, remediation grouting, and reinforcement of drainage systems; emergency operation protocols were revised with influence from standards such as those promoted by International Commission on Large Dams (ICOLD). Ongoing monitoring continues to inform reservoir management, seismic hazard reassessment, and policy discussions among National Energy Administration, provincial planners, and international disaster risk reduction networks.
