YM2151

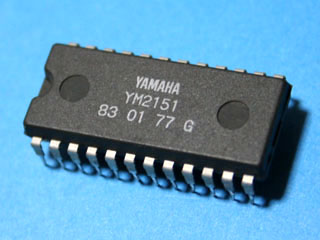

YM2151
Baz1521 at Japanese Wikipedia · CC BY-SA 3.0 · source
Name	YM2151
Developer	Yamaha Corporation
Introduced	1984
Type	FM synthesis chip
Successor	YM2612
Clocks	3.5–4 MHz typical
Channels	8-channel FM
Operators	4-operator per channel
Data bus	8-bit

YM2151

The YM2151 is an eight-channel, four-operator frequency modulation (FM) sound chip developed by Yamaha Corporation and introduced in 1984. It served as a dedicated tone generator in arcade machines and synthesizers during the 1980s, competing with devices from Texas Instruments, General Instrument, and MOS Technology. The chip became notable for its use in cabinets from manufacturers such as Capcom, Sega, Konami, and Namco, and for its presence in instruments by Yamaha and third-party module makers.

Overview

The YM2151 implemented four-operator FM synthesis across eight simultaneous channels, providing polyphony and timbral complexity used in arcade audio and professional keyboards. Its architecture was derived from Yamaha's earlier work on the YM2203 and the larger-family FM designs created for the DX7 series, linking it to instruments like the Yamaha DX7II and modules used by artists such as Brian Eno and Vangelis. The chip's compact footprint and efficient register set made it attractive to manufacturers including Atari Games, Capcom, Irem, Toaplan, and Namco for embedded sound systems.

Architecture and Features

Internally, the YM2151 contained operator algorithms, envelope generators, phase modulators, and a low-frequency oscillator (LFO). Each of its eight channels used four operators arranged in selectable algorithms to produce complex spectra, an approach related to the architecture of the Yamaha DX7 voice. The chip offered programmable parameters for attack, decay, sustain, release (ADSR), modulation depth, detune, feedback, and LFO routing. It supported key scaling and total level control per operator, and a hardware low-frequency oscillator that could be assigned to amplitude or phase modulation. The YM2151 produced analog outputs that were typically mixed and filtered externally in arcade audio paths used by companies like Sega and Capcom, and its digital control interface allowed host CPUs such as the Zilog Z80, Motorola 68000, and Intel 8086 to program tones and sequences.

Implementation and Use in Hardware

Arcade system boards integrated the YM2151 alongside sample playback chips, rhythm ICs, and custom I/O controllers. Notable platforms employing the YM2151 include arcade boards by Konami, Capcom, Namco, Sega, Taito, and Irem, where it was often paired with PCM chips like the M6295 and sound controllers driven by CPUs such as the Zilog Z80 or Motorola 68000. Home and studio instruments also incorporated the chip into sound modules and expansion cards for workstations by firms like Roland and module builders leveraging Yamaha synthesis designs. Physical implementations required attention to analog output filtering, power supply decoupling, and clocking; typical clock rates were in the 3–4 MHz range with external crystal oscillators used in arcade cabinets and synthesizer modules.

Software and Programming Model

The YM2151 is programmed via an 8-bit register interface controlled by a host CPU, with distinct address and data ports for register selection and data writing. The register map exposed operator parameters, channel algorithm selection, frequency number and block (for pitch), key-on/key-off controls, and global LFO settings. Sound programmers in arcade and instrument firmware authored patches by writing envelopes, operator levels, detune, and routing into the registers, creating tones ranging from percussive basses to evolving pads. Toolchains and editors developed by third parties allowed sound designers in studios and arcades to build patch banks; these workflows were influenced by editorial techniques used for the Yamaha DX7 and similar FM synths, and by sequencing environments like those on Atari ST and Commodore Amiga used by sound designers in the 1980s.

Notable Applications and Game Uses

The YM2151 was widely used in mid-1980s to early-1990s arcade titles and pinball machines. Game developers such as Capcom employed it in soundtracks, while Konami used it on multiple boards for signature game audio. Titles by Irem and Taito also featured the chip, often blended with PCM samples from the OKI M6295 or in-house sample ROMs. Pinball manufacturers like Bally and Williams used FM chips in various tables for background music and effects. Beyond games, the YM2151 appeared in sound modules and expansion cards used with workstations from Roland and hobbyist projects on platforms like the Commodore 64 via adapter hardware, influencing the audible character of arcade-era soundtracks credited to composers such as Hiroshi Kawaguchi and Yuzo Koshiro.

Legacy and Influence on Later Chips

The YM2151 influenced subsequent Yamaha designs and arcade sound architectures, informing the development of successors like the YM2612 and larger FM arrays used in consoles and synthesizers. Its tonal character and programming idioms carried into chips used by Sega in the Genesis/Mega Drive era and into module designs adopted by third-party audio manufacturers. Preservation efforts by retro computing communities, emulator projects for platforms such as MAME, and hardware reproduction initiatives have kept YM2151-era sounds accessible to researchers and enthusiasts. The chip's role in the evolution of arcade and synthesizer sound contributed to the broader adoption of FM synthesis in commercial music production and game audio during the late twentieth century.
