YF-23

YF-23
SDASM Archives · No restrictions · source
Name	YF-23

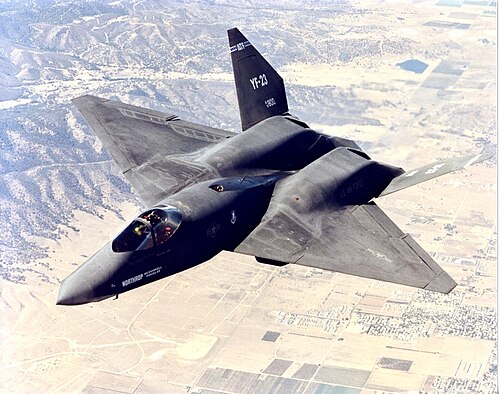

Caption	Northrop/McDonnell Douglas YF-23 demonstrator
Type	Prototype stealth fighter
Manufacturer	Northrop, McDonnell Douglas
First flight	1990
Status	Prototype only
Primary user	United States Air Force (evaluation)

YF-23 The YF-23 was a prototype stealth fighter demonstrator developed during the late Cold War era by Northrop in partnership with McDonnell Douglas for the United States Air Force Advanced Tactical Fighter competition. The aircraft competed directly with the Lockheed YF-22 offering divergent approaches to stealth, speed, and maneuverability intended to replace the General Dynamics F-16 Fighting Falcon, McDonnell Douglas F-15 Eagle in air superiority roles. Two demonstrators were built to validate innovations in stealth shaping, propulsion integration, and signature reduction against evolving threats from Soviet Union and Warsaw Pact air defenses.

Development

Northrop's YF-23 program emerged amid the Advanced Tactical Fighter (ATF) initiative managed by the United States Air Force during the 1980s and early 1990s. The ATF contest awarded contracts to Northrop/McDonnell Douglas and Lockheed/General Dynamics, leading to parallel demonstrator efforts intended to supplant legacy platforms such as the F-15 Eagle and F-16 Fighting Falcon. Key industrial players and subcontractors included Northrop Corporation, McDonnell Douglas, Pratt & Whitney, and other aerospace firms contributing stealth materials and avionics. The YF-23's development was influenced by strategic imperatives from Secretary of the Air Force leadership and operational requirements shaped by planners from Air Combat Command and the Office of the Secretary of Defense. Testing and evaluation phases involved coordination with facilities at Edwards Air Force Base and support from personnel formerly experienced with programs like the F-117 Nighthawk and B-2 Spirit.

Design

The YF-23 featured a tailless diamond-shaped wing and twin outward-canted vertical stabilizers, reflecting an emphasis on passive stealth and aerodynamic efficiency rather than thrust-vectoring maneuverability. Its configuration incorporated blended fuselage and wing surfaces drawing on concepts validated by earlier stealth projects such as the Have Blue demonstrator and lessons from Lockheed Skunk Works research. Propulsion options evaluated included variants of engines produced by General Electric and Pratt & Whitney, with intended production powerplants to parallel those planned for ATF operational fighters. The airframe used advanced composite materials and radar-absorbent treatments developed in coordination with defense contractors and testing laboratories like Sandia National Laboratories and Arnold Engineering Development Complex. Cockpit and sensor integration drew on avionics architectures influenced by programs in the Defense Advanced Research Projects Agency and used data-link concepts compatible with systems fielded on platforms such as the F-22 Raptor and F-35 Lightning II.

Flight Testing

Flight testing of the two YF-23 prototypes took place at Edwards Air Force Base and involved profiles designed to evaluate high-speed dash, high-altitude performance, low-observable characteristics, and handling qualities across regimes. Test pilots and evaluation teams included veterans from programs like the F-16 and F-15 test communities, with instrumentation suites provided by contractors linked to Northrop and McDonnell Douglas engineering groups. The demonstrators achieved notable flight envelopes, completing transonic and supersonic sorties while collecting signature data against measurement systems used by evaluation agencies such as the National Aeronautics and Space Administration and Defense Science Board advisors. Comparative assessment against the Lockheed YF-22 prototypes was conducted under procurement oversight from the Office of the Secretary of Defense and panels staffed by representatives from Air Force Materiel Command.

Stealth and Performance Features

Stealth features on the YF-23 emphasized passive shaping, reduced radar cross-section, and infrared signature suppression through inlet and exhaust design choices informed by modeling from laboratories like Lawrence Livermore National Laboratory and MIT Lincoln Laboratory. The airframe’s planform reduced frontal and side-aspect returns similar to techniques used on the B-2 Spirit while incorporating high-speed cruise capacity evocative of concepts developed for the MiG-31 interceptors and contemporary supersonic designs. Engine intake geometry and exhaust shielding were engineered to mitigate detection by advanced radar networks developed by potential adversaries such as the Soviet Union and successor states. Aerodynamically, the YF-23 balanced high-speed dash capability and stability without sacrificing stealth, leveraging control surface distributions and fly-by-wire systems akin to those refined on programs like the F-16 Fighting Falcon and YF-22 competitor.

Operational Evaluation and Legacy

Although the YF-23 lost the ATF contract to the Lockheed Martin-led YF-22, its demonstrators significantly influenced stealth aviation, materials science, and aerodynamic design philosophies adopted in later programs. Technologies and lessons from the YF-23 informed aspects of the F-22 Raptor development and contributed to research archived by institutions including National Museum of the United States Air Force and Smithsonian National Air and Space Museum. Industrial consolidation trends involving Northrop Grumman and McDonnell Douglas—and later mergers—trace part of their advanced project heritage to efforts represented by the YF-23 effort. The prototype program remains a focal point in studies comparing alternative stealth design trade-offs, cited in analyses produced by RAND Corporation, Aerospace Corporation, and academic centers at Massachusetts Institute of Technology, Stanford University, and Georgia Institute of Technology.
