XM982 Excalibur

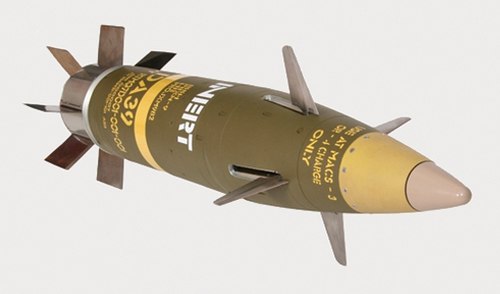

XM982 Excalibur
United States Army · Public domain · source
Name	XM982 Excalibur
Origin	United States
Type	Guided artillery projectile
Service	2007–present
Used by	United States Army, United States Marine Corps, Royal Danish Army, Australian Army, Canadian Army
Designer	Raytheon and BAE Systems
Design date	1990s–2000s
Manufacturer	Raytheon; BAE Systems
Unit cost	approximate per round (varies)
Weight	~50 kg
Length	~1.0 m
Diameter	155 mm
Cartridge	155×52mm
Caliber	155 mm
Range	up to 40 km (standard), extended variants greater
Guidance	GPS/INS with course-correction

XM982 Excalibur

XM982 Excalibur is a precision-guided 155 mm artillery projectile developed for long-range, low-collateral effects fires. The round was created to improve accuracy for United States Army and allied indirect fires missions, reducing reliance on multiple-area-fire barrages and minimizing unintended damage in complex environments. Excalibur integrates navigational avionics, control surfaces, and a fuzing suite to deliver consistent circular error probable performance against point targets from M777 howitzer, M109 Paladin, and NATO-standard guns.

Development

The Excalibur program originated in cooperative efforts between United States Army, United States Navy, and industry during the late 1990s and early 2000s to address limitations revealed during the Gulf War and Iraq War. Early research involved partnerships with Defense Advanced Research Projects Agency and contractors such as Raytheon and BAE Systems, leveraging technology pathways established by programs like XM395 Precision Guided Mortar Munition and concepts from the Precision Guided Mortar Munition (PGMM) lineage. Milestones included guided-bomb avionics miniaturization programs and validation tests at ranges involving ranges at Yuma Proving Ground and live-fire events with units of I Marine Expeditionary Force and 1st Infantry Division. Production contracts and fielding accelerated after demonstration successes during counterinsurgency operations in Iraq and later missions in Afghanistan.

Design and Specifications

Excalibur is a 155 mm, 52-caliber class projectile approximately 1 meter long and weighing around 50 kilograms, compatible with NATO-standard 155×52mm chambers. Its airframe integrates folding canards and a tail assembly derived from submunitions and precision-attack programs, enabling autonomous maneuvering during terminal flight. The projectile houses a multi-mode warhead and an insensitive munitions-compliant bursting charge, with fuzes allowing point-detonation, delayed-burst, and airburst effects for versatility against personnel, light vehicles, and fortifications. Propulsion relies on conventional artillery propellant charges; range performance is a function of propellant, gun tube length, and meteorological conditions. The projectile was designed to meet survivability and safety specifications defined by Department of Defense testing authorities and underwent qualification testing at facilities such as Aberdeen Proving Ground.

Guidance and Targeting

Guidance is provided by an integrated inertial navigation system (INS) paired with a global navigation satellite system receiver (GNSS), predominantly GPS, augmented by course-correction algorithms. The onboard computer interprets target coordinates provided by forward observers, fire-support teams, or networked sensors such as Joint Fires Observer elements, AN/TPQ-36 Firefinder radar data, and targeting feeds from platforms like MQ-9 Reaper and E-8 Joint STARS. Mid-course updates are achievable through two-way data-links in some variants, and anti-jam resilience is enhanced by encryption and selective availability anti-spoofing techniques derived from military GPS modernization efforts. Circular error probable (CEP) for initial production rounds was claimed in the order of 4–10 meters under favorable conditions, enabling single-round target effects.

Operational History

Excalibur entered service in limited numbers in the mid-2000s and saw broader deployment during operations in Iraq War and Afghanistan. Units from United States Marine Corps and United States Army employed Excalibur to reduce collateral damage in urban and complex terrain, supporting missions alongside aviation assets such as AH-64 Apache and F-15E Strike Eagle. NATO and allied contingents, including forces from Denmark, Australia, and Canada, have used Excalibur during multinational exercises and contingency operations. Notable use cases include precision interdiction of fortified positions and reduction of friendly force exposure during counter-fire operations. After-action reports and doctrinal analyses by institutions like United States Army War College influenced tactics, techniques, and procedures for integrating precision artillery into combined arms operations.

Variants

Multiple evolutions include baseline Excalibur Block I, Block II with improved fuze and guidance robustness, and extended-range versions employing glide-enhancing tails or base bleed technologies influenced by earlier research such as Extended Range GMLRS concepts. Naval adaptations and compatibility efforts addressed employment from shipboard 155 mm guns and littoral platforms. Industry-led proposals have considered modular warheads, data-link upgrades, and integration with navigation sources such as Galileo and GLONASS to enhance redundancy and coalition interoperability.

Operators and Deployment

Primary operators include the United States Army and United States Marine Corps, with allied procurement by Royal Danish Army, Australian Defence Force, and Canadian Army among others. Deployment platforms encompass towed and self-propelled 155 mm systems such as M777 howitzer, M109 Paladin, and NATO-compatible artillery. Logistics, training, and sustainment were coordinated through national procurement agencies and program offices like Program Executive Office, Ammunition and multinational supply chains managed by contractors such as Raytheon and BAE Systems.

Legal, Ethics, and Cost Considerations

Excalibur's precision capabilities have been cited in policy discussions led by bodies such as United Nations special study groups and legal analyses from organizations like International Committee of the Red Cross concerning proportionality and distinction in armed conflict. Ethical debates by scholars at Harvard University, Georgetown University, and King's College London addressed how precision munitions affect rules of engagement and civilian protection. Cost-per-round considerations influenced procurement debates in national legislatures including the United States Congress and parliaments of allied states, juxtaposing increased unit cost against reduced collateral damage, decreased sortie rates for air assets, and savings through avoided escalation and reconstruction. Operational doctrines and export controls adhere to frameworks from Arms Trade Treaty signatories and national acquisition rules.
