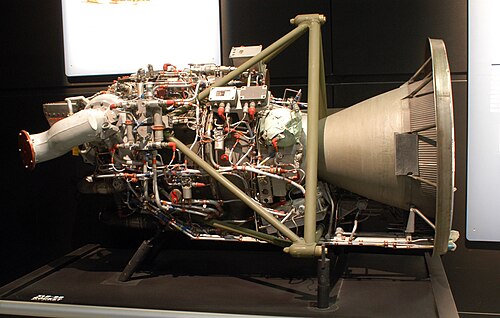

XLR99

XLR99
Public domain · source
Name	XLR99
Country	United States
Manufacturer	Reaction Motors, North American Aviation
First	1959
Last	1970s
Status	Retired
Type	Liquid-fuel rocket engine
Oxidiser	liquid oxygen
Fuel	RP-1/hydrogen peroxide (used in some testbeds)
Cycle	Gas-generator
Thrust vac	57,000 lbf (254 kN)
Isp vac	279 s
Chamber pressure	1,000 psi

XLR99

The XLR99 was a pioneering throttleable, restartable, liquid-propellant rocket engine developed in the late 1950s and used in high-performance experimental aircraft programs. It powered the North American X-15 hypersonic research rocketplane and played a critical role in record-setting flights that informed later spaceplane and reentry research. The engine combined high thrust, variable throttle capability, and multiple restarts to meet the demands of hypersonic flight testing conducted by NASA, the United States Air Force, and industry partners.

Development

Development of the XLR99 began as part of propulsion programs involving Reaction Motors and North American Aviation to support the X-15 program under contracts from NACA and later NASA and the United States Air Force. Early stages drew on experience from rocket work on projects such as the Bell X-1 and the Douglas D-558. The development process involved ground test programs at facilities like the Eddie Rickenbacker Aeronautical Center and the California Institute of Technology-associated test sites, and coordination with flight test centers at Edwards Air Force Base and Dryden Flight Research Center. Engineers addressed challenges in propellant feed, cooling, and throttleable thrust, collaborating with specialists from Rocketdyne and drawing lessons from the liquid-rocket community fostered by entities such as Aerojet General.

Design and Specifications

The XLR99 featured a gas-generator cycle with regenerative cooling channels machined into the thrust chamber, leveraging metallurgical advances and high-temperature alloys developed by firms including General Electric and Westinghouse. Its turbopump assembly used turbomachinery expertise similar to that applied in engines produced by Pratt & Whitney and Allison Engine Company. Key specifications included about 57,000 lbf (254 kN) of vacuum thrust and a specific impulse near 279 seconds, achieved with liquid oxygen and RP-1 propellants. The engine was designed for deep throttling and multiple restarts, employing control systems influenced by avionics work at Honeywell and Collins Radio. Its chamber pressure approached 1,000 psi, enabled by engineering practices akin to those in Saturn I and Atlas (rocket family) propulsion. Structural integration into the X-15 airframe required collaboration with the airframe team at North American Aviation and flight instrumentation supplied by Bendix Corporation.

Operational History

Operational flights began in the late 1950s and continued through the 1960s with the X-15 program run from facilities including Edwards Air Force Base and operations coordinated by NASA programs. Pilots such as Neil Armstrong, John B. McKay, Joe Engle, and Pete Knight flew missions that used the XLR99 to attain record speeds and altitudes, contributing to datasets that later influenced Apollo Program planning and orbital reentry studies. The engine demonstrated throttleability and restart capability across numerous flights, although it experienced challenges leading to in-flight shutdowns and ground aborts that required investigation by teams with expertise from Sandia National Laboratories and Lawrence Livermore National Laboratory. Flight test results informed aerodynamic and thermal protection research conducted at Langley Research Center and Ames Research Center.

Applications and Variants

The principal application of the XLR99 was as the primary rocket motor for the North American X-15 research aircraft, but its development impacted other hypersonic and rocketplane concepts evaluated by NASA and the United States Air Force. Variants and experimental iterations explored alternate propellant combinations and turbopump improvements, reflecting technology trends seen in projects like the X-20 Dyna-Soar and various lifting body programs. Industrial partners including Reaction Motors and North American Aviation evaluated designs for use in proposed spaceplane concepts that interfaced with studies at Marshall Space Flight Center and Manned Spacecraft Center (later Johnson Space Center).

Performance and Legacy

Performance of the XLR99 enabled the X-15 to reach speeds above Mach 6 and altitudes exceeding 50 miles, producing aerodynamic and thermodynamic data used by teams at McDonnell Douglas and Boeing during early spacecraft design studies. The engine's throttleable, restartable design influenced later propulsion work for reusable vehicles and contributed to engine control philosophies adopted by entities such as SpaceX decades later. Engineering lessons on high-thrust, regeneratively cooled chambers and feed systems were incorporated into curricula at institutions like Massachusetts Institute of Technology, Stanford University, and University of Michigan, and into propulsion research at Lewis Research Center (now Glenn Research Center). The XLR99's operational record left a legacy within aerospace archives and museum collections including exhibits at Smithsonian National Air and Space Museum and at Edwards Air Force Base facilities, and it remains a touchstone in histories of hypersonic flight and early American rocketplane experimentation.
