Wright R-3350 Duplex-Cyclone

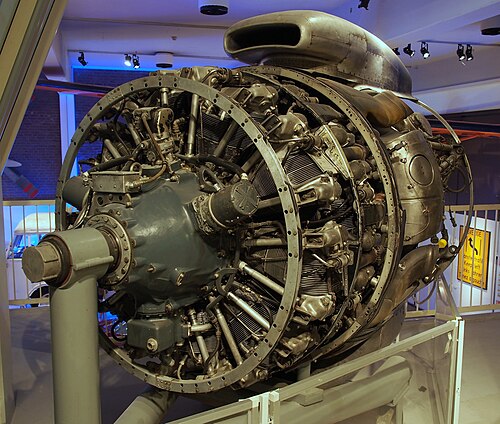

Wright R-3350 Duplex-Cyclone
Alf van Beem · CC0 · source
Name	Wright R-3350 Duplex-Cyclone
Type	Radial piston engine
Manufacturer	Wright Aeronautical / Curtiss-Wright
First run	1937
Status	Retired / limited use

Wright R-3350 Duplex-Cyclone is an American air-cooled, twin-row, 18-cylinder radial aircraft engine developed in the late 1930s and produced by Wright Aeronautical and later Curtiss-Wright. It became one of the most powerful and widely used piston aeroengines of World War II and the early Cold War era, powering long-range bombers, transport aircraft, and record-setting civil airliners. The engine's development, complex engineering, and operational record intersect with major aircraft programs and industrial efforts of the United States during and after World War II.

Development

Development began at Wright Aeronautical in the mid-1930s as part of a competitive effort among American firms including Pratt & Whitney, Allison Engine Company, and European designers such as Bristol Aeroplane Company seeking high-power radial engines for strategic bombers. Initial ambitions were influenced by foreign advances exemplified by BMW and Gnome et Rhône designs, while U.S. military requirements from United States Army Air Corps planners for aircraft like the B-17 Flying Fortress successor drove refinement. The prototype R-3350 first ran in 1937 and underwent iterative redesigns in response to feedback from trials with Theodore von Kármán-era research at the California Institute of Technology and aerodynamic input from engineers associated with the National Advisory Committee for Aeronautics.

Industrial expansion at the Curtiss-Wright Corporation after the 1929 merger and later wartime consolidation shaped production scale-up. Flight testing with prototype airframes such as those from Douglas Aircraft Company and Consolidated Aircraft revealed cooling and reliability challenges; these were addressed via collaboration with metallurgists from Carnegie Mellon University-affiliated teams and manufacturing process improvements influenced by Henry J. Kaiser-style mass production techniques. Government oversight by the War Production Board and procurement from Boeing and Lockheed ensured prioritization of the R-3350 for strategic projects.

Design and technical description

The R-3350 is an 18-cylinder, two-row, air-cooled radial with a displacement of 3,350 cubic inches, featuring a single-stage, two-speed supercharger in many variants and, later, turbo-compounding in postwar models. The engine employed forged steel crankshafts and aluminum alloy crankcases developed with input from U.S. Steel and the National Bureau of Standards. Cylinder heads used chrome-molybdenum steels and high-strength alloys pioneered at Massachusetts Institute of Technology laboratories. Lubrication systems were enhanced with pressure-feed and scavenging pumps influenced by practices from Rolls-Royce research partnerships, while carburetion and fuel injection options were informed by studies at Stanford University.

Thermal management improvements drew upon work at the Langley Research Center and applied baffle designs common to large radial engines. Later turbo-compound versions captured turbine energy from exhaust via power recovery turbines developed with expertise linked to General Electric gas turbine programs. Propeller reduction gearing permitted efficient matching to large-diameter propellers used on aircraft by Boeing and Douglas, and accessory drives interfaced with aircraft electrical and hydraulic systems specified by United States Navy and United States Army Air Forces standards.

Operational history

The R-3350 entered widespread operational use during World War II, most notably in the B-29 Superfortress strategic bomber employed in the Pacific War and in long-range patrol aircraft used by United States Navy squadrons. Early wartime operations revealed significant overheating and engine-failure issues in tropical conditions, prompting retrofits, improved cooling cowlings, and maintenance protocols developed within Army Air Forces Materiel Command. High-profile service included use on Enola Gay-class aircraft during missions related to Operation Centerboard and postwar deployment in Strategic Air Command-associated platforms.

Postwar, turbo-compounded R-3350 variants powered civil airliners such as the Lockheed Constellation and Douglas DC-7, contributing to transoceanic commercial route expansion by airlines like Pan American World Airways and Trans World Airlines. Reliability gains through heavier overhaul cycles, enhanced metallurgy, and lessons from programs at Pratt & Whitney reduced operational losses, though turbine and postwar jet engine development at Rolls-Royce and General Electric eventually eclipsed piston-driven large radials in performance and economy.

Variants

Numerous R-3350 variants were produced to meet military and civil requirements, including early single-stage supercharged versions, dual-stage supercharged military models, and postwar turbo-compound types with power recovery turbines. Major variant families were designated by Wright and Curtiss-Wright and saw incremental power increases, accessory rearrangements for specific aircraft installations at firms such as Convair and Martin, and adaptations for naval use in patrol aircraft by Lockheed and Consolidated-Vultee. Experimental conversions tested turbocharging and fuel-injection systems developed with engineering teams from Honeywell and Sunstrand.

Applications

The R-3350 powered a wide array of aircraft produced by leading American manufacturers: strategic and transport types from Boeing, long-range airliners by Lockheed (notably the Lockheed L-1049 Super Constellation), piston-engined transports by Douglas Aircraft Company and Convair, and maritime patrol aircraft by Consolidated Aircraft. It also equipped specialized prototypes and record-attempt aircraft associated with companies like Northrop and government-sponsored research platforms linked to NACA facilities and the Arctic Institute of North America for cold-climate testing.

Performance and specifications

Typical power ratings ranged from approximately 1,800 to over 3,700 horsepower depending on variant and boost settings, with turbo-compounded models recovering additional shaft horsepower via exhaust turbines. Displacement is 3,350 cubic inches; 18 cylinders in two rows; typical dry weight and dimensions varied by submodel to accommodate installations in aircraft from Boeing heavy bombers to Lockheed airliners. Performance envelopes included high-altitude supercharged operation tailored to B-29 strategic requirements and cruise capabilities used by Pan American World Airways on transatlantic and transpacific services. Exact figures for specific subvariants align with airframe installation particulars and service-rating practices used by Curtiss-Wright and military procurement specifications.
