Woodhead Line

Woodhead Line
Kevin Cooke · CC BY-SA 3.0 · source
Name	Woodhead Line

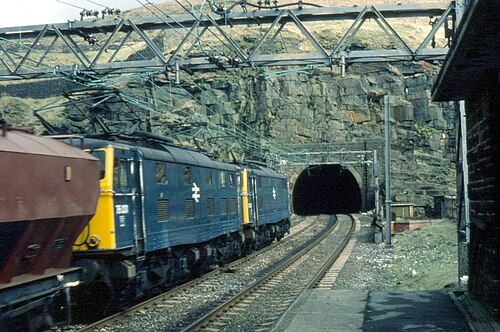

Caption	Eastern portal of the Woodhead Tunnel near Sheffield
Locale	Greater Manchester, Derbyshire, South Yorkshire
Start	Manchester Piccadilly
End	Sheffield railway station
Open	1845
Close	1981 (passenger services earlier)
Owner	British Rail
Gauge	Standard gauge
Electrification	1500 V DC (1954–1981)
Tunnels	Woodhead Tunnel (three tunnels at different periods)

Woodhead Line

The Woodhead Line was a major inter-city and freight railway connecting Manchester and Sheffield across the Pennines in northern England. Built by the Great Central Railway and predecessor companies, it became notable for the Woodhead Tunnel complex, pioneering electrification schemes, and heavy industrial freight traffic serving the Lancashire and Yorkshire coalfields and steelworks. The route influenced regional transport policies involving British Rail and figures such as Richard Beeching during mid-20th century railway rationalisation.

History

Construction began in the 1840s under the aegis of the Sheffield, Ashton-under-Lyne and Manchester Railway and later the Manchester, Sheffield and Lincolnshire Railway, reflecting the Victorian expansion of rail networks tied to the Industrial Revolution. The original Woodhead Tunnel opened in 1845, later joined by a second and third bore during enlargement projects undertaken by the Great Central Railway and interwar improvements. During the early 20th century the line was absorbed into the London and North Eastern Railway at the 1923 grouping and subsequently nationalised into British Railways in 1948. Post-war debates about trunk routes, freight prioritisation and the 1963 Beeching Report shaped the line’s future, culminating in phased closures of local passenger stations in the 1950s–1970s and the eventual cessation of through passenger services in 1970, with final freight operations ending in 1981.

Route and Infrastructure

The alignment ran from Manchester Piccadilly via Guide Bridge, Hadfield, and across the Woodhead Pass to Penistone and Sheffield Victoria, traversing challenging topography that necessitated major civil engineering works. The Woodhead Tunnel complex pierced the Pennine escarpment near Dunford Bridge, while viaducts and cuttings crossed the River Don and tributaries feeding into the Rotherham catchment. Stations and yards such as Hathersage, Stocksbridge, and Dore supported mixed traffic; major goods facilities included sidings serving Dalton Works and steelworks around Rotherham and Sheffield like Steel, Peech and Tozer and Sheffield Steel Company. Signalling evolved from mechanical Great Western Railway-style lever frames to more centralized panels under British Transport Commission modernisation programmes.

Operations and Services

The line carried a blend of express passenger services linking Manchester and Sheffield with onward connections to London St Pancras via the Great Central Railway mainline, as well as intensive coal and steel freight trains bound for Clydeside and West Midlands foundries. Multiple railway companies operated over the route historically, including the Lancashire and Yorkshire Railway and the Midland Railway in joint running arrangements. During the 1950s and 1960s timetables featured diesel multiple units, steam loco-hauled expresses, and later electric multiple units following electrification. Freight operations prioritised block trains of coal and heavy mineral wagons; marshalling yards at Guide Bridge and Penistone coordinated transfers to local tramways and industrial spurs connecting to works such as Hadfield Steelworks and Ryecroft.

Electrification and Technical Innovations

The Woodhead route became a testbed for mid-20th century electrification, with the 1954 completion of a 1500 V DC overhead system under British Railways' modernisation plan, part of experimentation alongside schemes like the Southern Region third-rail network and continental DC systems. Electric locomotives including the prototype British Rail Class 76 (EM1) and British Rail Class 77 (EM2) were introduced to handle steep gradients through the tunnel complex; these types incorporated regenerative braking and high-adhesion bogies suited to heavy mineral trains. The three-bore tunnel arrangement—comprising the original bore, a widened second, and a later double-track bore—illustrated advances in tunnelling and ventilation, informed by earlier works such as the Standedge Tunnel and innovations from firms like R G Jones and contractors associated with the Metropolitan Railway era. Electrification also required upgraded substations and switching gear, supplied by industrial firms connected to the National Grid and influenced by international standards used on networks such as the Dutch Railways and Swiss Federal Railways.

Closure, Legacy and Preservation

Decline followed changing industrial patterns, national transport policy, and operational costs of maintaining the tunnel and DC system. The Woodhead route was a casualty of controversial rationalisations advocated by figures linked to the Beeching cuts, with through passenger services withdrawn and the costly 1500 V DC system deemed incompatible with wider standardisation plans favoring 25 kV AC. Final freight services ceased in 1981 and the tunnels were mothballed. The corridor’s legacy persists in advocacy by heritage organisations such as the National Trust-adjacent groups and local societies campaigning for rail reopenings, with proposals considered by bodies including Transport for Greater Manchester and South Yorkshire Passenger Transport Executive. Parts of the alignment have been repurposed as walking and cycling routes similar to conversions of corridors like the Tissington Trail; heritage rolling stock, preserved Class 76 locomotives, and archives at institutions like the National Railway Museum and regional history centres sustain historical interest. Debate over reinstatement, electrification standards, and regional connectivity continues among politicians from Derbyshire County Council and Sheffield City Council and transport planners influenced by contemporary initiatives such as the Northern Powerhouse strategy.
