Vauclain compound

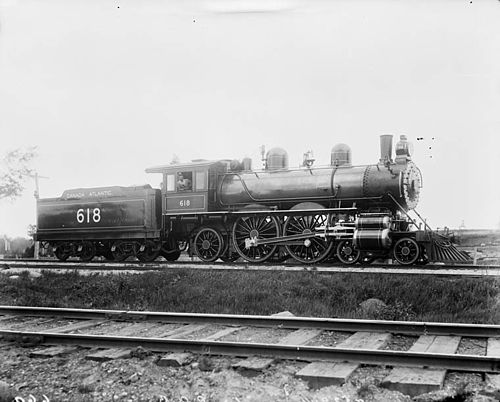

Vauclain compound
William James Topley · Public domain · source
Name	Vauclain compound
Powertype	Steam
Designer	Samuel M. Vauclain
Builder	Baldwin Locomotive Works
Builddate	1889–early 20th century
Wheelarrangement	Various (notably 4-4-0, 2-8-0, 4-6-0)
Disposition	Many scrapped; several preserved examples

Vauclain compound is a two-cylinder compound steam locomotive arrangement invented by Samuel M. Vauclain while at Baldwin Locomotive Works in the late 19th century. The design sought to improve thermal efficiency and power delivery by using a high-pressure and a low-pressure cylinder on each side driving a common crosshead, and it was widely adopted by railroads seeking increased economy and tractive effort during the Gilded Age, the Progressive Era, and early World War I railroad expansion. The Vauclain compound influenced locomotive practice across the United States, United Kingdom, France, and several British Empire and Latin America railways during the pre-World War II period.

History and development

Samuel M. Vauclain, chief engineer and later president of Baldwin Locomotive Works, developed the compound as part of a broader 19th-century search for thermal efficiency pursued by engineers associated with George Stephenson, Isambard Kingdom Brunel, Robert Stephenson, and later innovators like Andre Chapelon. Baldwin promoted the arrangement amid competition with ALCO, Montreal Locomotive Works, and European builders such as Société Alsacienne de Constructions Mécaniques and Krauss-Maffei. Early adopters included the Baltimore and Ohio Railroad, the Pennsylvania Railroad, the Atchison, Topeka and Santa Fe Railway, and export customers such as the Indian Railways and the Buenos Aires Great Southern Railway. The Vauclain system appeared contemporaneously with developments in compounding by Anatole Mallet and Warren experiments, and it was assessed in comparative trials involving names like Lima Locomotive Works and the Great Northern Railway.

Design and mechanical principles

The Vauclain compound used a paired high-pressure and low-pressure cylinder vertically aligned with a single connecting rod and common crosshead, a configuration distinct from Walschaerts and Stephenson valve gear arrangements used on many contemporaneous designs. Its intent echoed thermodynamic analysis by engineers studying work expansion stages referenced in the work of figures like Sadi Carnot and practical implementations by Heinrich von Borries. Baldwin incorporated cylinder casting, steam passages, and valve chests to allow exhaust from the high-pressure to feed the low-pressure cylinder on the same side, a layout that contrasted with tandem-compound and Mallet articulated approaches used by railways such as the Great Western Railway and the Prussian State Railways. The arrangement influenced running dynamics, piston thrust, and maintenance practices noted by railroad technical bureaus including those of the Southern Pacific Railroad and the New York Central Railroad.

Variations and manufacturers

While Baldwin was the principal manufacturer, the Vauclain concept was licensed and adapted by builders and railways worldwide including ALCO, Nasmyth, Gaskell and Company, and workshops of the Imperial Railways of Japan. Variations included different wheel arrangements like the 4-4-0 American type favored by the Union Pacific Railroad, the 2-8-0 Consolidation adopted by freight haulers such as the Erie Railroad, and the 4-6-0 ten-wheeler used by passenger roads like the Chicago and North Western Transportation Company. Some railways experimented with modified valve events and superheating, paralleling innovations by Daniel Gooch and later by H. M. Beatty, while others combined the Vauclain layout with feedwater heaters from suppliers tied to Westinghouse and General Electric technology programs.

Performance and operational use

Railroads using the Vauclain compound reported fuel and water savings in specific service profiles, particularly on long-haul freight and moderate-speed passenger runs operated by lines such as the Southern Railway (U.S.), Canadian Pacific Railway, and New Zealand Railways Department. However, actual efficiency gains varied by duty cycle, maintenance regime, and crew skill, with rival systems like Mallet compounds or simple-expansion locomotives from Lima sometimes outperforming the Vauclain type under heavy loads or poor maintenance. Operational assessments were made by technical committees including those influenced by engineers from Union Pacific and the Illinois Central Railroad and published in railroad trade periodicals circulated among organizations like the American Railway Engineering Association.

Maintenance and preservation

Maintenance crews on roads such as the B&O Railroad and the Santa Fe noted that the Vauclain compound's shared crosshead and paired cylinders simplified some adjustments but complicated cylinder repairs and valve timing compared with conventional two-cylinder designs used by the Great Northern Railway (U.S.) and European state railways. Workshops including Baldwin's erecting shops and railroad-owned facilities at Altoona Works handled routine overhauls, and later preservation projects involved museums like the National Railway Museum (York), the California State Railroad Museum, and heritage lines such as the Gettysburg Railroad. Preservationists and restorers drew on archival records from institutions like the Smithsonian Institution and technical libraries at Massachusetts Institute of Technology.

Notable examples and surviving locomotives

Surviving examples are preserved at museums and heritage railways worldwide, with notable survivors linked to roads like the Baltimore and Ohio Railroad Museum, the California State Railroad Museum, and the National Railroad Museum (Green Bay). Specific numbered units and prototypes appear in collections alongside other historic machines associated with names like Samuel M. Vauclain, Alexander J. Cassatt, and companies such as Baldwin Locomotive Works and ALCO. Enthusiast societies and institutions including the Railway and Locomotive Historical Society, the Heritage Railway Association, and regional preservation groups continue to document and interpret Vauclain examples for public education and heritage tourism.
